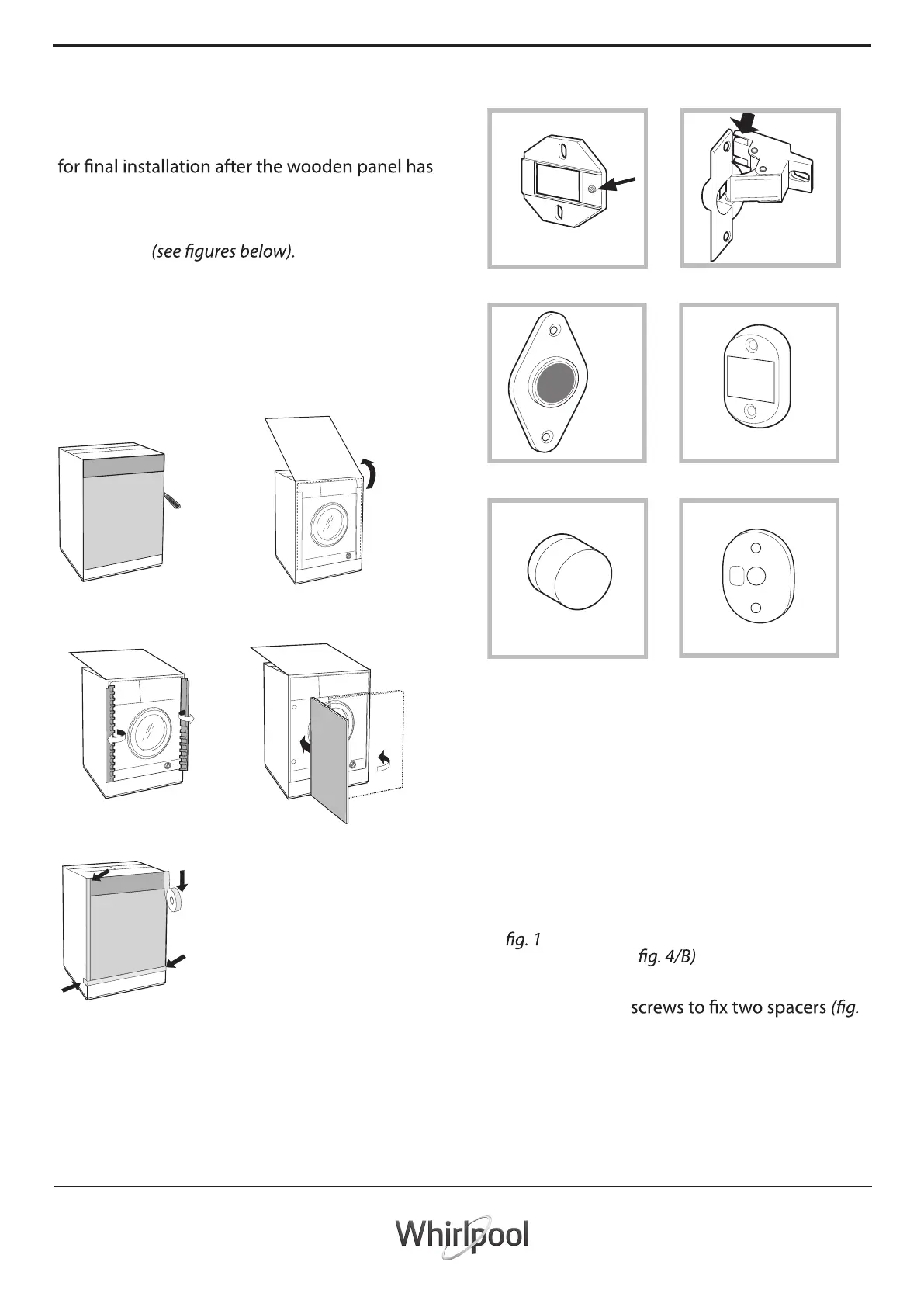

INSTRUCTIONS FOR THE FITTER
Mounting the wooden panel onto the door
and inserting the machine into cabinets:
In the case where the machine must be shipped
been mounted, we suggest leaving it in its
original packaging. The packaging was designed
to make it possible to mount the wooden panel
onto the machine without removing it
completely
The wooden panel that covers the face of the
machine must not be less than 13 mm in
thickness and can be hinged on either the right
or left. For the sake of practicality when using the
machine, we recommend that the panel be
hinged on the same side as the door for the
machine itself - the left.
Door Mounting Accessories (Fig. 1-2-3-4-5).
Fig. 1
N° 2 Hinges
N° 1 Magnet N° 1 Magnet plate
N° 1 Rubber plug
N° 2 Hinge Supports
N° 4 Spacers
Fig. 2
Fig. 3 Fig. 4
Fig. 5
Fig. 4/B
- No. 6 type A self-threading screws, l =13 mm.
- No. 2 type B metric, countersunk screws
, l =25mm;
for fastening the magnet plate to the cabinet.
- No. 4 type C metric screws, l =15 mm; for
mounting the hinge supports to the cabinet.
- No. 4 type D metric screws, l =7 mm; for
mounting the hinges on the supports.
Mounting the Parts onto the Face of the
Machine.
- Fit the hinge supports to the appliance front
panel, positioning the hole marked with an arrow
in
so that it is on the inner side of the front
panel. Fit a spacer (
between the surfaces
using type C screws.
- Fit the magnet plate at the top of the opposite
side, using type B
4/B) between the plate and the surface.
