Plan Your Installation
7
Readthroughtheentiremanualbeforebeginning
yourinstallation. Follow all steps exactly. Reading
this manual will also help you get all the benefits
from your system.
Your Reverse Osmosis Drinking Water System can
be installed under a sink or in a remote location.
Typical remote sites are a laundry room or utility
room. Review the location options below and deter-
mine where you are going to install your system.
NOTE:Forbestsystemperformance,thefeedwater
tothesystemshouldbesoftenedorhavehardness
lessthan10grainspergallon,withnoiron.

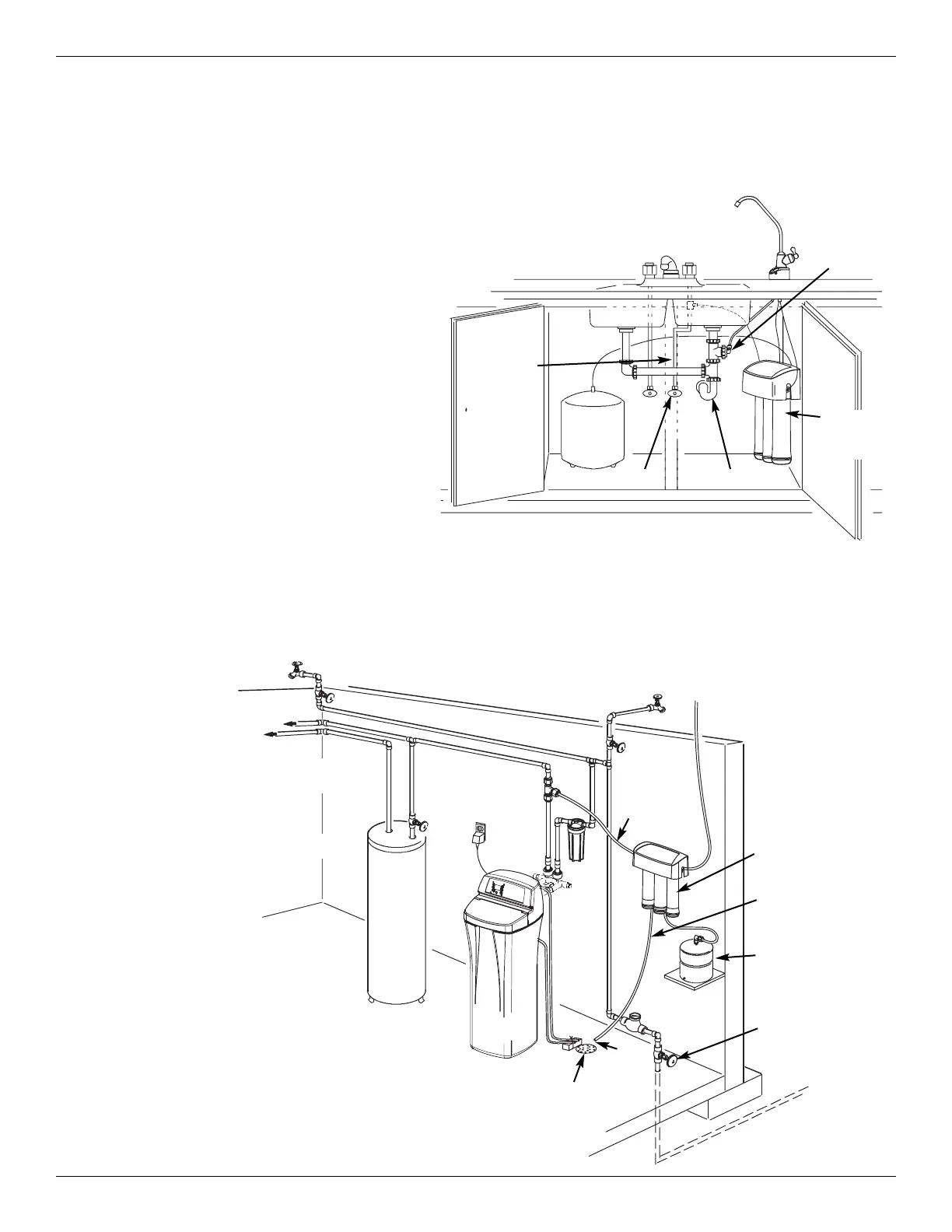

TypicalUnderSinkInstallation
Allinstallpartsincludedinpackage .
Drain Adapter
for Reverse
Osmosis
Waste Water
Cold Water
Supply
Storage
Tank
Sink Drain P-Trap
Shutoff Valve
Reverse
Osmosis
Assembly
Outside Faucet
(Hard Water)
Soft, Cold Water
Soft, Hot
Water
Outside Faucet
(Hard Water)
Water
Heater
Shutoff
Valve
Hard Water Line
Water
Softener
Reverse Osmosis
Drain
Soft water
to Reverse
Osmosis
System
Hard
Water to
House
Main
Shutoff
Valve
Storage
Tank
Water
Meter
Reverse Osmosis
System
To Faucet
Floor
Drain
HOT COLD
Air
Gap
(see
p. 9)
FIG.4
UNDERTHESINKLOCATION
The Reverse Osmosis Filter Assembly and
storage tank may be installed in a kitchen or
bathroom sink cabinet. See Fig. 4.
A suitable drain point is needed for drain water
from the Reverse Osmosis system.
REMOTEINTERIORLOCATION
The Reverse Osmosis Filter Assembly and
storage tank may also be installed in a remote
interior location away from the Reverse
Osmosis Faucet. You will need a nearby water
source and drain point. See Fig. 5.
CHECKSPACEREQUIREMENTS
Check size and position of items for proper
installation into location chosen.
FIG.5
TypicalRemoteInstallation
Additionalpartsrequired.
