Page 13
INSTALLING THE UNIT
Select Power Location
Before installing the unit into the installation location. Select either Front or Rear on the Power Panel located on the
side of the unit to correspond with the side you have chosen to have the power supply.
Installing the Unit
Slide the unit from the outside wall into your wine cellar with the outer ange ush to the wall. Secure the ange to
the wall through the pre-drilled holes. The screws should penetrate the studs as well as the upper and lower supports
to provide adequate support for the WhisperKOOL unit (see illustration). Seal all cracks and gaps around the Whis-
perKOOL unit with an air-tight sealant or caulking to prevent air leakage.
Note: If you use decorative moulding, it should be attached to the walls and never to the cooling unit itself.
The moulding itself should be removable incase the unit needs servicing

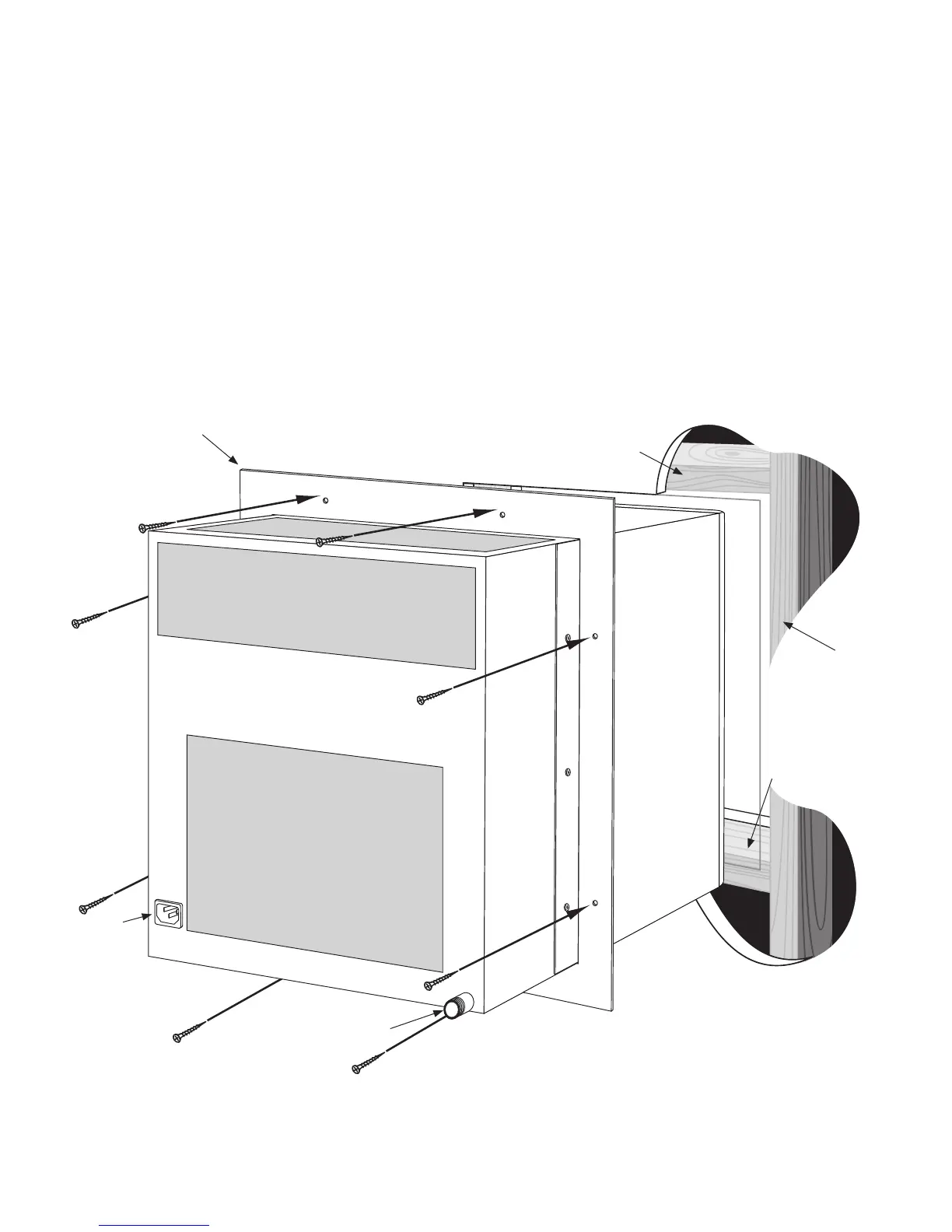

Wall Stud
2x4 Upper Support
Mounting Flange
Drain Port
Rear Power
2x4 Lower Support
Back of Unit
To Next Page
