SC Series

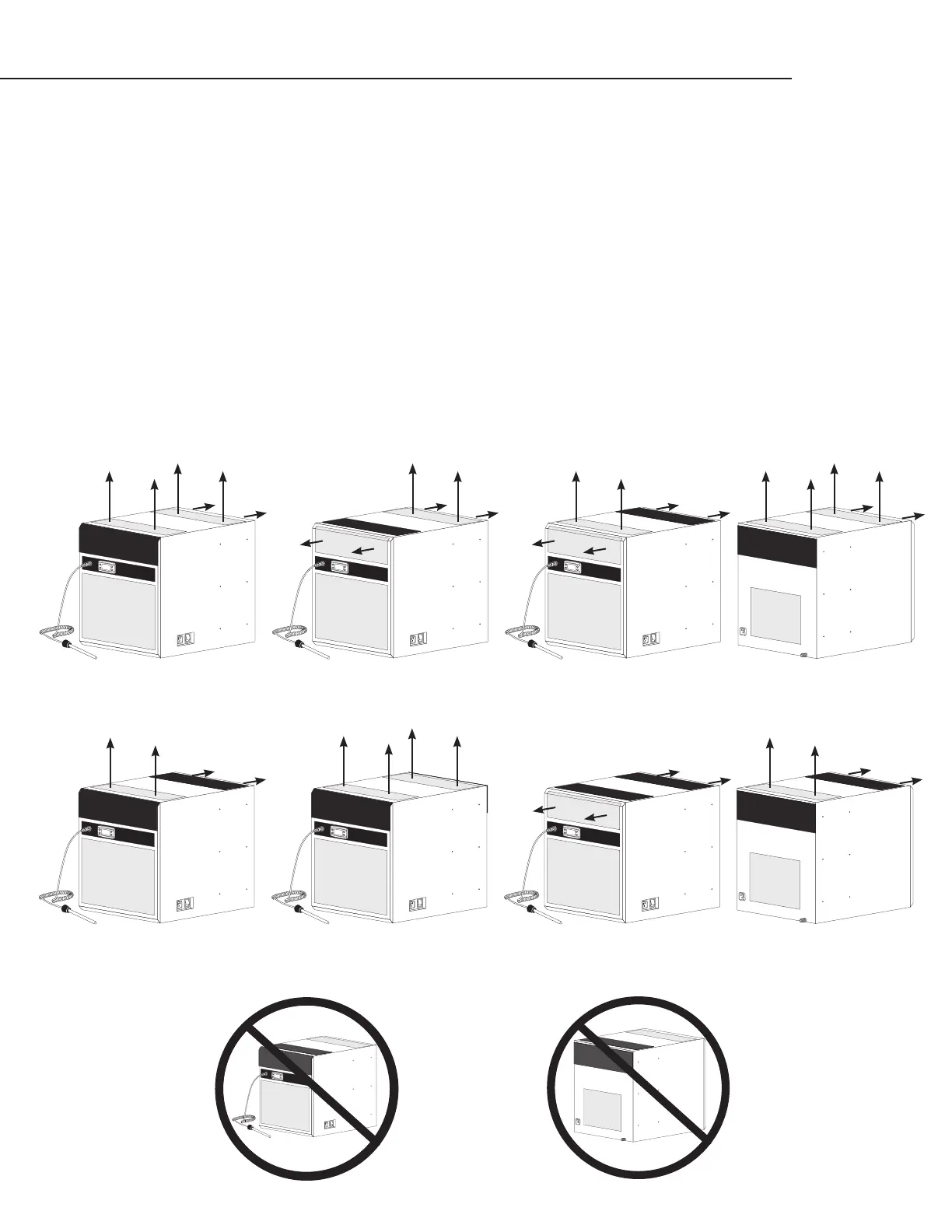

Two Side Selective Air ow Options
OPTION 5 OPTION 6 OPTION 7 OPTION 8
OPTION 1 OPTION 2 OPTION 3 OPTION 4
AIRFLOW CONTROL
Note: We do not recommend the unit to be mounted low. The magnetic de ector is to combat this issue, but is not intended as
“recommended.”
Air ow Options
The Magnetic De ectors can be used in a variety of situations:
• Mounting the system lower in the cellar
• Flush mounting the condenser side of system
• Directing air ow to avoid recirculation
Apply the Magnetic De ectors in one of the positions displayed below. Choose the option that will best suit your installation.
Note: Do not cover both of the openings on the same side of the unit for any reason.
This will cause cooling issues and premature failure.
One Side Selective Air ow Options
Note: Do not cover both of the openings on the same side of the unit for any reason. This will cause cooling issues and
premature failure.
