www.whisperkool.com | Page 13
SC Series
Preparing the Unit for Installation
Single Piece Mounting Bracket
The SC Series utilizes a single piece mounting bracket. This sturdy bracket frames the
installation location and secures the unit to the wall.
Applying Insulation Tape
Locate the four pre-cut pieces of black foam tape included with the unit, two larger pieces and
two smaller pieces. To apply, simply peel back the white-paper adhesive covering and place on
the mounting bracket. The large pieces are applied to the top and bottom, while the smaller
pieces are for the sides. This foam creates a tight seal between the bracket and the wall.
Mounting Bracket Installation

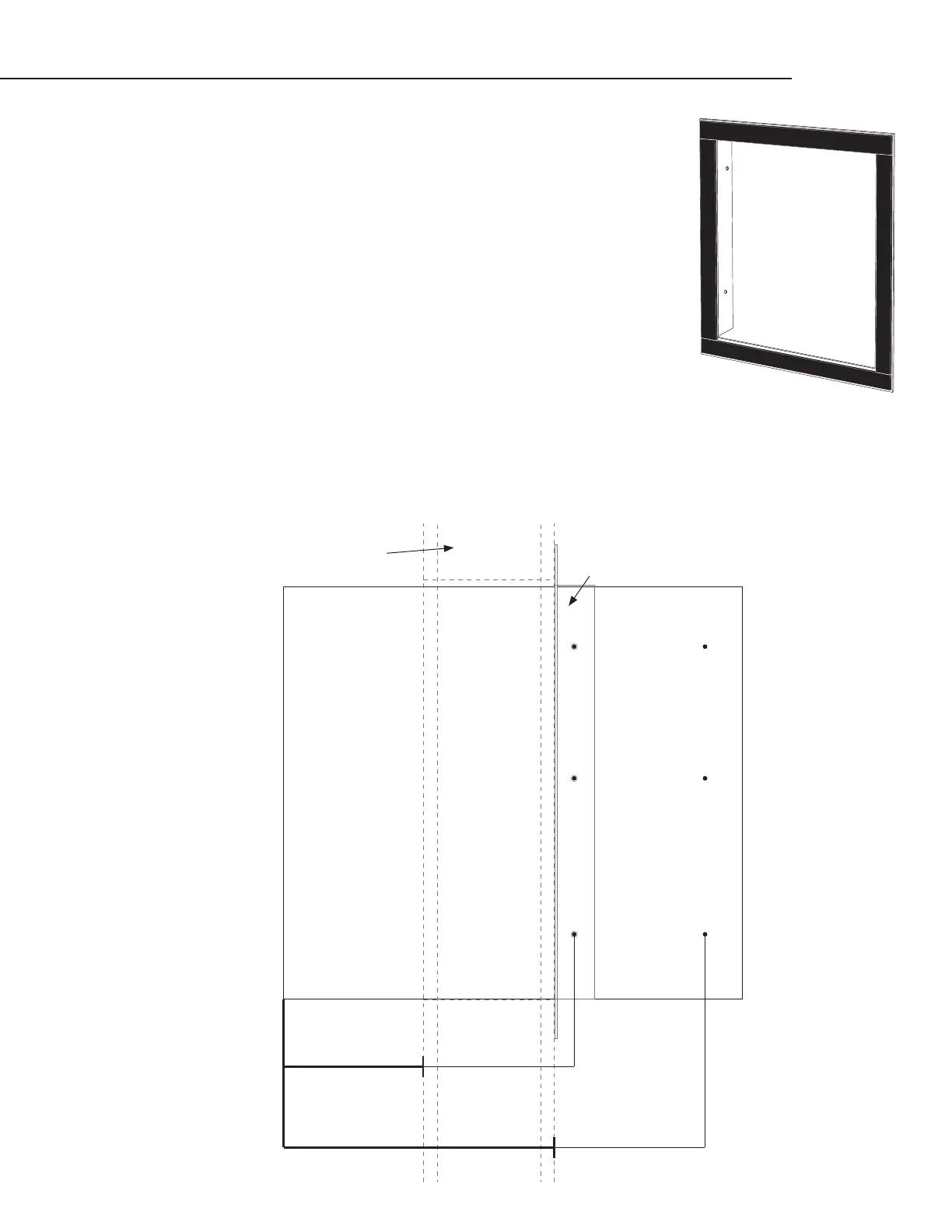

Select your desired bracket mounting location (see diagram below). This location determines
the depth of the installation. For example, position #1 keeps most of the unit out of the cellar
while position #2 makes the back of the unit near ush on the exterior wall. Slide the bracket
onto the unit, paying special attention to the anges for mounting to the unit. Make sure they
are pointing towards the back. For the 2000i, 3000i, and 4000i Models, use the six ½” self tappers to fasten the bracket to the
unit. It is imperative not to use self tapping screws longer than ½” in length. For the 6000i/8000i Models, use the six
³
�
₈
” self-
tappers to fasten the bracket to the unit. It is imperative not to use self tapping screws longer than
³
�
₈
” in length.
#1 2000i/3000i/4000i
5–6 inches In Cellar
6000i/8000i
9.5–10.5 inches In Cellar
#2 2000i/3000i/4000i
9–10 inches In Cellar
6000i/8000i
14–15 inches In Cellar
#
1
#
2
5” inch thick wall
(wall thickness may vary)
Mounting Bracket
Wine Cellar Exhaust Area
