VENTED INTO MASONRY CHIMNEY
A freestanding Quest may be vented into an existing flue. If a liner is run all the way to the top
of the existing chimney, the top should be sealed with a metal plate (aluminum, or galvanized
or
stainless steel). Start the vertical run with a "tee" at the back of the stove. Other options are
Typical Installations – Freestanding Stove (cont.)
27

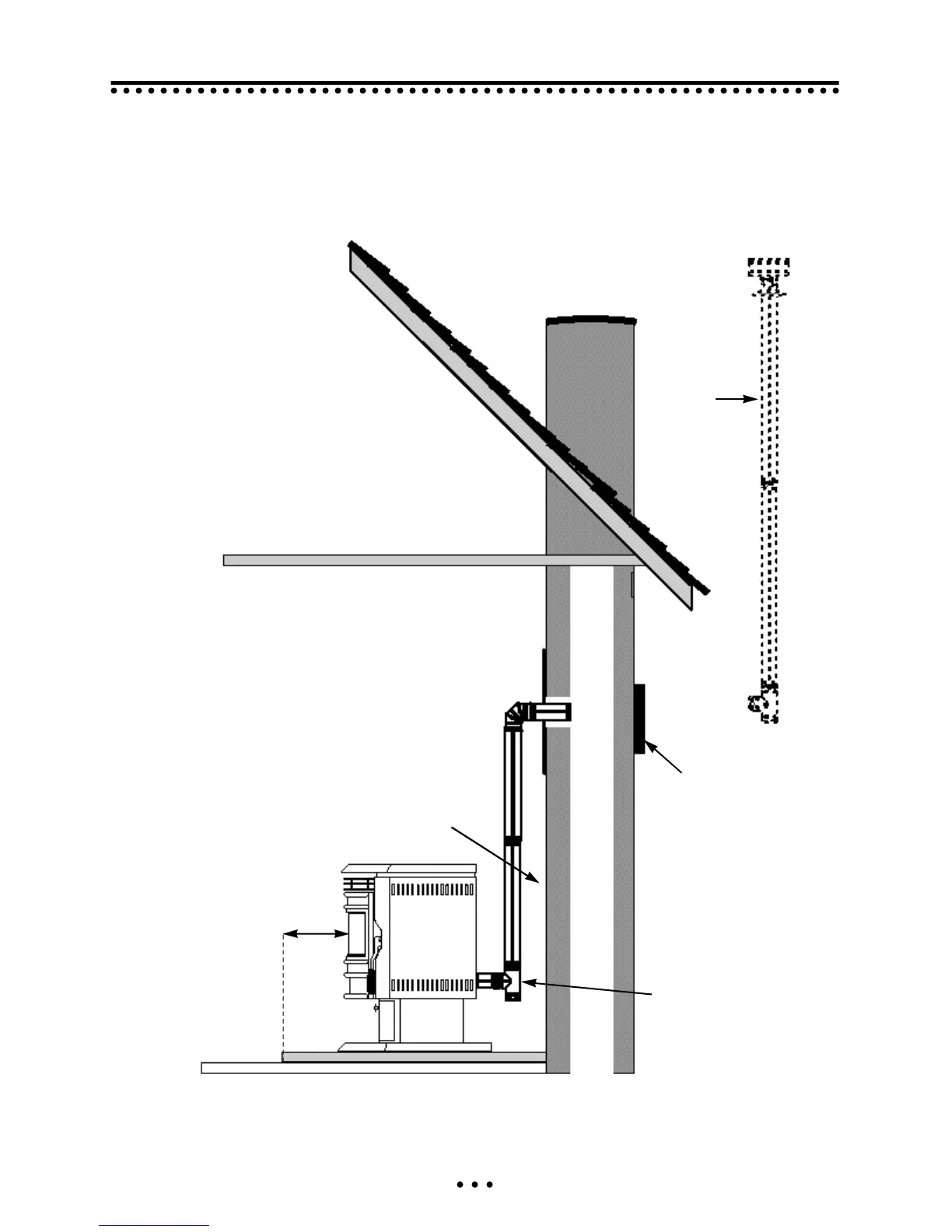

(Figure 30)
Freestanding Vented Into Masonry Chimney
1” Minimum
clearance from
back of stove to
combustible material
6” Minimum
from front of
stove to edge of
non-com-
bustible floor
protection
Option:
Clean-out door
to access “tee”
Optional
Complete
Liner
All vertical pipe
runs should
begin with a
3” or 4”
clean-out “tee”
6” Min.
IMPORTANT:
We recommend at least
2” to 3” min. between
the stove and wall,
to allow room for
servicing, power cord
and the hopper lid.
