VERTICALLY VENTED THROUGH CEILING & ROOF
Typical Installations – Freestanding Stove (cont.)
28

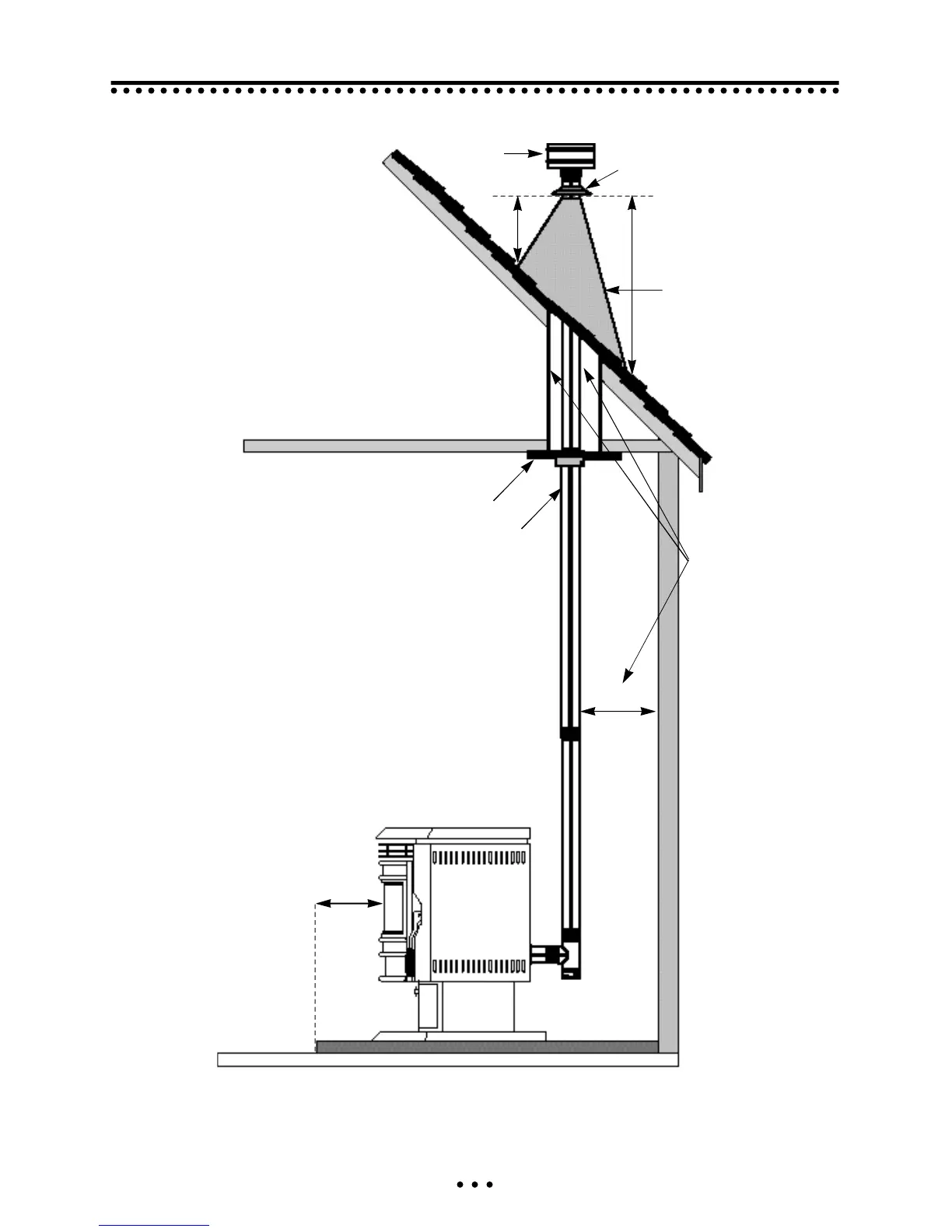

(Figure 31)
Vertically Vented Through Ceiling & Roof
VENT CAP
6” Min.
3” Min.
Use ceiling support or
firestop when venting
through a floor or ceiling
Maintain 3 inch
minimum pipe clearance to
combustible surfaces.
IMPORTANT:
We recommend at least
2” to 3” min. between
the stove and wall,
to allow room for
servicing, power cord
and the hopper lid.
Follow the vent manufacturer's
recommendation for minimum
termination height above roof
STORM COLLAR
ROOF
FLASHING
