Whitfield quest - Vented Through Wall to Class A Chimney

VENTED OUT THROUGH EXTERIOR WALL & UP THROUGH ROOF
CONNECTED TO A METAL (CLASS 'A') CHIMNEY
An existing metal (Class 'A') chimney (used for wood stoves) may be used to terminate a verti-
cally vented stove. The pellet vent may be directly connected to the chimney or run all the way
Typical Installations – Freestanding Stove (cont.)
30

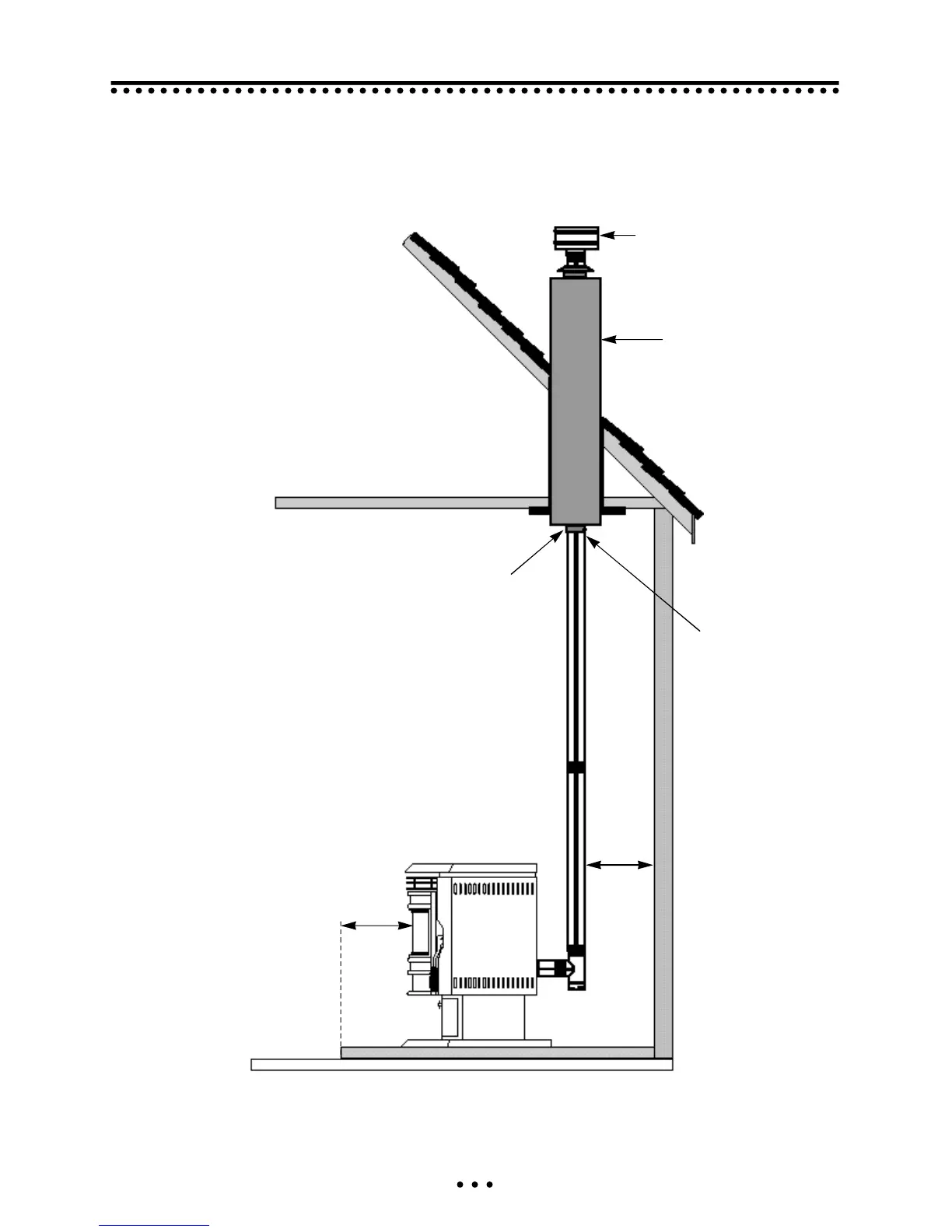

(Figure 33)
Connected to a Class 'A' Chimney
Existing
chimney
or “Class A”
wood stove
chimney
Pipe may pass
through existing
chimney or be
connected to a
pipe reducer
It is not required to extend the
“L-vent” pipe up through the
existing class “A” chimney.
However, a “gas tight” seal
must be made at the
transition point.
RAIN CAP
6” Min.
1” Min.
IMPORTANT:
We recommend at least
2” to 3” min. between
the stove and wall,
to allow room for
servicing, power cord
and the hopper lid.
