INSTALLATION

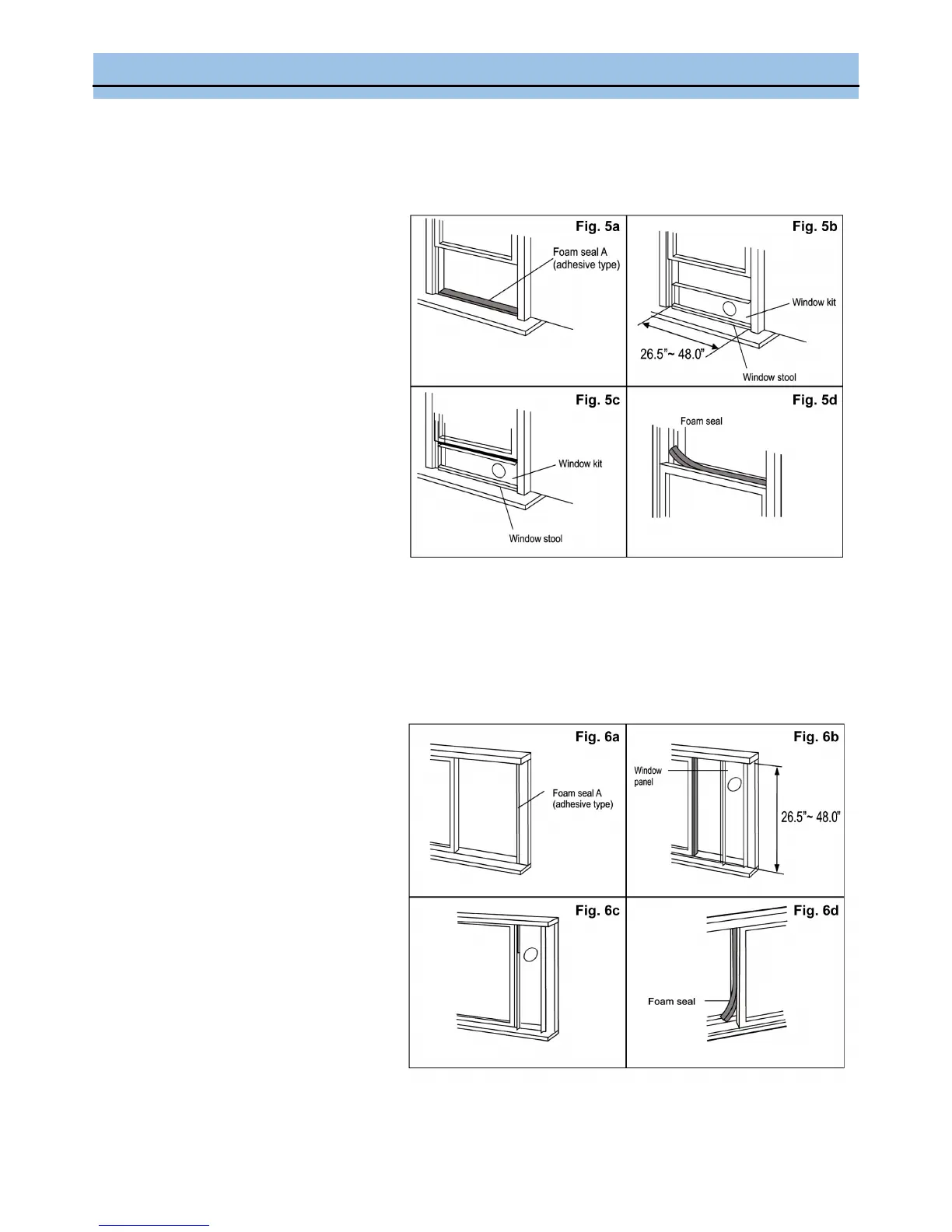

WINDOW KIT INSTALLATION IN A DOUBLE-HUNG WINDOW
Additional accessory sold separately: Foam Seal
1. Open window or sliding door for approxi-
mately 5”
2. Cut the foam seal (adhesive type) to the
proper length and attach it to the bottom of
the window. Fig. 5a.
3. Adjust the length of the window bars to
the same length and width of the opening
of the window. Cut the window piece if nec-
essary to fit the length of your window. Fig.
5b.
4. Close the window on the window slide
bars. For long term installation, you may
screw the window kit into your window
frame. Fig. 5c.
5. Cut the foam seal to the length and seal
the open gap between the top window sash
and outer window sash. Shown in Fig. 5d.
WINDOW KIT INSTALLATION IN A SLIDING WINDOW/DOOR
Additional accessory sold separately: Foam Seal
1. Open window or sliding door for approx-
imately 5”
2. Cut the foam seal (adhesive type) to
the proper length and attach it to the bot-
tom of the door / window. Fig. 6a.
3. Adjust the length of the window bars to
the same length and width of the opening
of the window. Cut the window piece if nec-
essary to fit the length of your window. Fig.
6b.
4. Close the door/ window on the window
slide bars. For long term installation, you
may screw the window kit into your window
frame. Fig. 6c.
5. Cut the foam seal to the length and seal
the open gap between the top window sash
and outer window sash. Show in Fig. 6d.
**If you are interested in purchasing optional accessories, please contact info@whynter.com for retail sales infor-
mation.
