16
CABLE COLOUR
Rear bike light - Connects from base of
the battery, exits frame under bottom
bracket, enters rear fender channel, exits
rear fender through hole to rear light.
Hub motor power cable - Connects
from base of battery, exits frame under
bottom bracket, junction connection
under chainstay, runs to axle.
Rear brake cable - Enters frame at
headset, travels above battery in the
downtube, exits frame under bottom
bracket, connects to calliper along
chainstay
Charge Port cable - Connects from base
of the battery, connects to charge port
above bottom bracket
Rear dérailleur cable - Enters frame at
headset, travels above battery in the
downtube, exits frame under bottom
bracket, connects to dérailleur along
chainstay
Dropper Post cable - Enters frame at
headset, travels above battery in the
downtube, Runs over bottom bracket
to seatpost mechanism (not all RHeO’s
come tted with dropper seatpost).

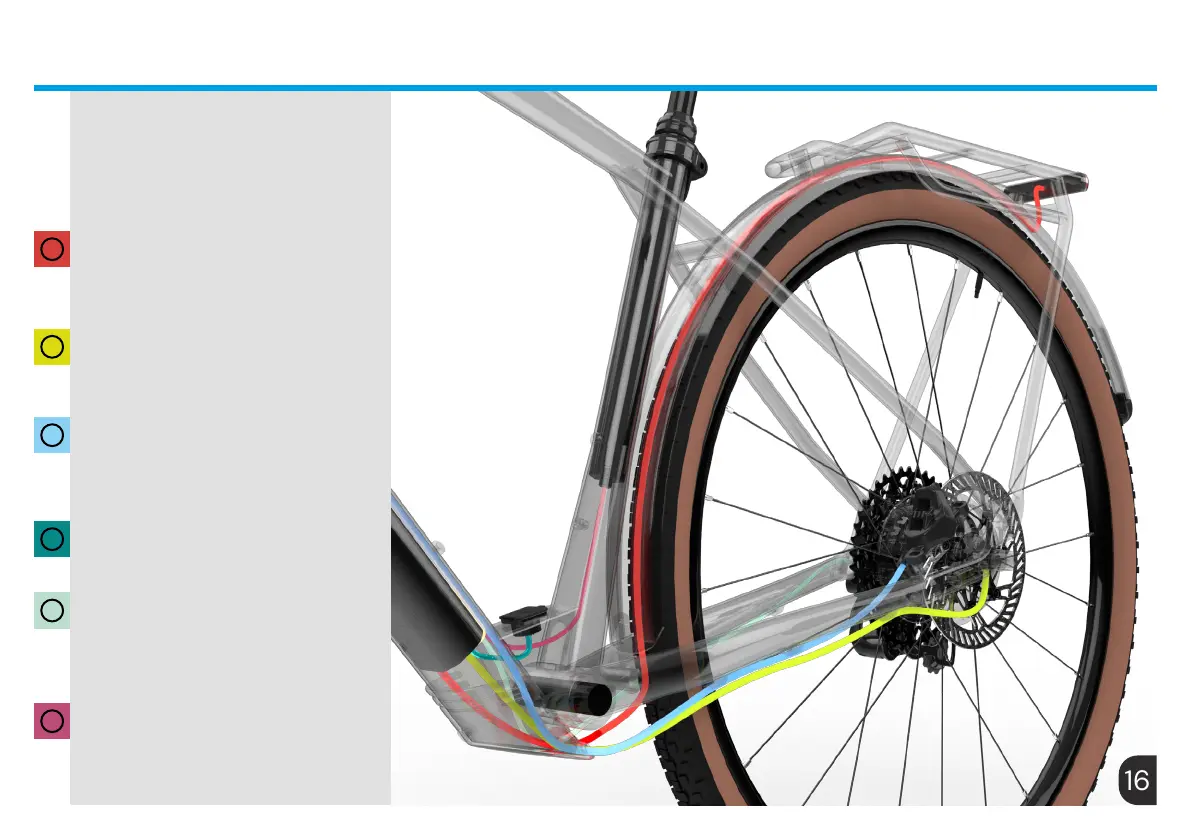

REAR TRIANGLE CABLE ROUTING
