Error Information
The HMI screen can warn the user when there is a fault. When a fault is
detected, ‘ERROR’ will be ash at the top of the screen. When Screen
displays ‘ERROR’, control functions will not be affected. Normal functions
can still be performed.
If there no commands are made with in 5 seconds, the HMI screen will
return to the ‘ERROR’ warning. Please see the error code information
table for further details.

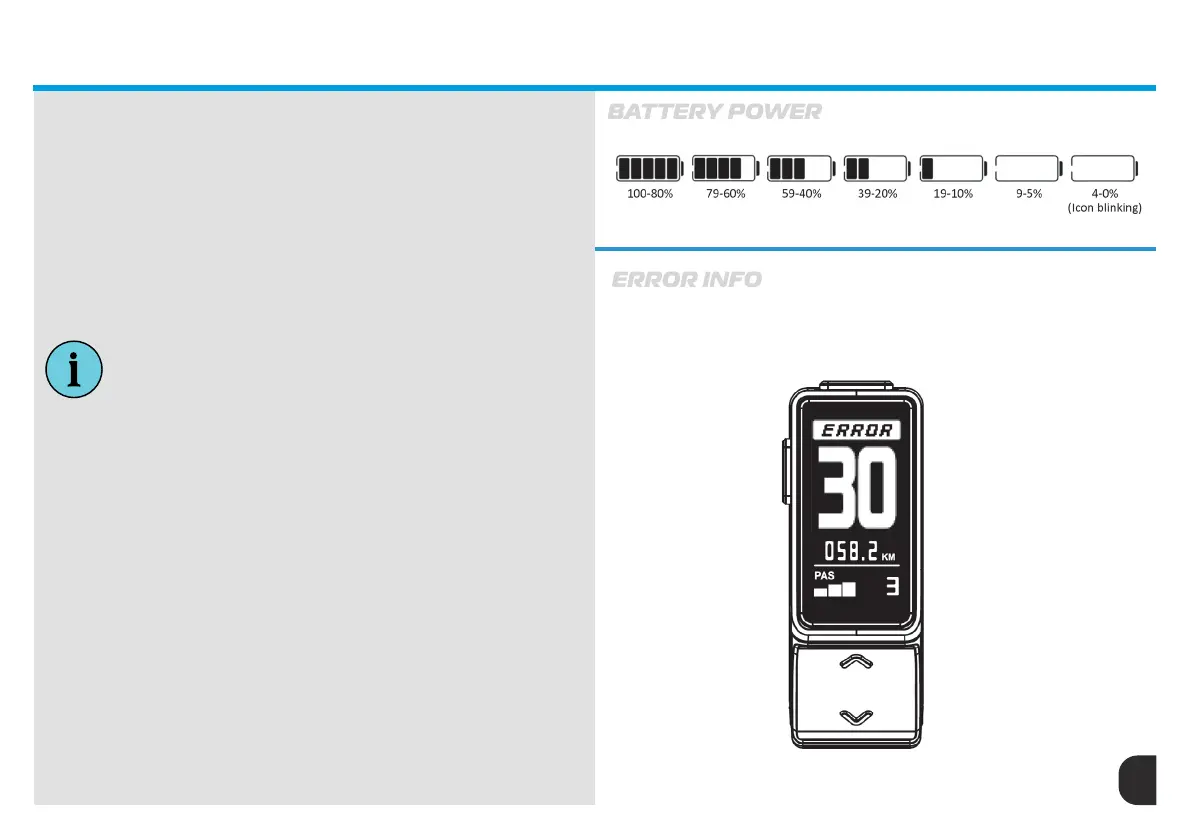

Battery Power Indicator
Battery power information is displayed at the top left of the HMI screen
. The battery icon is divided into 5 bars indicating the State of Charge
(SOC) value.
During start up the battery Icon will be ashing whilst a connection
is established. Once connected, the ashing will stop and the
corresponding bars will show the SOC value.
When the SOC value is lower than 5%, the battery icon show zero
battery capacity and continually ash.
PLEASE NOTE:
When there is communication error between HMI and Battery:
• No SOC value information will be shown
• Range information will not be displayed
CHARGE LEVEL & ERRORS
