4. Operating and indicating elements
4.1. Elements on the front side

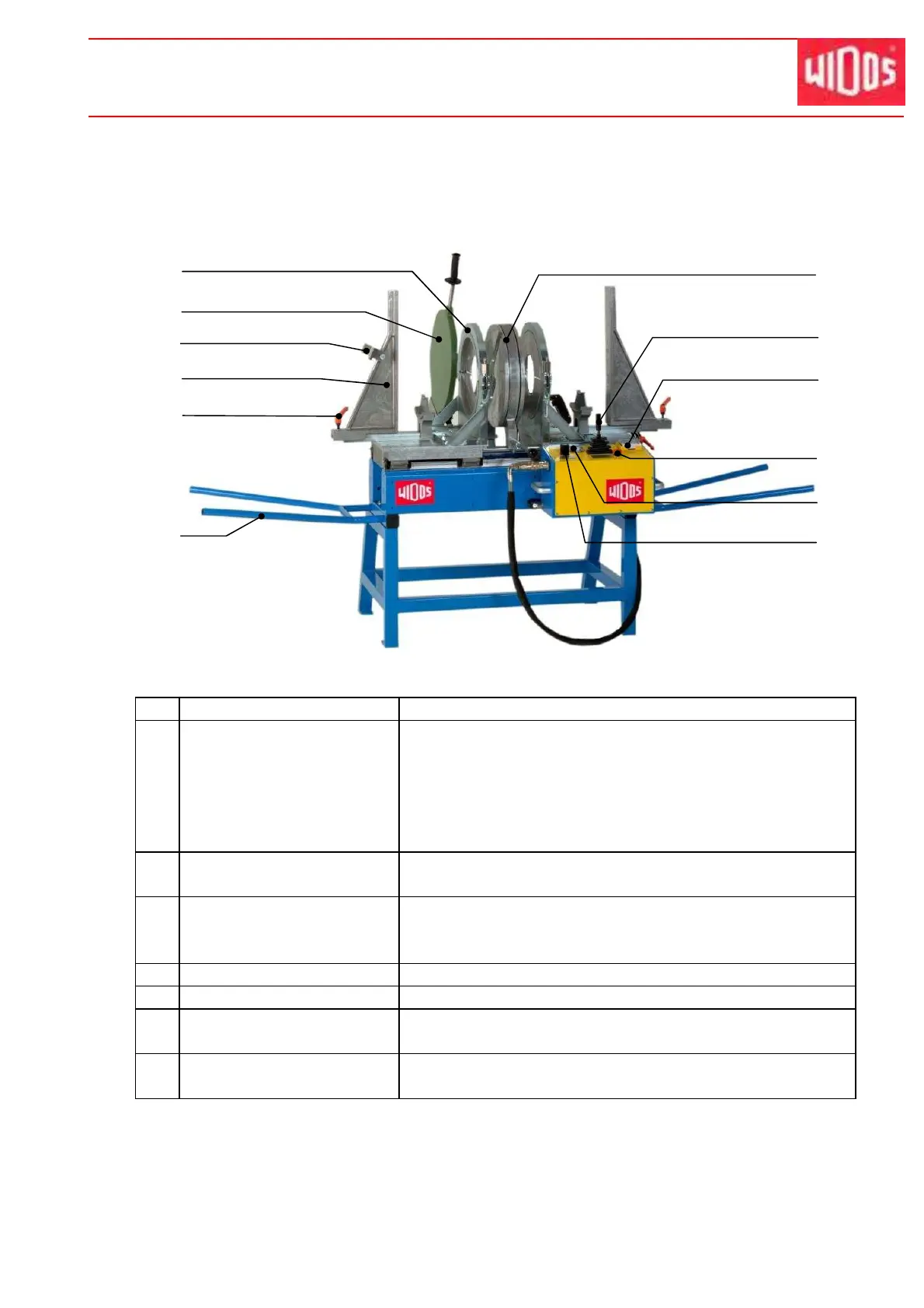

No. Denomination Function
1 Clamping tool - swivable up to 15° on both sides.
- Clamping the pipes. By means of the respective
reduction inserts, pipes from OD=90 - 315 mm can be
clamped.
- when using reduction inserts with 22,5° obliquity the
clamping tools need not be turned.
2 Heating element - Bring the pipe up to welding temperature.
- Can be moved sidewards and be swivelled in
3 Pipe support - Clamped pipes can be supported with the corresponding
inserts.
- Bows can be supported on the supporting angles.
4 Supporting angle - Stabilization of bows and angles.
5 Clamping lever - Fixation for supporting angle
6 Carrying handle - Handcarrying the machine
- can be unscrewed if need be.
7 Planer - Planing the pipe ends to be welded.
- Is switched on over the switch at the control desk.
1
2
4
5
6
9
11
7
3
8
10
12
