4.4. Wells at the table
The clamping tool is fixed on one side by means of a centering bolt which serves as swivelling
axle if angles have to be adjusted.
The clamping tool can be moved forwards/backwards.
At the slooted hole on the clamping tool, any angles from 0-15° can be adjusted. For the exact
setting of 11,25° and 15°, figure stamps are existing.

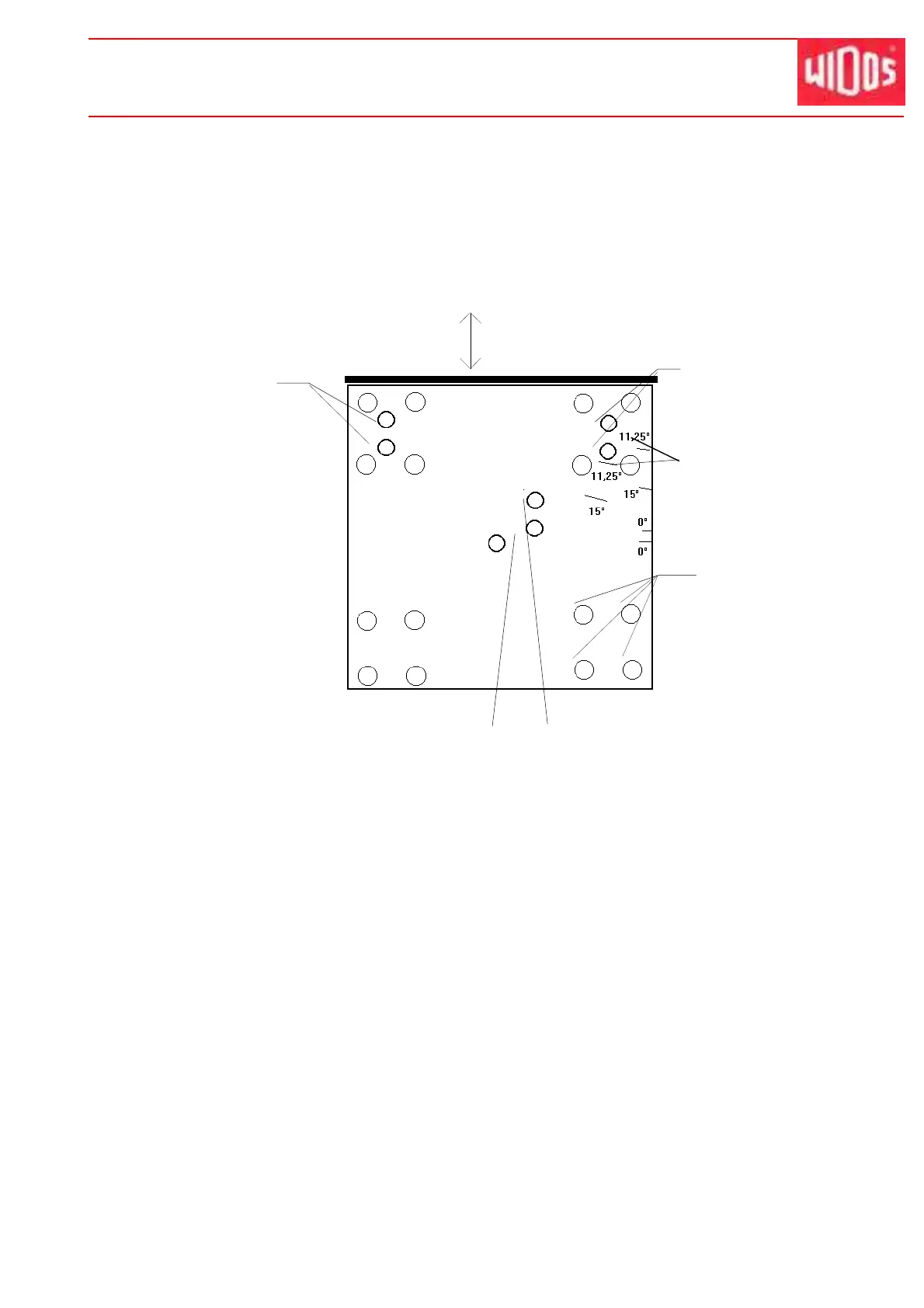

M o v i n g d i r e c t i o n
Fixing for table
Angle marks for
clamping tools front /
back
Fixing for clamping tool
front
Fixing for clamping tool
back
Screws for clamping tool
front / back
Centering bolt for
clamping tool /
swiveling axle
