Function blocks

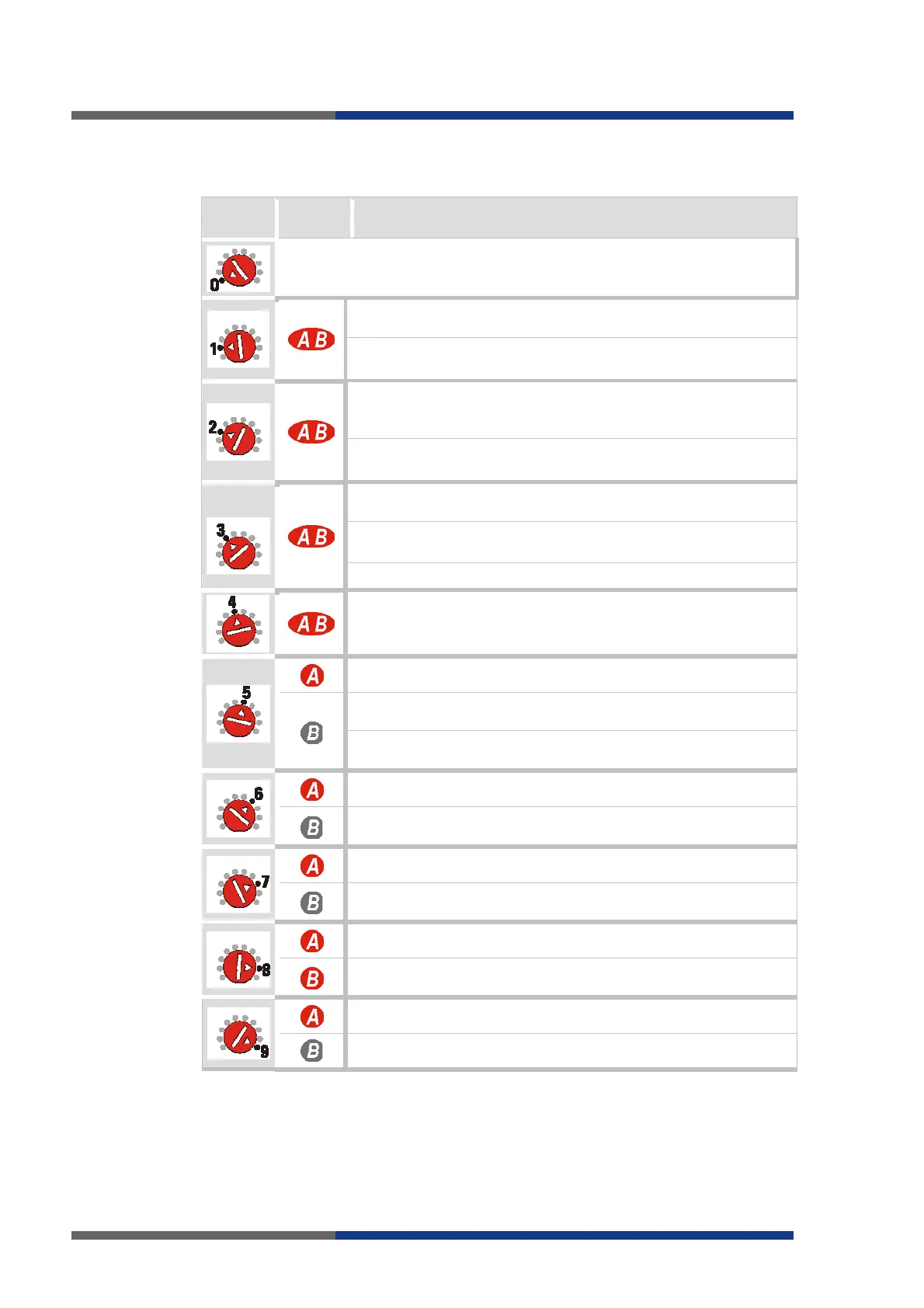

FUNCTION
Function
group
Application e.g.
Switch position not allowed
Emergency stop, safety door, 4-wire switching mat
Dual-channel NC/NC with cross monitoring, stop category 0
OR
Safety door monitoring with electromagnetic switches,
valve position monitoring
Dual-channel NC/NO with cross monitoring, stop category 0 and 1
OR
3.1* Non-contact safety device type 4, emergency stop, safety door
Dual-channel NC/NC, sin
g
le-channel NC, stop cate
g
ory 0 and 1
3.2* PDF, Stop category 0 and 1
Non-contact safet
y
device t
yp
e 2, Sto
p
cate
g
or
y
0 and 1
Muting
Two-hand function EN 574 Type IIIC, safety door
2x dual-channel NC/NO with cross monitoring
Emergency stop, safety door
Dual-channel NC/NC with cross monitoring
5.1* Two-hand function EN 574 Type III
A
NO/NO with cross monitoring
5.2* Jog mode with 5 s operating time restriction
NO/NO with cross monitoring
Emergency stop, safety door
Dual-channel NC / NC with cross monitoring, stop category 0 and 1
Emergency stop, safety door
Dual-channel NC / NC with cross monitoring, stop category 0 and 1
Emergency stop, safety door, non-contact safety device type 4
Dual-channel NC/NC, single-channel NC, stop category 0 and 1
Emergency stop, safety door, non-contact safety device type 4
Dual-channel NC/NC, single-channel NC, stop category 0 and 1
Emergency stop, safety door, non-contact safety device type 4
Dual-channel NC/NC, single-channel NC, stop category 0
Emergency stop, safety door, non-contact safety device type 4
Dual-channel NC/NC, single-channel NC, stop category 0 and 1
Emergency stop, safety door
Dual-channel NC / NC with cross monitoring, stop category 0 and 1
Emergency stop, safety door, non-contact safety device type 4
Dual-channel NC/NC, single-channel NC, stop category 0 and 1
* For special functions
see page 23.
