Installing / Removing
Master module Installing Other modules

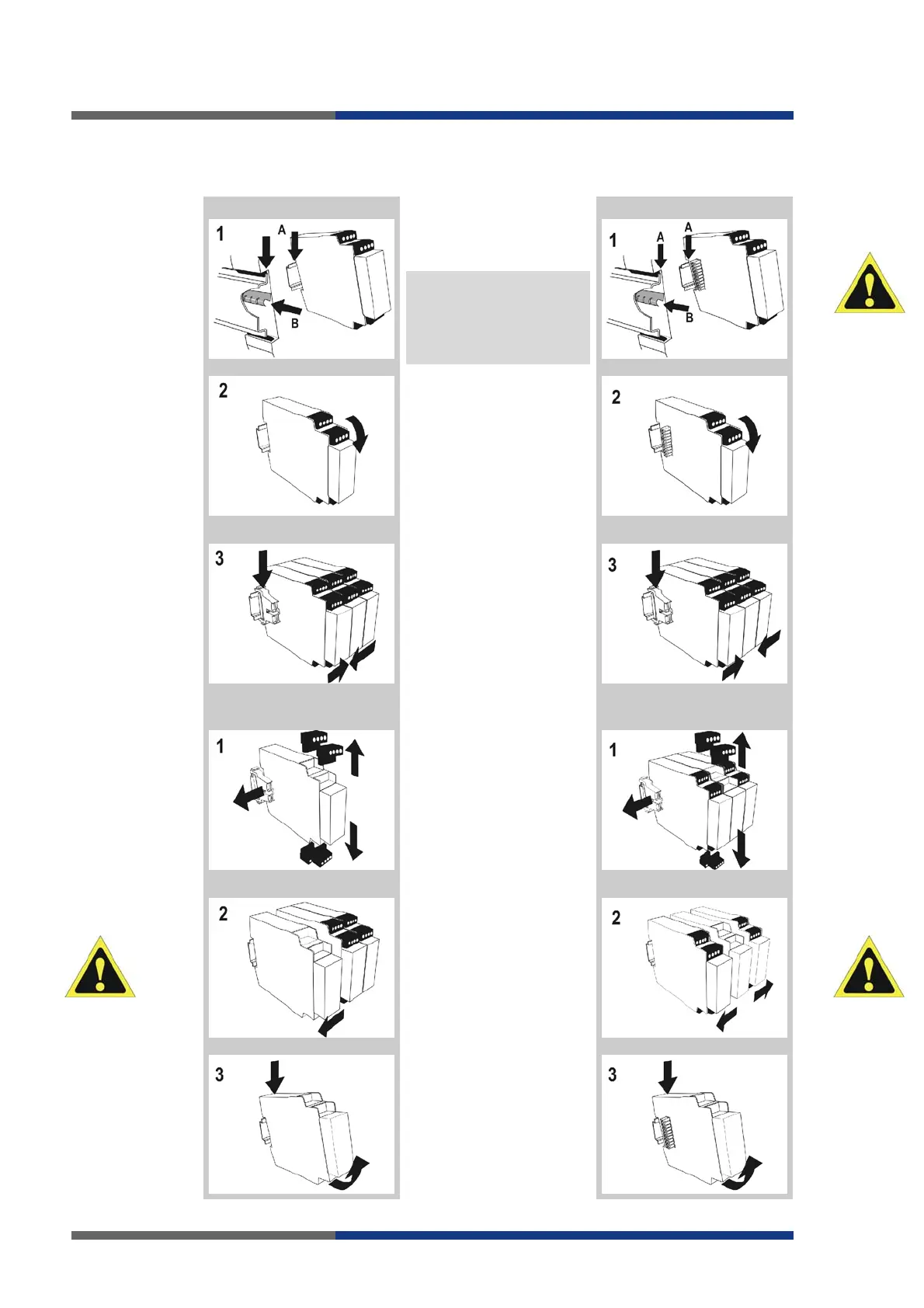

Place device on DIN rail A.
Ensure that earth spring B
is in the correct position.
The earth spring on the
module must make a
secure and electrically
conductive connection
with the DIN rail.
Snap the module onto the
DIN rail by pressing gently
in the direction of the
arrow.
If there are several modules,
push them together one at
a time in the direction of
the arrow until the
connectors at the sides
engage and then install the
end clamps at the left and
right ends.
Removing
Remove the plug-in termi-
nals, wiring and end
clamps.
If there are several modules,
push them apart one at a
time in the direction of the
arrow until the connectors
at the sides disengage.
Push down at the back.
While pressing down,
remove the module from
the DIN rail in the direction
of the arrow.
