SA-IN Input Module
40
© 2010 Wieland Electric GmbH | BA000256 | 12/2012 (Rev. I)
Input Circuit Functions
Input expansion – function 9
Function 9 assigns the inputs of the function group to the respective other group and takes
on their input circuit function. Thus with one input module you can expand function block
A or B in the base module by 8 single-channel or 4 dual-channel sensors with the same
input circuit function (e.g. 8x emergency stop or 4x NC/NO electromagnetic switch.
Function 9 must only be selected for one of the two function groups. Otherwise a device
error will be detected and the FLT LED will flash.
Settings: Input module INPUT A Function 9 (input expansion)
INPUT B Function 3 (dual-channel with cross-circuit
monitoring and simultaneity monitoring)
Base module FUNCTION 6
Result: Function 6B on the base module is expanded by the 4 dual-channel inputs
on the input module
With switch positions 0 to 6 there is an AND link in the base module; for switch positions
7 (OR) and 8 (BYPASS) there is an OR link.
For the effects of input module function groups
A and B on the associated base module see page 36.
___________________________________________________________________________

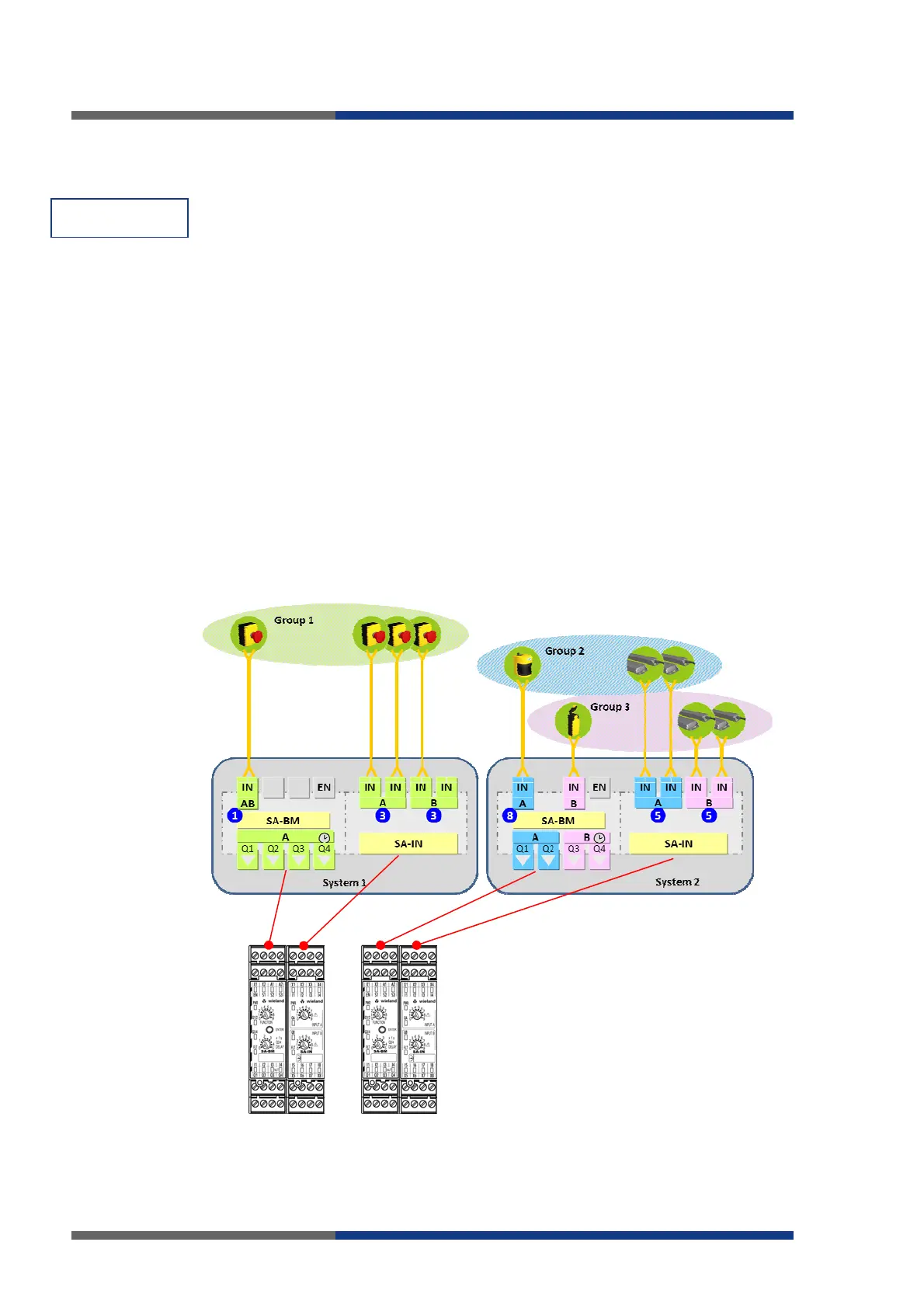

Example for the interaction of base and input modules
Expansion
function
Input modules act only on the next base
module to the left, with which they form a
coded system group. The blue digits
designate the set functions.
System 1: INPUT A and INPUT B of the
input module act together with base module
function group AB on the four outputs
(green).
System 2: INPUT A of the input module
acts together with base module function
group A on output group A (blue); INPUT B
acts together with function group B on
out
p
ut
g
rou
p
B
(p
ink
)
.
EXAMPLE
