14 WIKA operating instructions pressure transmitter, models E-10 and E-11
EN
Sealing variants
Mounting the instrument
The max. torque depends on the mounting point (e.g. material and shape). If you have any questions,
please contact our application consultant.
→ For contact details, see chapter 1 “General information” or the back page of the operating instructions.
1. Seal the sealing face (→ see “Sealing variants”).
2
.
At the mounting point, screw the pressure transmitter in hand-tight.
3
.
Tighten the process connection hexagon with a torque spanner using the spanner ats.
Max. torque: 50 Nm [36.9 foot-pound]
Please observe that the threads are not skewed.

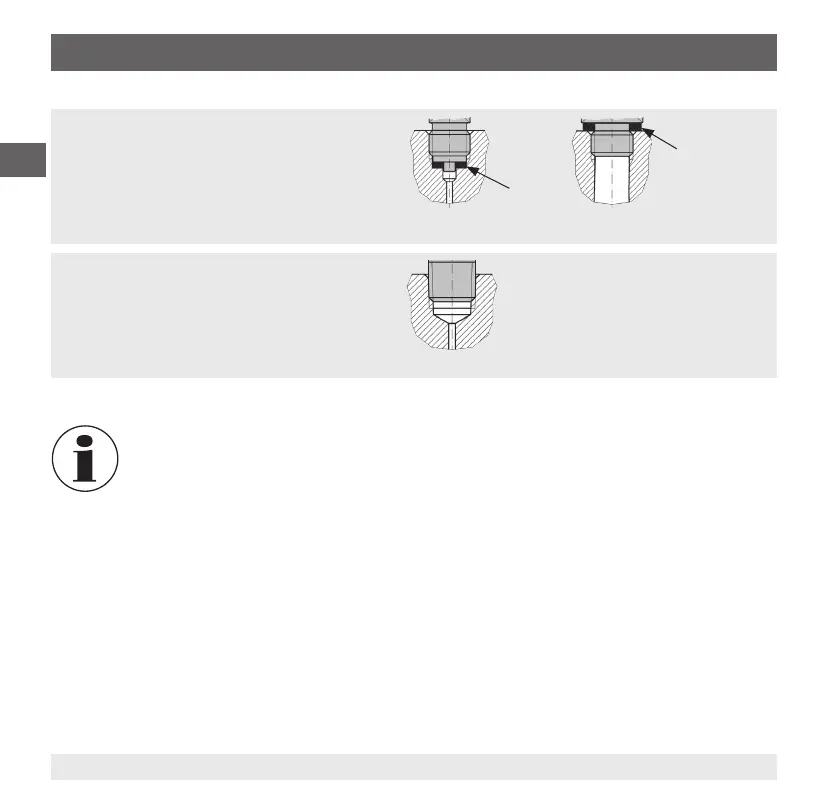

Parallel threads
Seal the sealing face  with flat gasket, lens-type
sealing ring or WIKA profile sealing.
per EN 837
per ISO 1179-2 (formerly
DIN 3852-E)


Tapered threads
Wrap threads with sealing material
(e.g. PTFE tape).
NPT, R and PT
