2. Design and function
2. Design and function

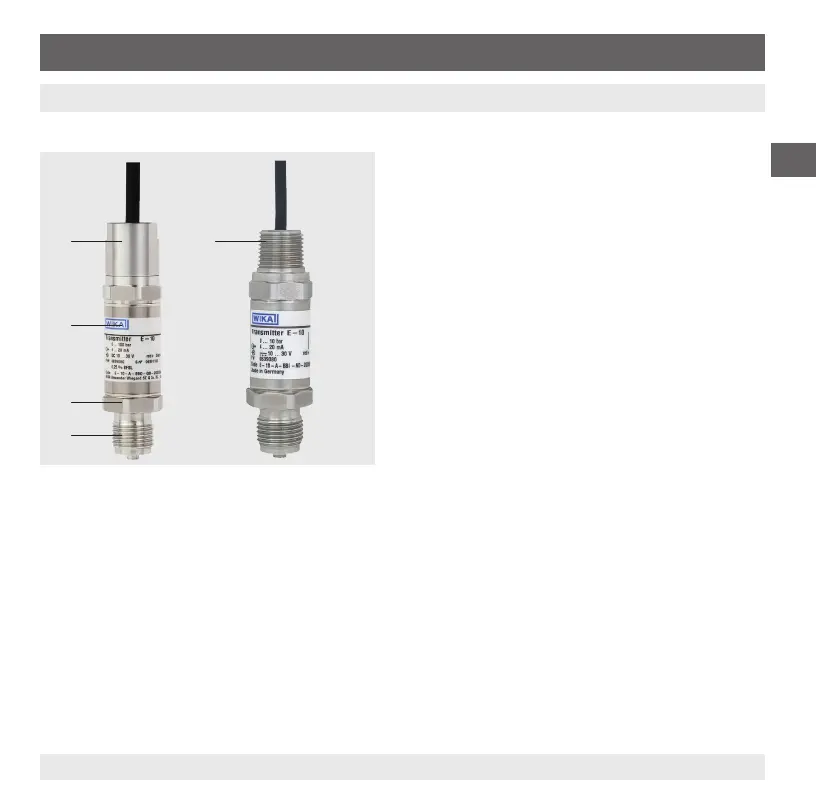

2.1 Overview

Electrical connection with protective cap

Electrical connection without protective cap

Case, product label

Process connection, spanner ats

Process connection, thread (depending on version)





2.2 Description
Model E-10: Process connection with internal diaphragm (standard version)
Model E-11: Process connection with ush diaphragm for highly viscous or crystallising media that may clog the bore
of the process connection.
By means of a sensor element and by supplying power, the prevailing pressure in your application is converted into an
amplied standardised electrical signal via the deformation of a diaphragm. This electrical signal varies in proportion to
the pressure and can be evaluated accordingly.
2.3 Scope of delivery
■
Completely mounted pressure transmitter for ush design (model E-11) with pre-mounted sealings and plastic
protective cap
■
Operating instructions
Cross-check scope of delivery with delivery note.
