WIKA E-10 User Manual

11116552.11 EN/DE/FR/ES 03/2022
17WIKA operating instructions pressure transmitter, models E-10 and E-11
EN
Requirement for shield and grounding
The pressure transmitter must be grounded via the process connection.
When working during a running process operation, measures to prevent electrostatic discharge on the connection
terminals should be taken, as a discharge could lead to temporary corruption of the measured value.

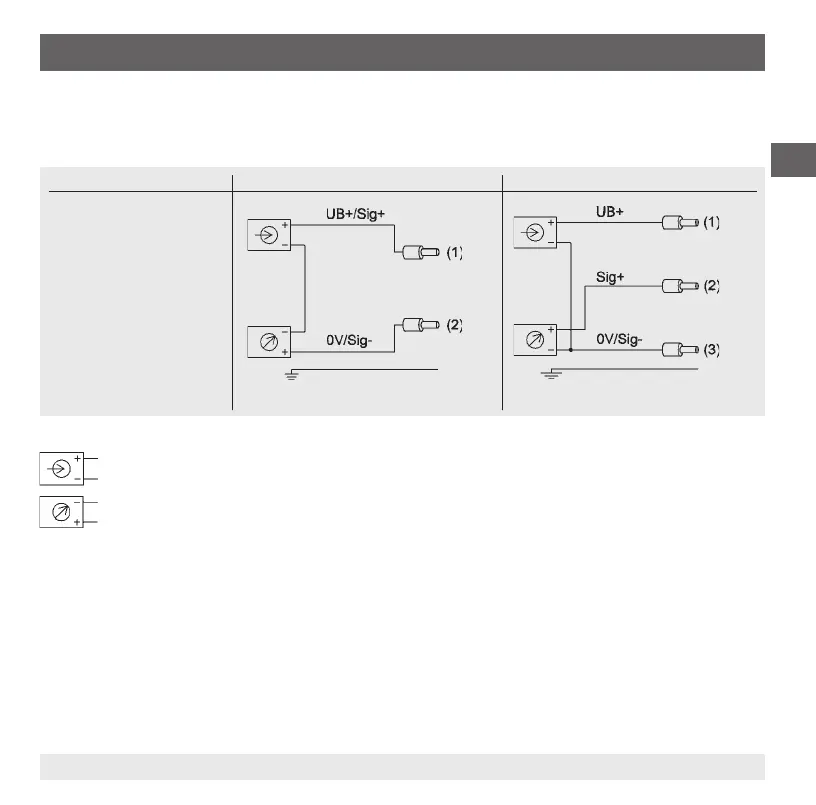

Cable outlet with 2 m length
3-wire2-wire
red
red
black
black
brown
Shield
(connected to case)
Shield
(connected to case)
Legend:
Voltage supply
Load
UB+/Sig+ Positive supply / output terminal
0V/Sig- Negative supply / output terminal
5.4 Functional check
The output signal must be proportional to the prevailing pressure. If this is not the case, this may indicate a damaged
diaphragm of the process connection. In this case, see chapter 6 “Errores”.
5. Commissioning, operation

WIKA E-10 Specifications

General

Brand	WIKA
Model	E-10
Category	Transmitter
Language	English
