5. Commissioning, operation
14147933.02 10/2018 EN/DE
WIKA operating instructions model T16
15
5.2 Mounting
5.2.1 Transmitter in head mounting version (model T16.H)
When fitting the head-mounted version of the transmitter, do not exceed a
torque of 1 Nm!
The transmitters for head mounting version are designed to be mounted on a measuring
insert within a form B, DIN connection head. The connection wires of the measuring insert
must be approx. 50 mm long and insulated.
Mounting in connection head
Insert the measuring insert with the mounted transmitter into the protective components
and secure into the connection head using screws in pressure springs.
Mounting in the connection head cover
When mounting in the cover of a connection head, use suitable screws and matching
washers.
Installing with DIN rail adapter
With the mechanical adapter, available as an accessory, the T16.H head-mounted
transmitters can also be fixed on a DIN rail (see chapter 12 “Accessories”).

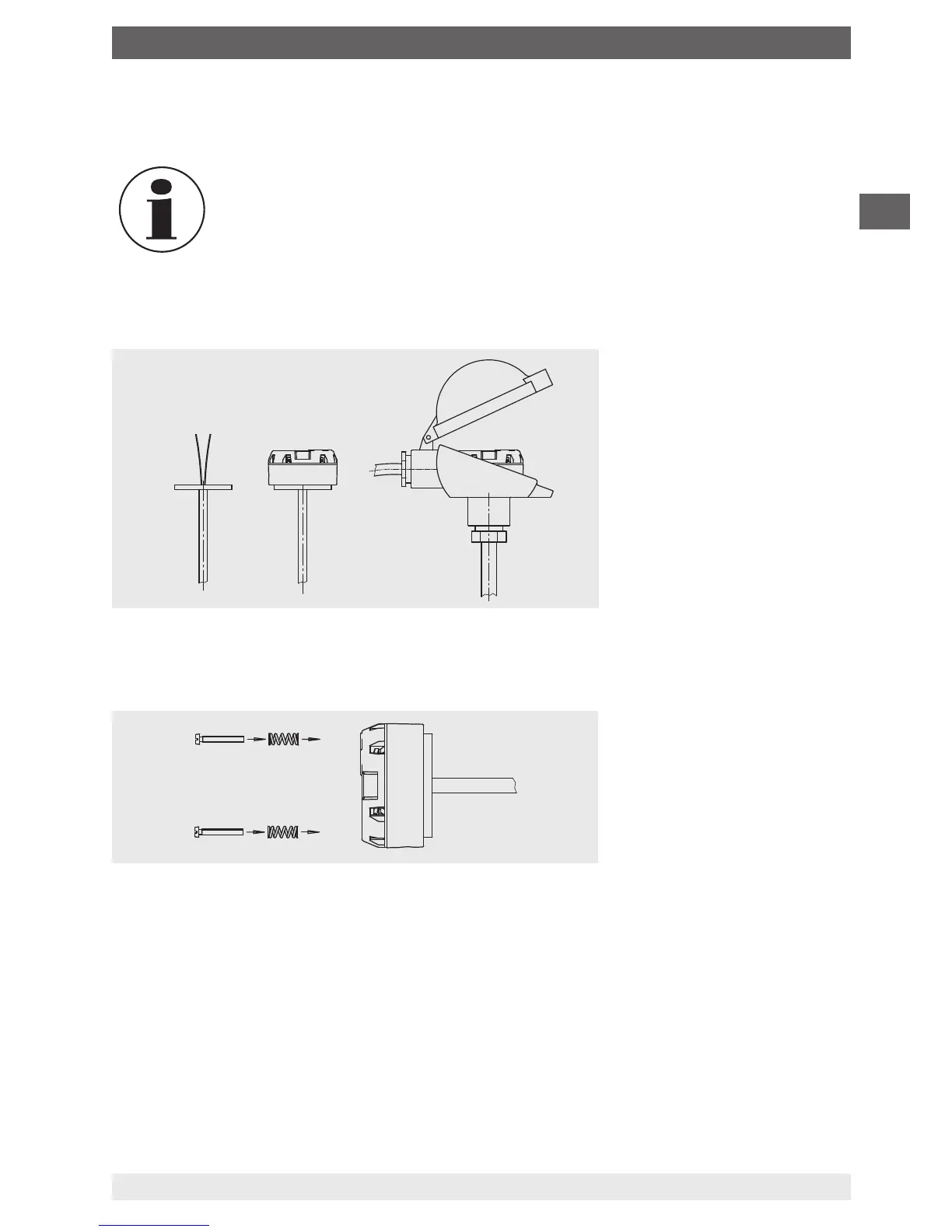

Mounting example
14139114.01
14139114.01
