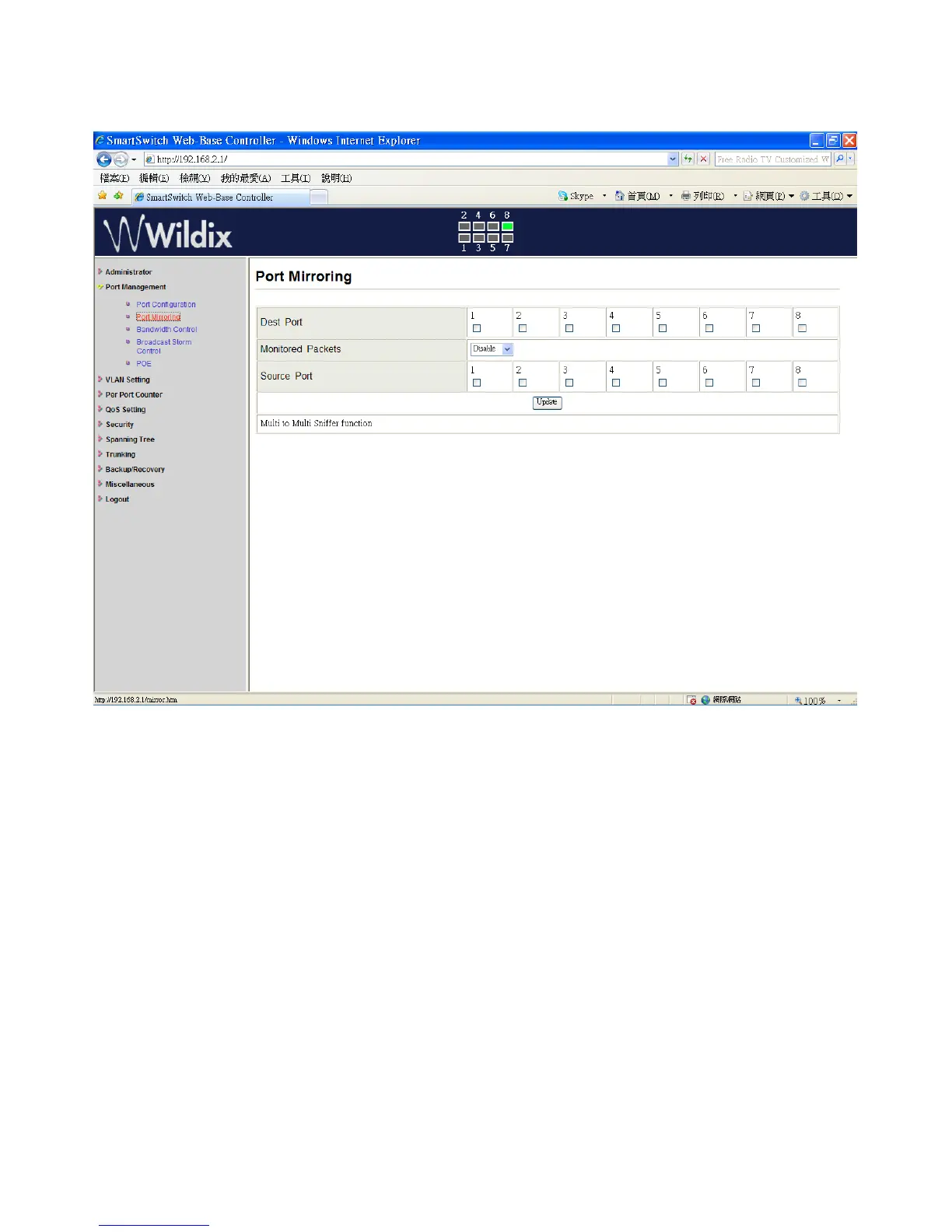

Port Management: Port Mirroring
Port Mirroring is used to mirror traffic, RX, TX or TX&RX, from Source port to Destination port for
analysis.
1. Select the Destination port: you can select port 1 to port 8
2. Select the Source port: by clicking the checking box of the port.
3. Click “Update” to save the setting.
The setting of “Port Mirroring” is finished.
Wildix WS08POE User Manual 12
