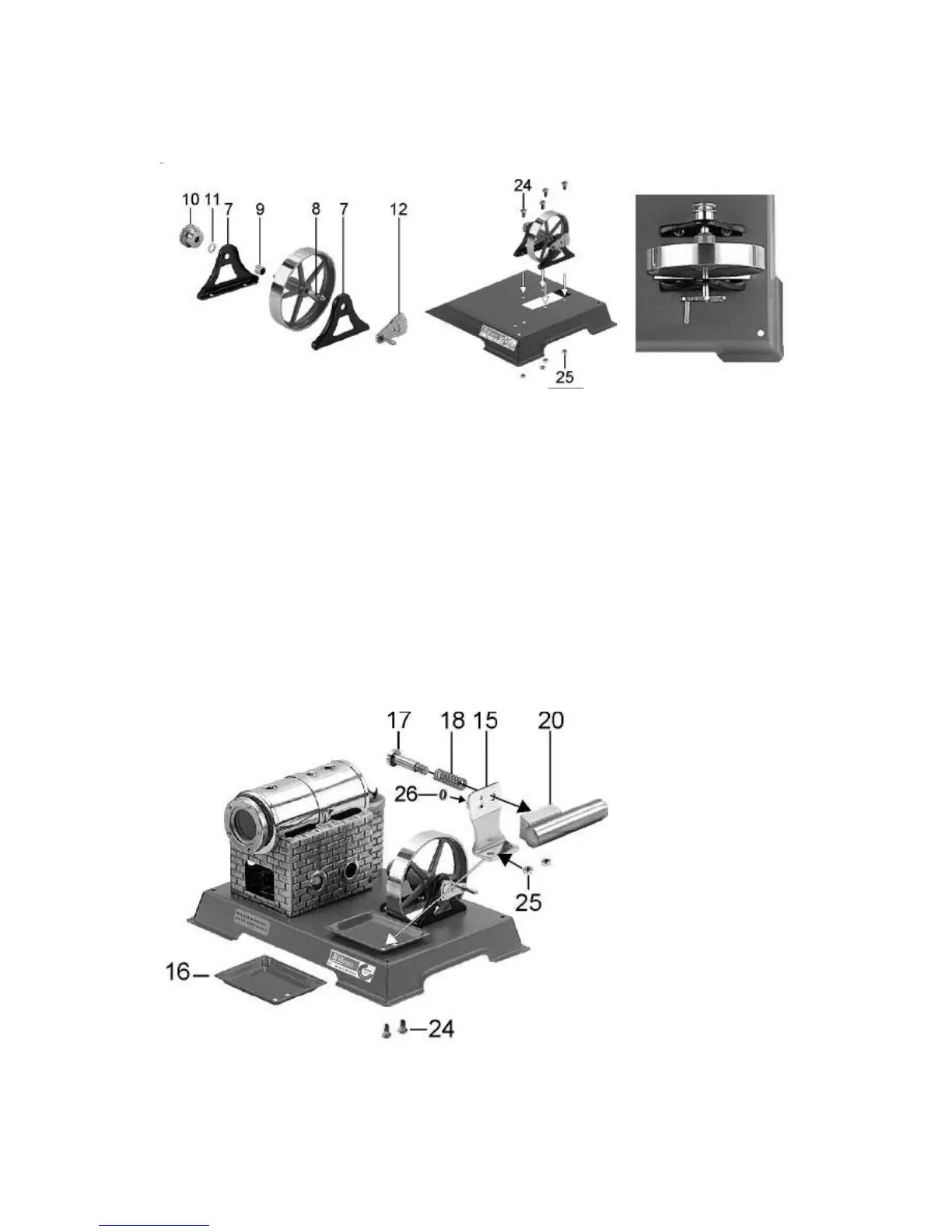

Fig.2.2.3: mounting the flywheel
Step 4: Assembling the cylinder unit.
Mount the cylinder unit first by fitting the spring (18) and the baffle plate
(15) onto the screw M3x16 (17). Now tighten her into the threaded hole on
the cylinder (20) by turning the screw only 1-2 times. Do not turn further
otherwise this will damage the cylinder. Now fit the baffle plate and the
condensed water tray to the base plate using two screws (24) and nuts (25).
Insert the screws from underneath the base plate.
Fig.2.2.4 mounting
the cylinder unit
