4.1.3 Series connection of resistors
When you connect resistors one after the other in a row, you add the values
of R1 and R2 to the total resistance: R = R1 + R2
Example:
Resistance R1 = 100 Ohm and resistance R2 = 1 k-Ohm
Calculated total resistance: R = 100 Ohm + 1 k-Ohm = 1100 Ohm

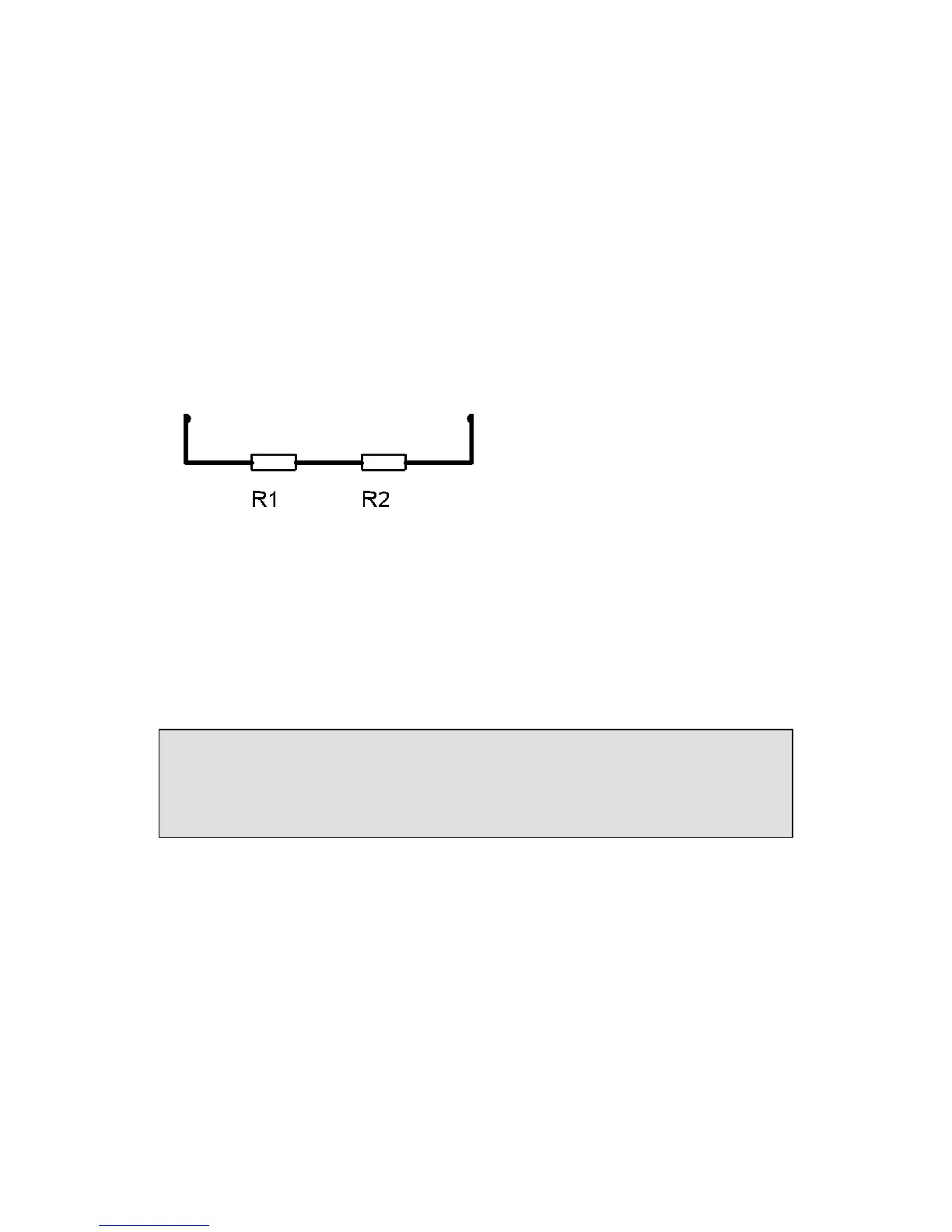

Fig.4.02 series connection of two
resistors
4.1.4 Calculation of the power
You can use the following formulary to calculate the electric power:
P = U x I (P=electric power, U=voltage, I= current)
“P” is measured in Watt, “U” in Volt and “I” in Ampere.
Example of a calculation:
A direct current generator generates a voltage of 3,0 Volt and provide a
current output of 50mA.
3,0V x 0,5mA has a power of 0,015Watt.
4.2 Troubleshooting
Here you find some tips and hints in case the steam engine does not run
properly or the electronic does not function at all or is unstable.
R = total
