3.1.11 Switch
According to the figure you find one switch. This type with 2 connections is
suitable for the use on the bread board. The electric flow is as long
established as the switch is pressed. Letting go of the switch is stopping the
flow again. Please mount the 4 legs of the switch as shown in the figure.
The switch will not work with wrongly twisted mounting, because the
connections are internally connected.

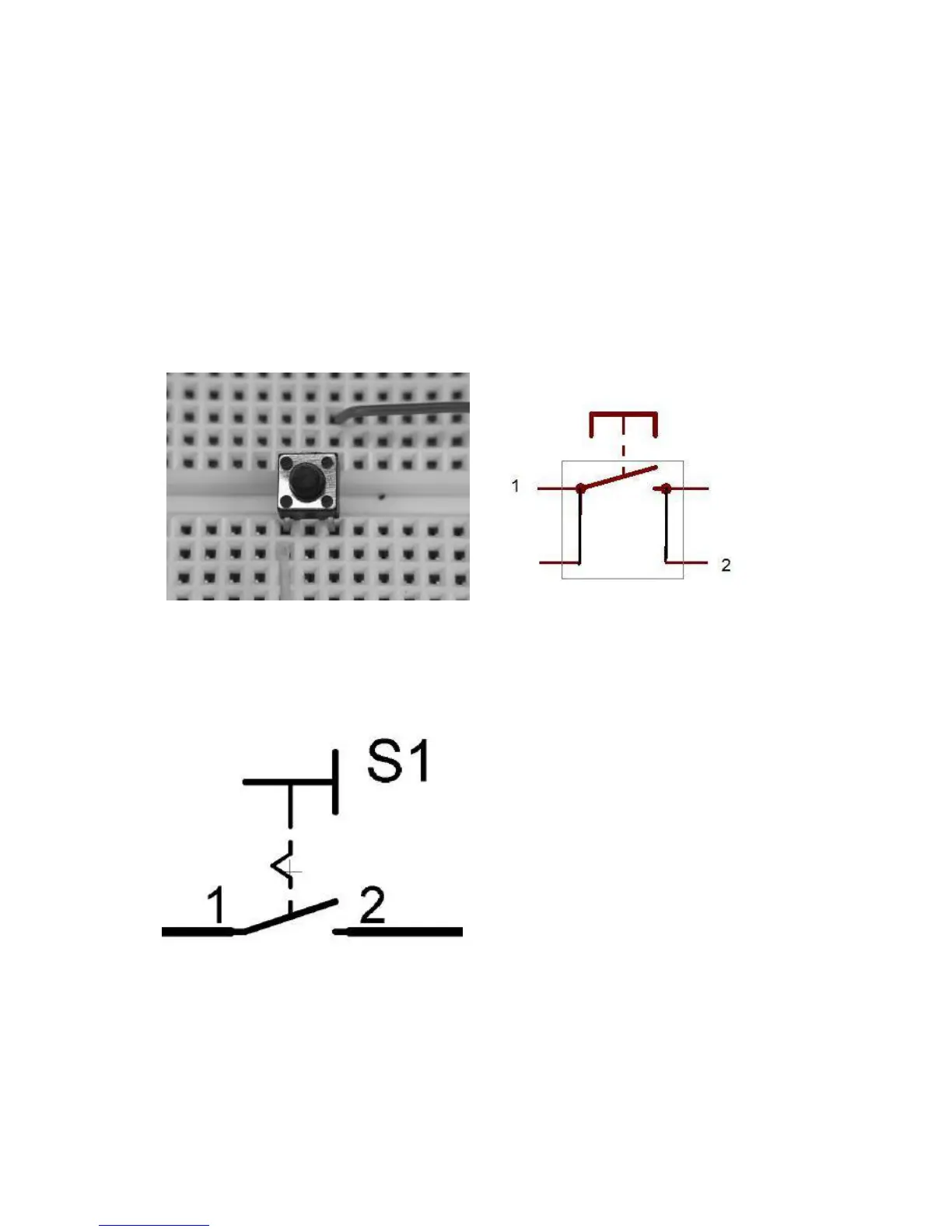

Fig.3.18: a) switch on the bread board and b) connecting assignment
Fig.3.19: circuit symbol: switch
