Here you have an overview of the series resistors for the LEDs:
Value of the
resistor
1. ring
2. ring
3. ring
4. ring
1 K-Ohm
brown
black
red
gold
100 Ohm
brown
black
brown
gold

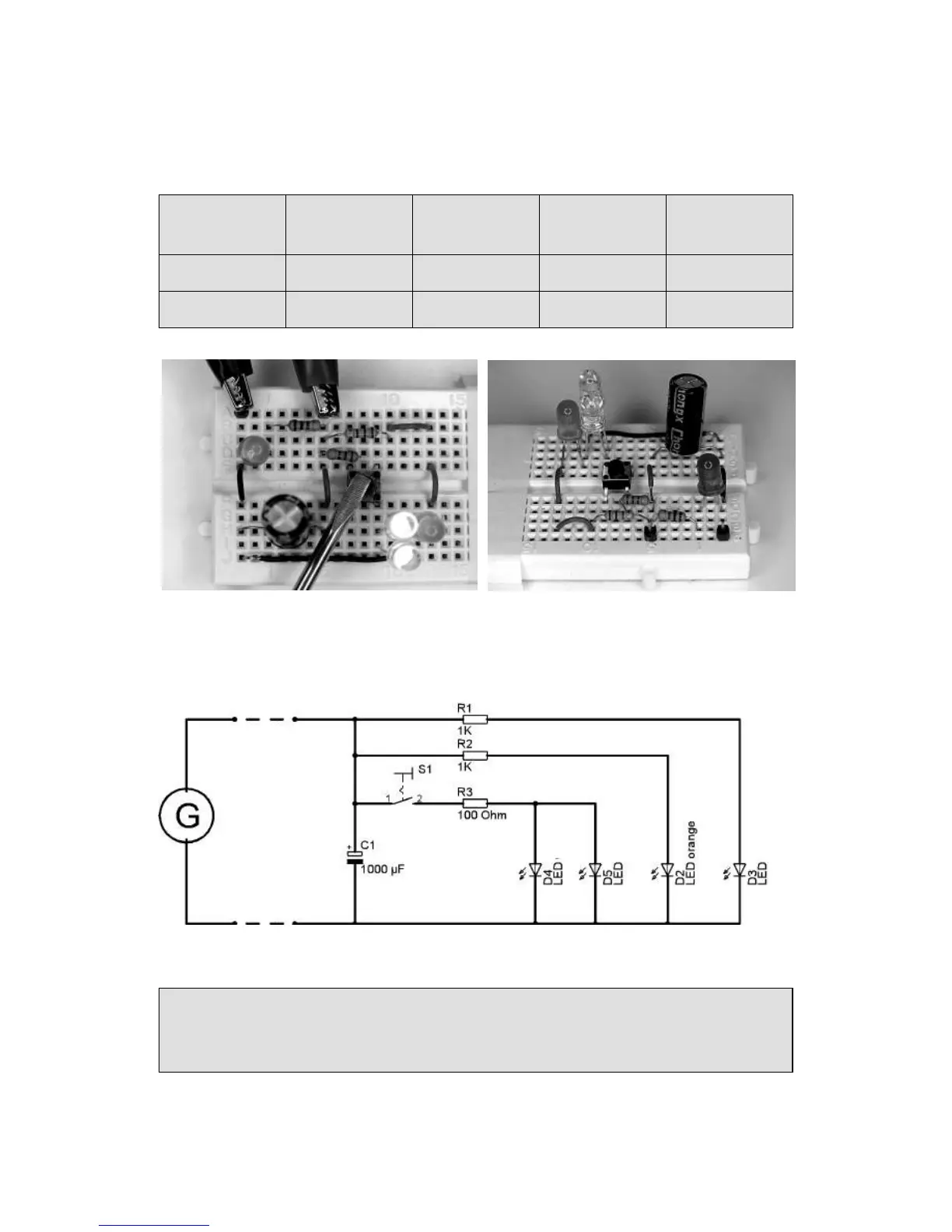

Fig.3.42: Assembly of the bread board and b) detail of the assembly (a
picture taken from the other side)
Fig.3.43: circuit diagram with more LEDs
Note: When the steam engine is decelerating one can try to slow down the
fly wheel, even hold it for a short while and then start it again. The LEDs
then will shine brighter again.
white
white
red
