Wilo Control SC-L - Menu 3: Pump activation (continued); Menu 4: Display of current settings and basic switchgear data; Menu 5: Basic switchgear settings; Basic settings

Installation and operating instructions Wilo-Control SC-L 43
OPERATION AND FUNCTION English

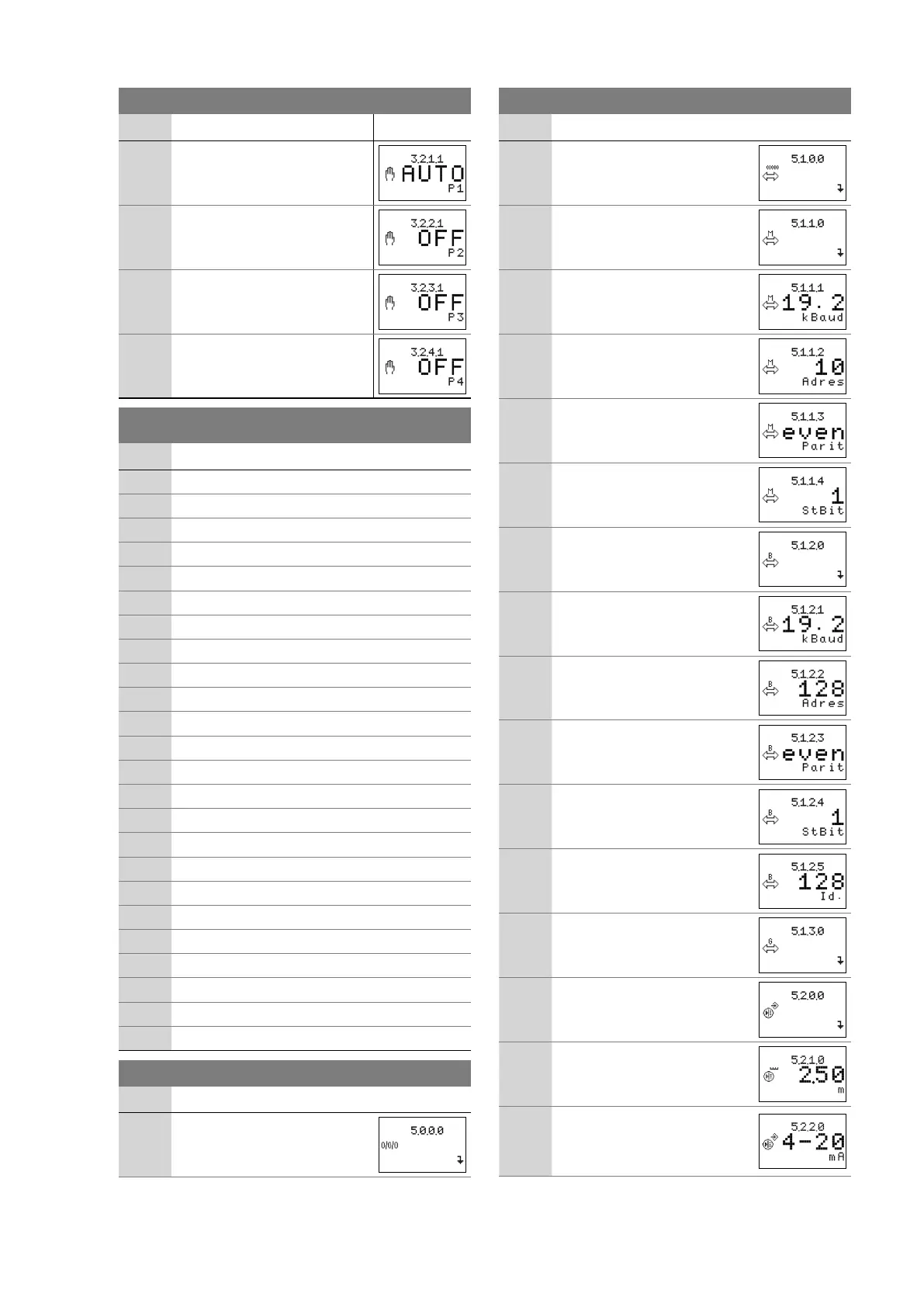

Menu 3: Pump activation
No. Description Display
3.2.1.1
Operating mode, pump 1
Values:OFF,MANUAL,AUTO
Factorysetting:AUTO
3.2.2.1
Operating mode, pump 2
Values:OFF,MANUAL,AUTO
Factorysetting:AUTO
3.2.3.1
Operating mode, pump 3
Values:OFF,MANUAL,AUTO
Factorysetting:AUTO
3.2.4.1
Operating mode, pump 4
Values:OFF,MANUAL,AUTO
Factorysetting:AUTO
Menu 4: Display of current settings and basic switchgear
data
No. Description
4.1.0.0
Current operating values
4.1.1.0
Current level
4.1.2.0
Current control values
4.1.2.1
Base-load pump on
4.1.2.2
Base-load pump off
4.1.2.3
Peak-load pump 1 on
4.1.2.4
Peak-load pump 1 off
4.1.2.5
Peak-load pump 2 on
4.1.2.6
Peak-load pump 2 off
4.1.2.7
Peak-load pump 3 on
4.1.2.8
Peak-load pump 3 off
4.1.4.0
Limit values
4.1.4.1
Dry-running protection level
4.1.4.2
High water alarm level
4.2.0.0
Operating data
4.2.1.0
Total running time of the system
4.2.2.x
Running time of the individual pumps
4.2.3.0
Unit switching cycles
4.2.4.x
Switching cycles of the individual pumps
4.3.0.0
Details of switchgear
4.3.1.0
Switchgear type
4.3.2.0
Serial number (as ticker format)
4.3.3.0
Software version
4.3.4.0
Firmware version
Menu 5: Basic switchgear settings
No. Description Display
5.0.0.0
Basic settings
Menu 5: Basic switchgear settings
No. Description Display
5.1.0.0
Communication
5.1.1.0
Modbus
5.1.1.1
Baud rate
Values:9.6,19.2,38.4,76.8
Factorysetting:19.2
5.1.1.2
Slave address
Valuerange:1to247
Factorysetting:10
5.1.1.3
Parity
Values:even,non,odd
Factorysetting:even
5.1.1.4
Stop bits
Values:1,2
Factorysetting:1
5.1.2.0
BACnet
5.1.2.1
Baud rate
Values:9.6,19.2,38.4,76.8
Factorysetting:19.2
5.1.2.2
Slave address
Valuerange:1to255
Factorysetting:128
5.1.2.3
Parity
Values:even,non,odd
Factorysetting:even
5.1.2.4
Stop bits
Values:1,2
Factorysetting:1
5.1.2.5
BACnet instance device ID
Valuerange:0to9999
Factorysetting:128
5.1.3.0
GSM**
5.2.0.0
Sensor settings
5.2.1.0
Measurement range
Valuerange:0to12.50
Factorysetting:2.50
5.2.2.0
Sensor type
Values:0-10V,2-10V,0-20mA,
4-20 mA
Factorysetting:4-20mA
