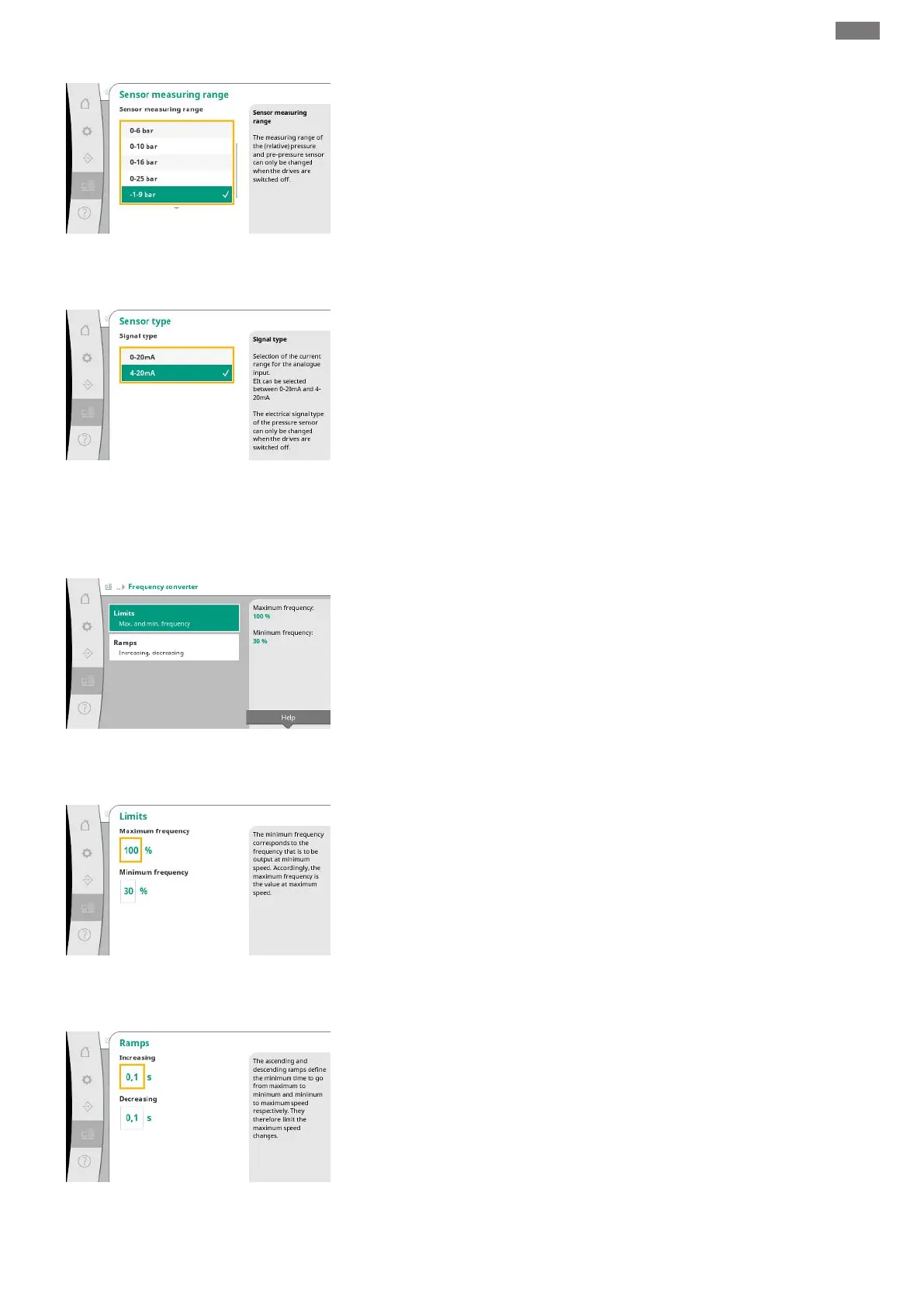

Fig.97: System→Sensors→Sensor measuring
range menu item
Selection of the sensor measuring range of the installed sensor on the input side (supply
pressure/suction side).
Fig.98: System→Sensors→Sensor type
menu item
Setting for the current range of the supply pressure sensor (suction side). At 4-20mA, mon-
itoring for a wire break is possible.
7.2.3.3 System -> Frequency converter
menu
Fig.99: System→Frequency converter menu
item
Certain boundary conditions can be defined for the control of the speed-controlled pumps.
Fig.100: System→Frequency converter-
→Limits menu item
In the p-c control mode, it is possible to restrict the speed range.
This is not possible in the p-v control mode.
Fig.101: System→Frequency converter-
→Ramps menu item
To avoid excessive rapid pressure changes in the installation, the speed of the speed change
can be limited. The setting can be made separately for rising and falling speeds.
