WINCODE C342 - Page 14

C34 USER MANUAL
- 14 -

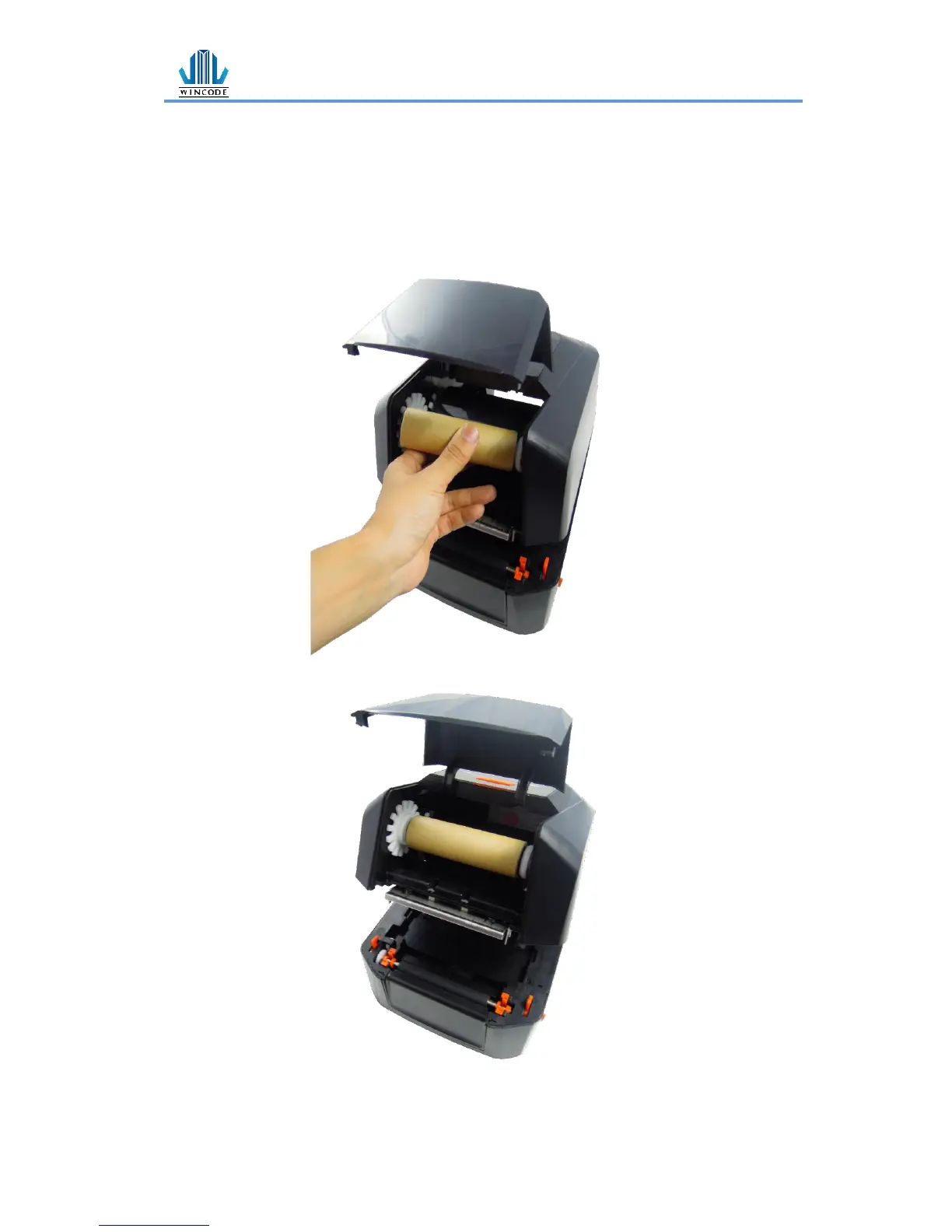

3) Load the right side of paper core first into the ribbon take-up mechanism.
The left side of ribbon take-up spindle needs to be connected with bulge part of
take-up mechanism completely. (Turn the gear until the bulge part in the notch
of spindle).
