WINCODE C342 - Optional Peeler Module Installation

C34 USER MANUAL
- 23 -

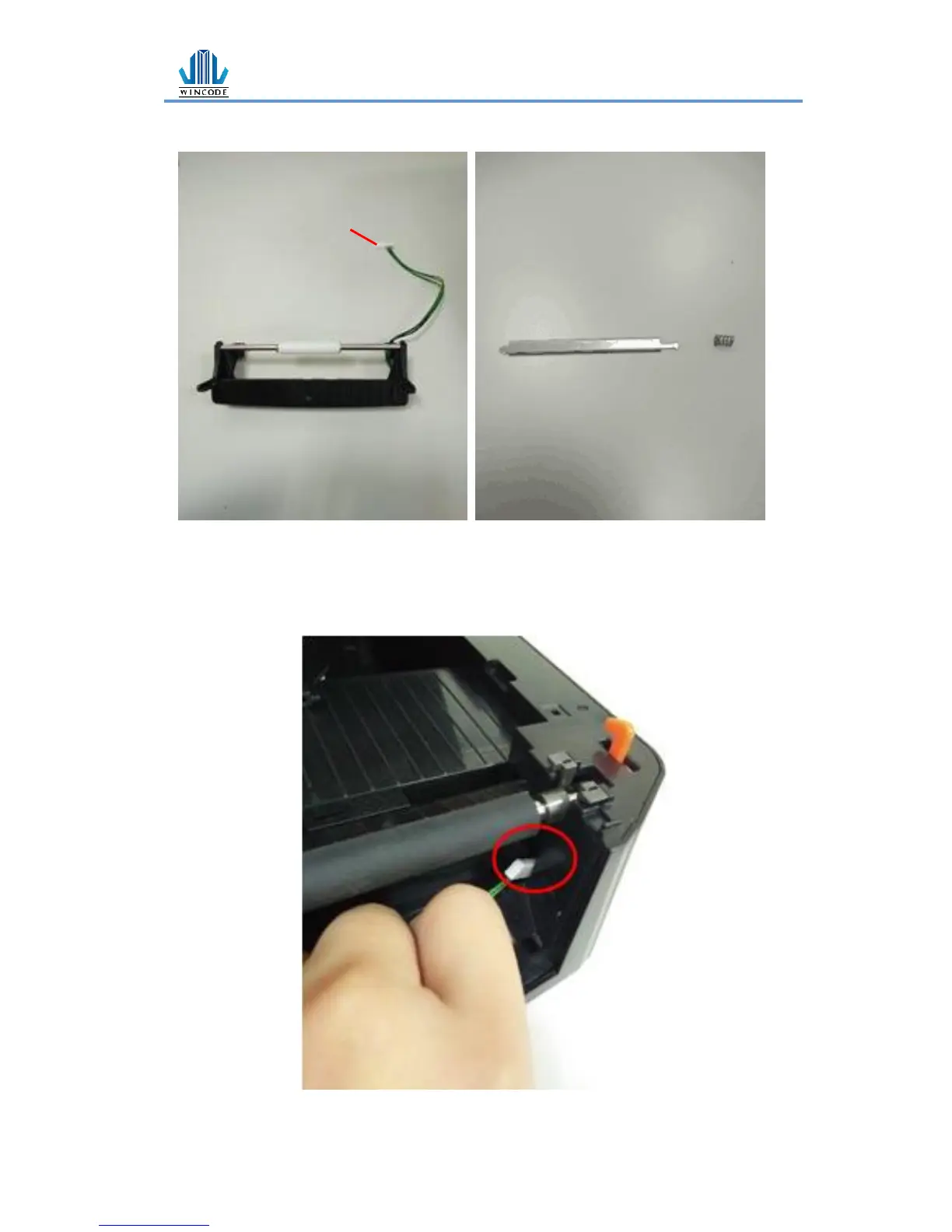

2.5 Peeler Installation (Optional)
1) Turn off the power and disconnect all the cables attached.
2) Open the up cover and take off the front cover.
3) Place the cable into the cable trough at the right.
The iron piece and spring
The peeler module
The cable
