Windhager LogWIN LWP 180 - Installing the Cladding

12
For the Installer
2.5 Installing the cladding
4
3
2
1
5 6 7 8
9
10
11
12
13
14
15
16
17
18
20 19
22 21
1 Cladding door
2 Cladding door cover
3 InfoWIN
4 Left side panel
5 Cover for cladding door switch
6 Control panel complete
7 Front boiler cover
8 Rear boiler cover
9 Connecting bracket cladding
(for LWP 360 – 500 only)
10 Top insulation
11 Insulation flue outlet
12 Retaining bracket for blower
plug
13 Rear wall top
14 Rear wall bottom
15 Air control
16 Lever for cleaning heating sur-
faces
17 Hanger
18 Side panel right
19 Magnetic catch (2 pcs.)
20 Hook-in plate ash pan
21 Bracket for door hinges (2 pcs.)
22 Door hinge (2 pcs.)

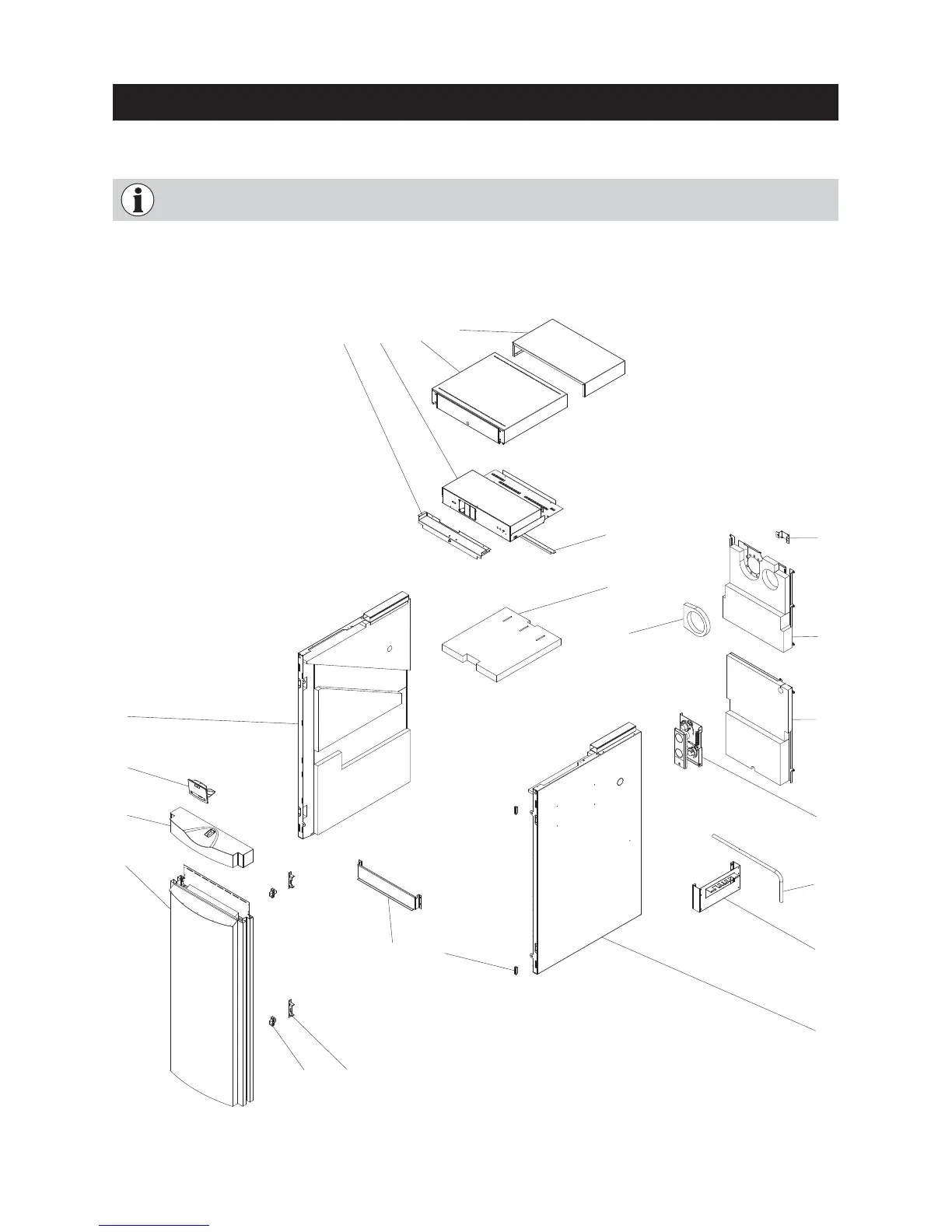

Fig. 7 Insulation and cladding parts
All cladding parts must be fitted in full for air guidance and the dissipation of heat on the boiler.
The cladding comprises the following parts:
