For the Installer
2.1 Delivery, packaging
2.1.1 LogWIN
Boiler covered with a plastic sack.
The cladding, control panel and small parts can be found in the 4 cardboard boxes and in the filler chamber.
2.1.2 Optional accessories
Fitted in control panel, if ordered:
– MES system control (installed and pre-wired)
Supplied with the boiler if ordered:
– Thermal process safeguard – FK-060
– Energy-saving intake regulator
– Return hold-up group – SK RH or SK RH 54
– Motorised mixing valve, mixer groups, heating distributor
FAX 090 cleaning package comprising: vacuum cleaner, magnetic flashlight, gloves and apron

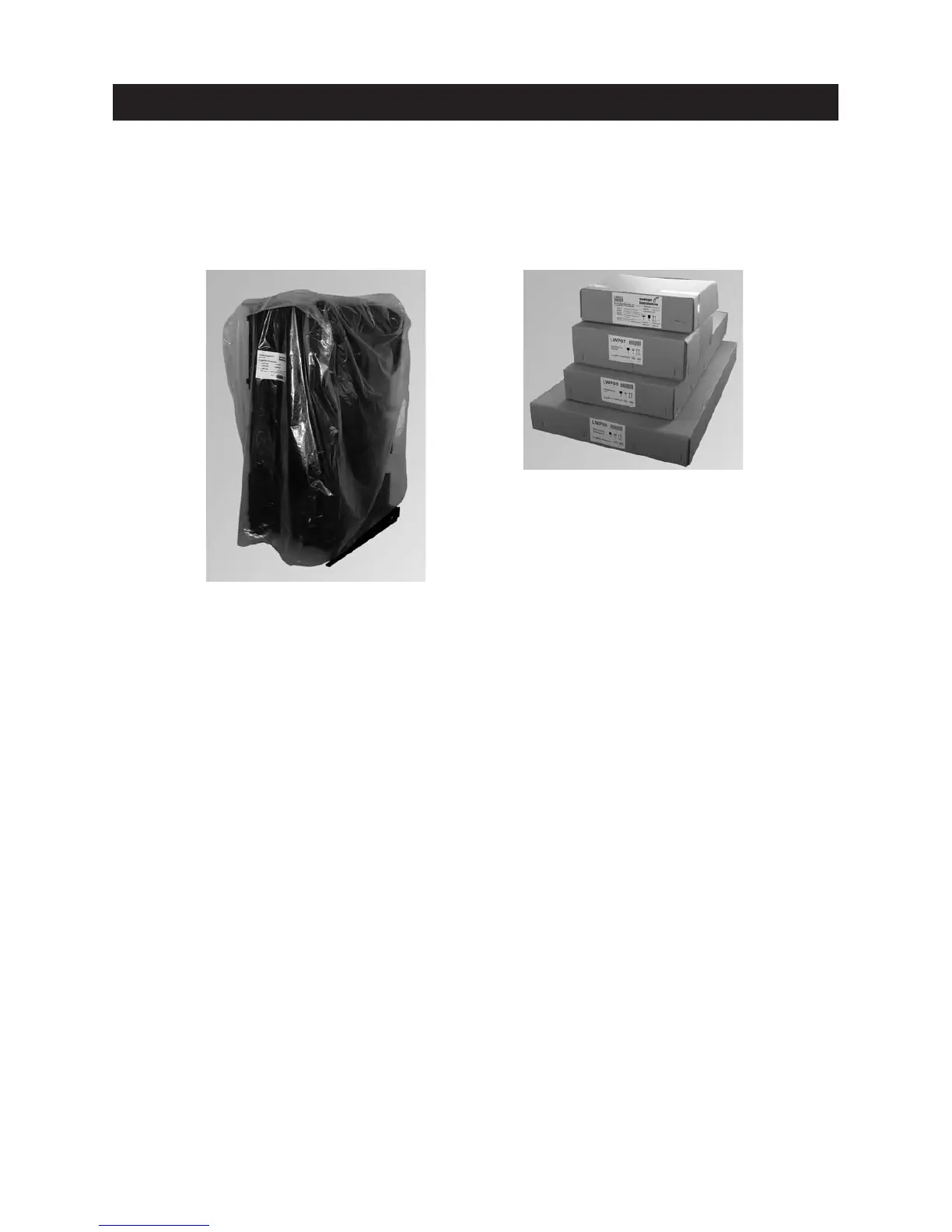

Fig. 2 LogWIN boiler 180 – 500
Fig. 3 Cladding and control panel in 4 cardboard boxes.
In the filling chamber:
– Instruction booklets
– Screws and small part
– Top insulation
– Air control
– Connecting bracket cladding
(for LWP 360 – 500 only)
– Hanger
– Cleaning tools
– Ash pan
In cardboard box no. 1 (LWP03):
– Control panel complete
– InfoWIN (display/operating module)
In cardboard box no. 2 (LWP06):
– Side panel left
– Side panel right
In cardboard box no. 3 (LWP09/LWP10):
– Insulation flue outlet
– Rear wall top
– Rear wall bottom
– Hook-in plate ash pan
– Lever for cleaning heating surfaces
– Cladding door
– Cover for cladding door switch
In cardboard box no. 4 (LWP07/LWP08):
– Cladding door cover
– Front boiler cover
– Rear boiler cover
