Windsor Saber Glide SG28 Operator Instructions

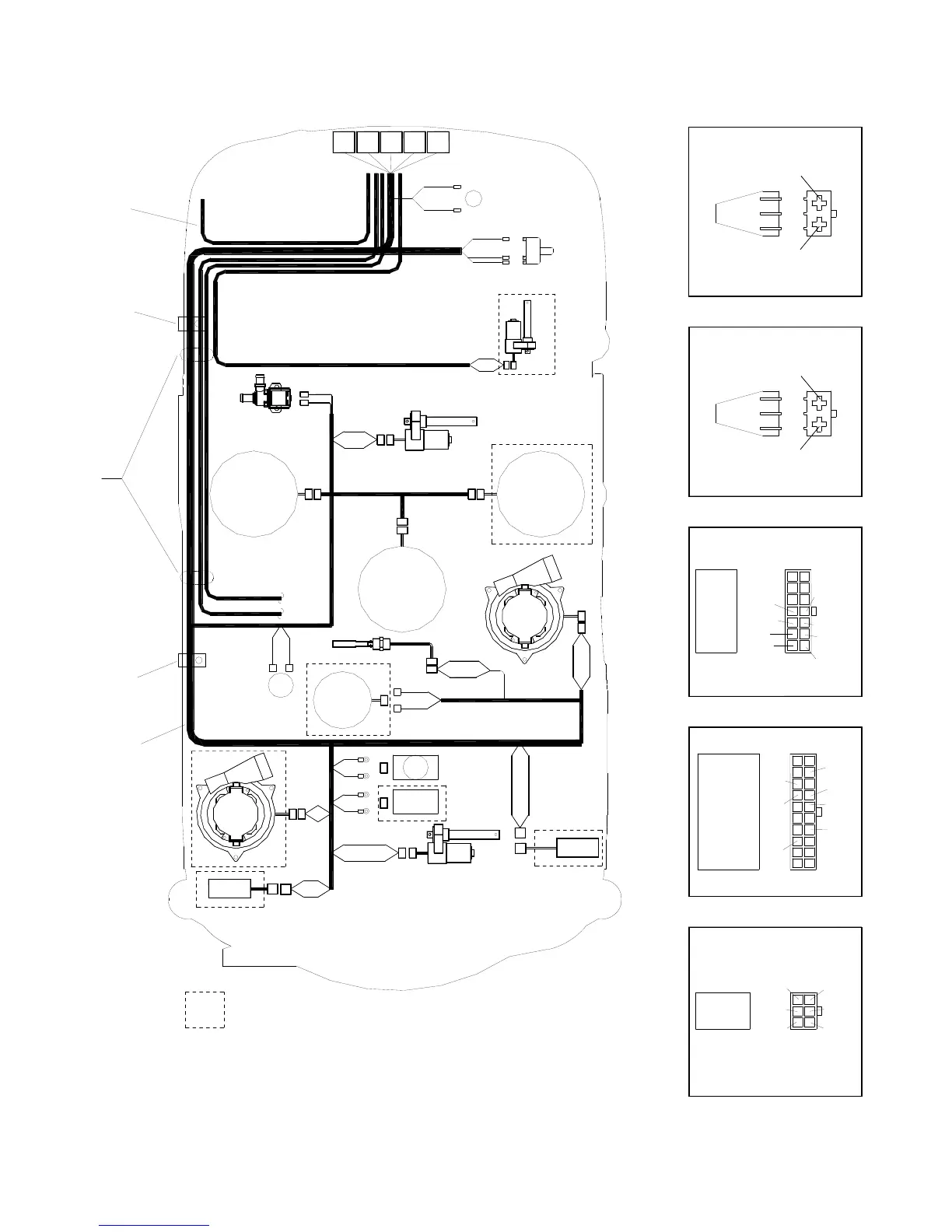

WIRING-MAIN HARNESS
86037580 GLIDE 01/03/07
5-61
22A RED
21A RED
PUMP
88 RED
24A ORG
2
ACCY
87 BLK
73 BLK
72 RED
SQUEEGEE LIFT
4C WHT-ORG
3A WHT-BLK
ACTUATOR
HORN
ALARM
65A BLU
64B RED
RUN
LIGHT
SEAT
SWITCH
86A RED
23A ORG
85A BLK
19A GRY
14A GRY
3 WHT
29 GRN
30 RED
31 WHT
DIAGRAM E
28 BLU
27 ORG
26 BLK
3 WHT-BLK
66 RED
67 ORG
64 RED
DIAGRAM D
67A BLK 66C RED
71C BLK 70C RED
65 BLU
16 WHT
14 ORG
7 BLK
19 GRY
4 WHT-ORG
68 YLW
69 BLK
33A ORG
34A BLU
77A BLK 74 RED
BRUSH
2
MOTOR
5A LT-BLU
MOTOR
BRUSH
1
75B BLK
76C RED
SOLENOID
VALVE
69A BLK
ACTUATOR
81 BLK
80 RED
SCRUB LIFT
6C WHT-YLW
68 YLW
103A LTBLU
102A BRWN
DECK SHIFT
ACTUATOR
21 RED
5 LTBLU
DIAGRAM C
VAC
1
MOTOR
3
MOTOR
BRUSH
VACUUM
6 WHT-YLW
71 BLK
70 RED
DIAGRAM A
DIAGRAM B
BRUSH
75 BLK
76 RED
A B CDE
22
35A
BRAKE SWITCH
COM
NO
6
2, 3, 4
5
2, 3, 4
1
INDICATES OPTIONAL ACCESSORY
ONLY
36 INCH
36 INCH
ONLY
POSITIVE
BATT CABLE
NEGATIVE
BATT CABLE
RECYCLE
PUMP
VAC
MOTOR
