Maintenance5552−1/A1
RT-flex58T-E
Winterthur Gas & Diesel Ltd.
2/ 3
B
C
586
10
012.977/05
7
6
9 4
5
MA
4
3
I - I
SB
I
I

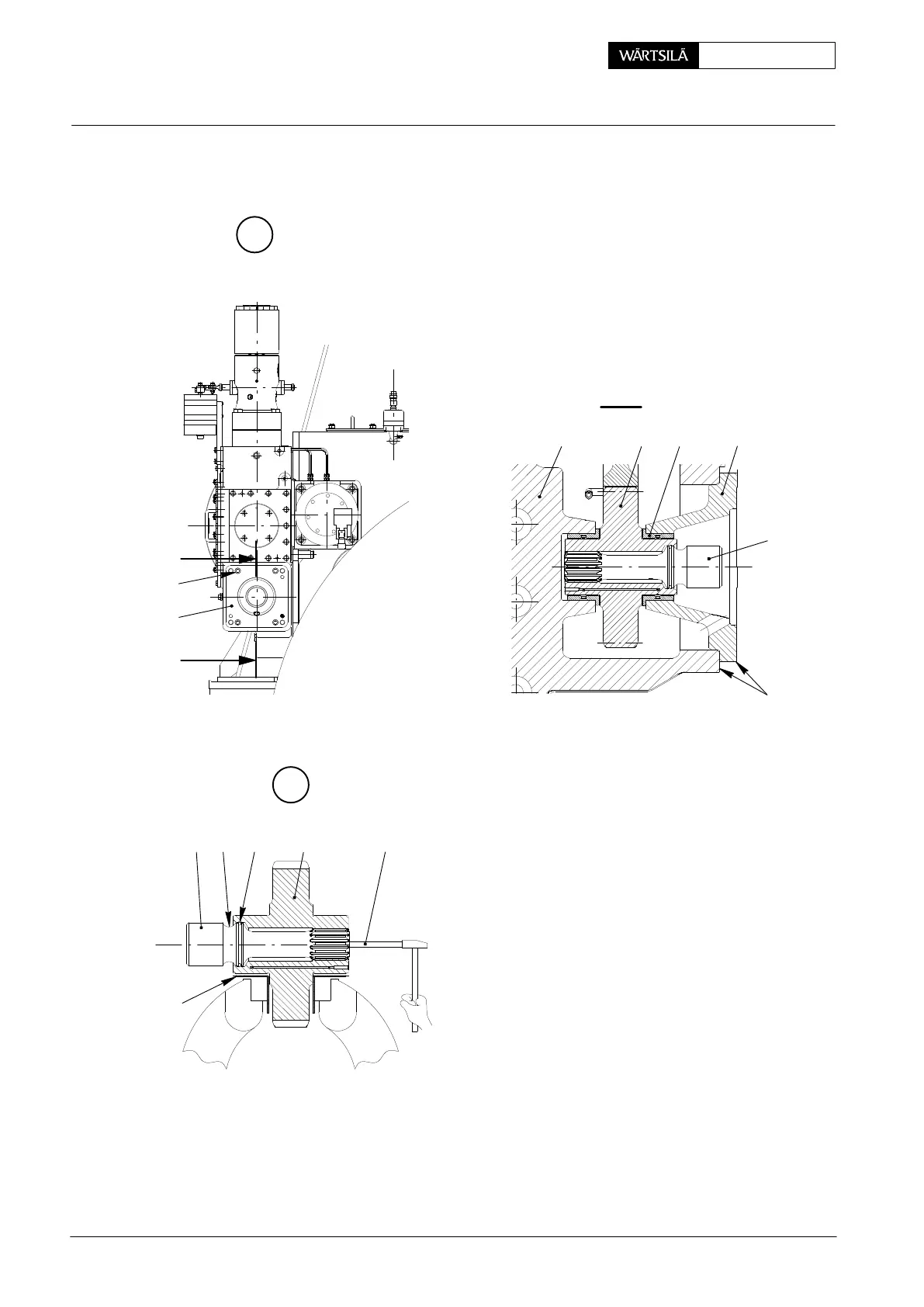

2.2 Removal of shaft
⇒ Clamp pinion 6 and shaft 5 into a vice.
⇒ Using a hammer and copper rod 1
strike onto the shaft until the latter with
snap ring 8 comes off the pinion.
PROTECTION
2.1 Removal of pinion
⇒ Loosen screws 3 and remove pump
support 4.
⇒ Withdraw shaft 5 together with pinion 6
from housing 7.
2013
Supply Unit: Removal and Fitting of Servo Oil Pump and Servo Oil Pump Drive
