WinGD WARTSILA RT-flex58T-E User Manual

Maintenance
6708−1/A2
RT-flex58T-E
Winterthur Gas & Diesel Ltd.
3/ 3
4. Cleaning
The water separator should be cleaned with the same media as used for cleaning
the scavenge air cooler in operation.
D Do not use any sharp tools for cleaning.
5. Fitting
D Before fitting the water separator, its location in the scavenge air receiver
must be thoroughly cleaned and the water drains checked for free flow.
⇒ Apply a high-temperature (approx. 300 _C) silicone jointing compound e.g.
COLTOGUN to all seating faces ’AF’, thus avoiding an air bypass between
frame and wall.
⇒ Lift water separator 3 by means of manual ratchets ’H1’ and fit (loose) screws
12 together with sleeves 13, pressure springs 14 and discs 15.
⇒ Pull water separator up until it rests on sleeves 13 (paying attention to clear-
ance ’x
1
’ on bottom side), i.e. that it not protrudes anymore (distance ’x’)
compared with receiver 1.
⇒ Fasten intermediate flange 6 with screws 5 and carefully lower water separa-
tor onto the intermediate flange.
⇒ Tighten screws 12.
⇒ Fit and tighten screws 7 together with spring washer 8 and tension sleeves 9.
⇒ Remove manual ratchets ’H1’.
⇒ Fit cover 11. Close door 16 and hinged cover 4, and reconnect couplings 17.

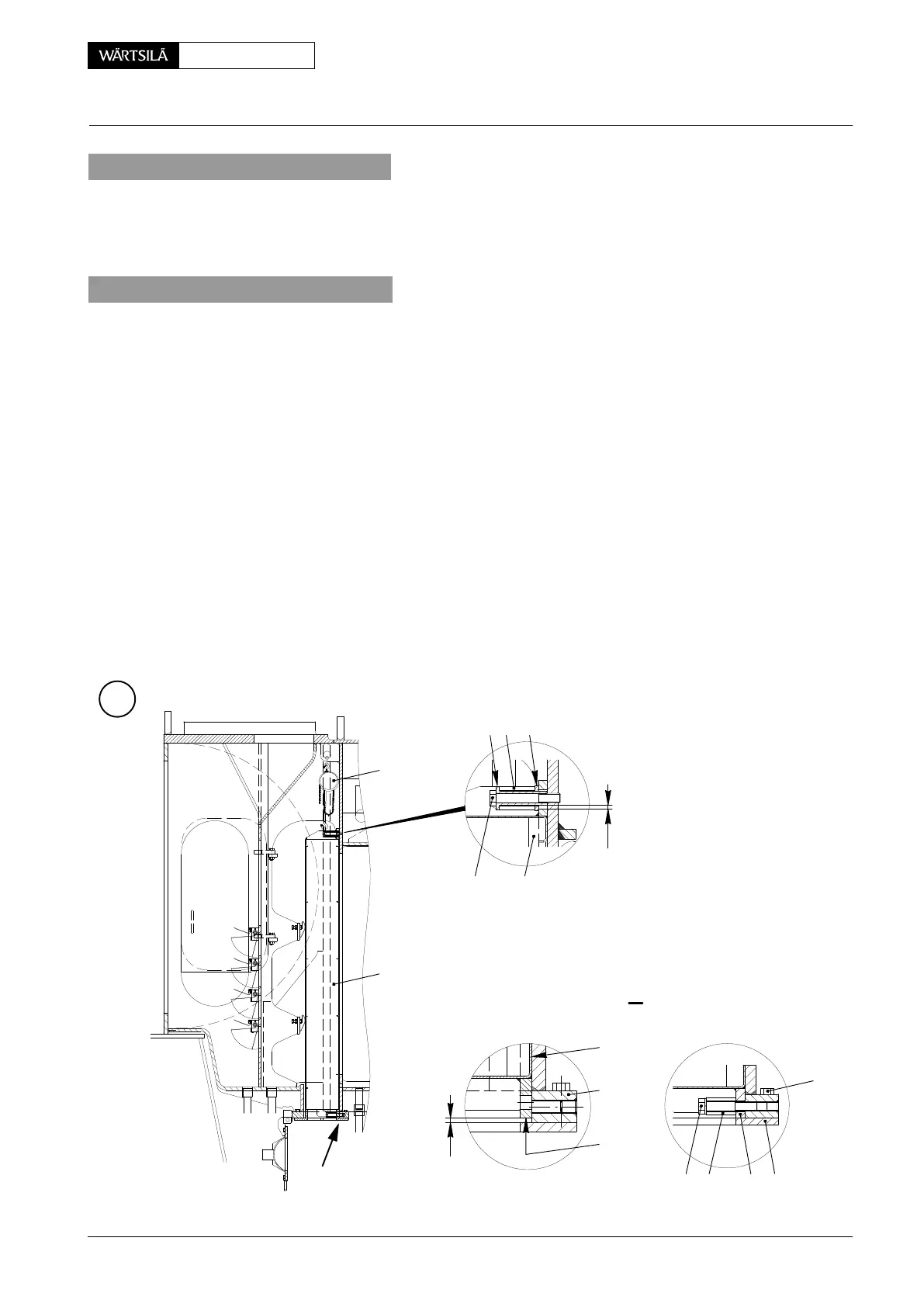

C
018.196/09
x
5
7,8
936
AF
AF
H1
1
010.974/03
I
I
1413
15
12
3
3
2013
Maintenance of Water Separator 2-part Water Separator
