4. Removal of camshaft

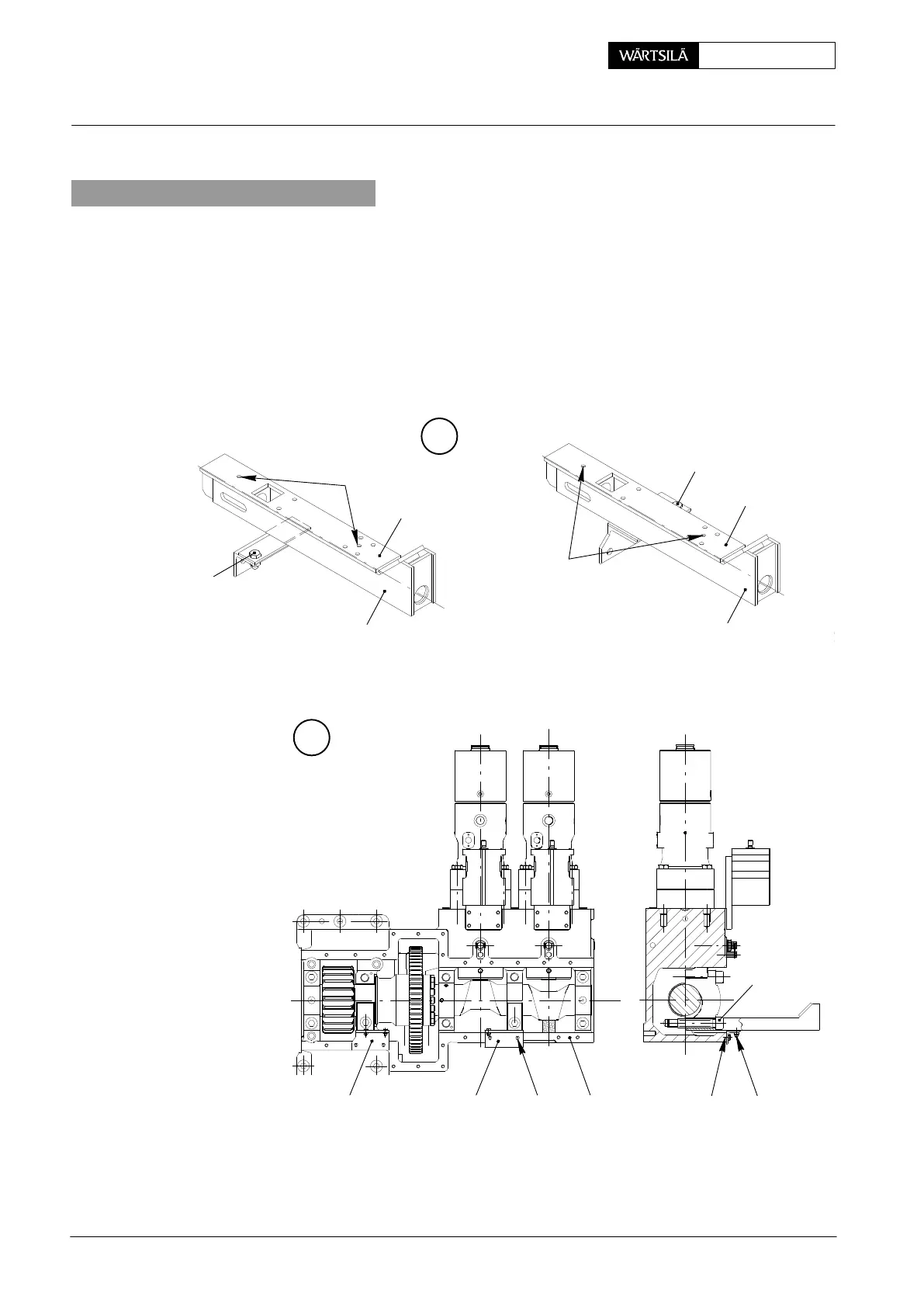

4.1 Removal of supports
⇒ Loosen screws 13 and remove covers 14 from supports 94566 and 94566A.
⇒ Loosen screws 15 a bit.
⇒ Fasten supports 94566 and 94566A to housing 10 as follows, using:
− elastic screws 7 belonging to the bearing cover as shown in Fig. ’G’ and
− screws 16 (to cover 3 in Fig. ’A’) and then tighten screws 15.
F
13
013.132/05
13
15
14
94566A
15
14
94566
012.984/05
94566A 94566 16 10
7
16 15
G
2013 / V2
Supply Unit: Removal and Fitting of Camshaft and Bearing Shells
