Maintenance5552−4/A1
RT-flex58T-E
Winterthur Gas & Diesel Ltd.
2/ 3

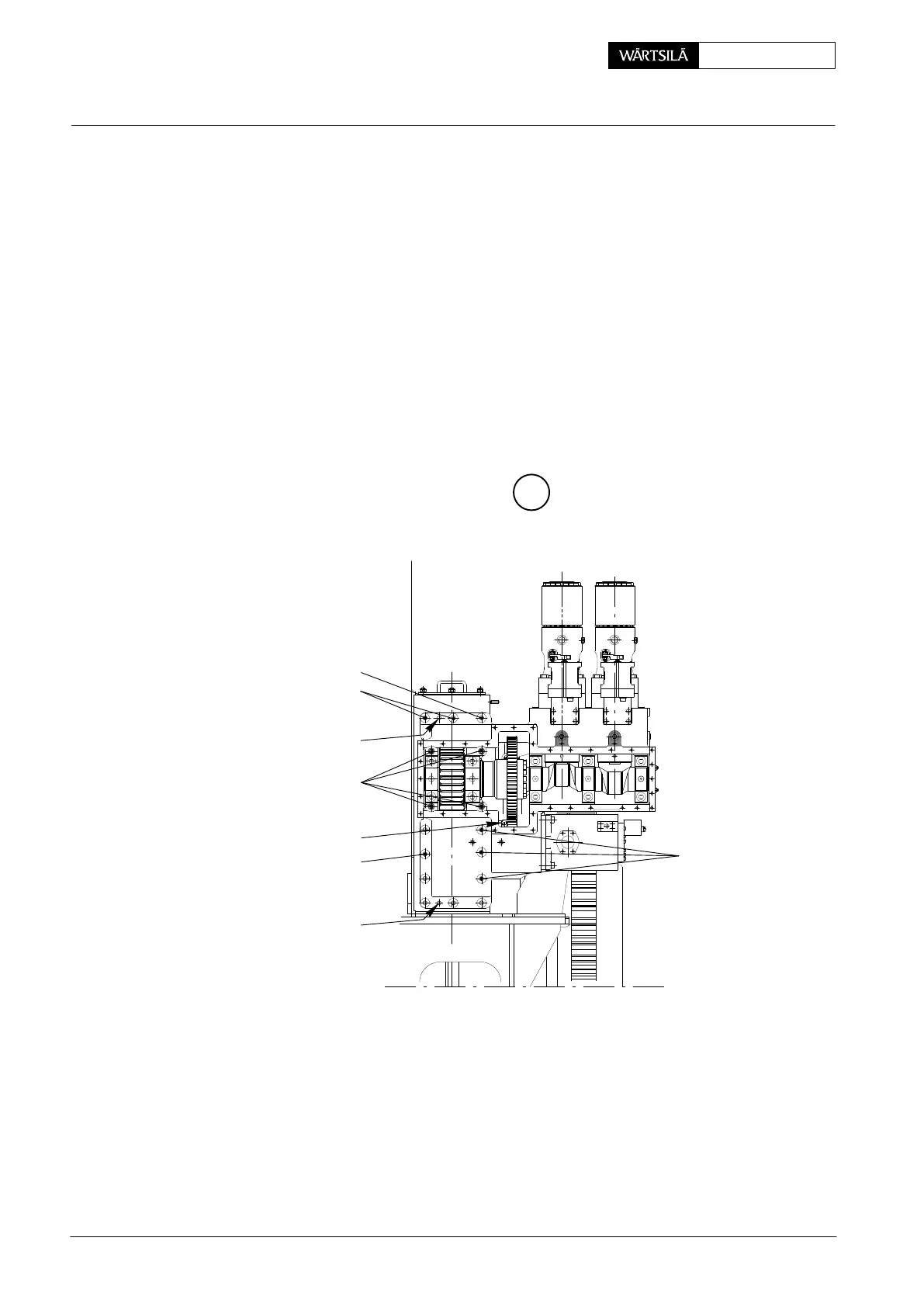

⇒ Screw two RUD-eye bolts 94040−M16 into housing of supply unit 1 as shown
in Fig. ’D’.
⇒ Suspend lifting tool 94557 on manual ratchets ’MR’ (WLL 2000 kg each) and
connect these with RUD-eye bolts.
⇒ Tauten manual ratchets ’MR’.
⇒ Loosen screws 11 and remove them together with the distance sleeves.
⇒ Loosen screws 5, 6, 7 and cap screws 8.
⇒ Bring the supply unit in horizontal position with manual ratchets ’MR’.
⇒ Carefully move supply unit away.
C
013.042/05
7
5
6
8
10
6
4
4
2013 / V2
Removal and Fitting of Supply Unit
