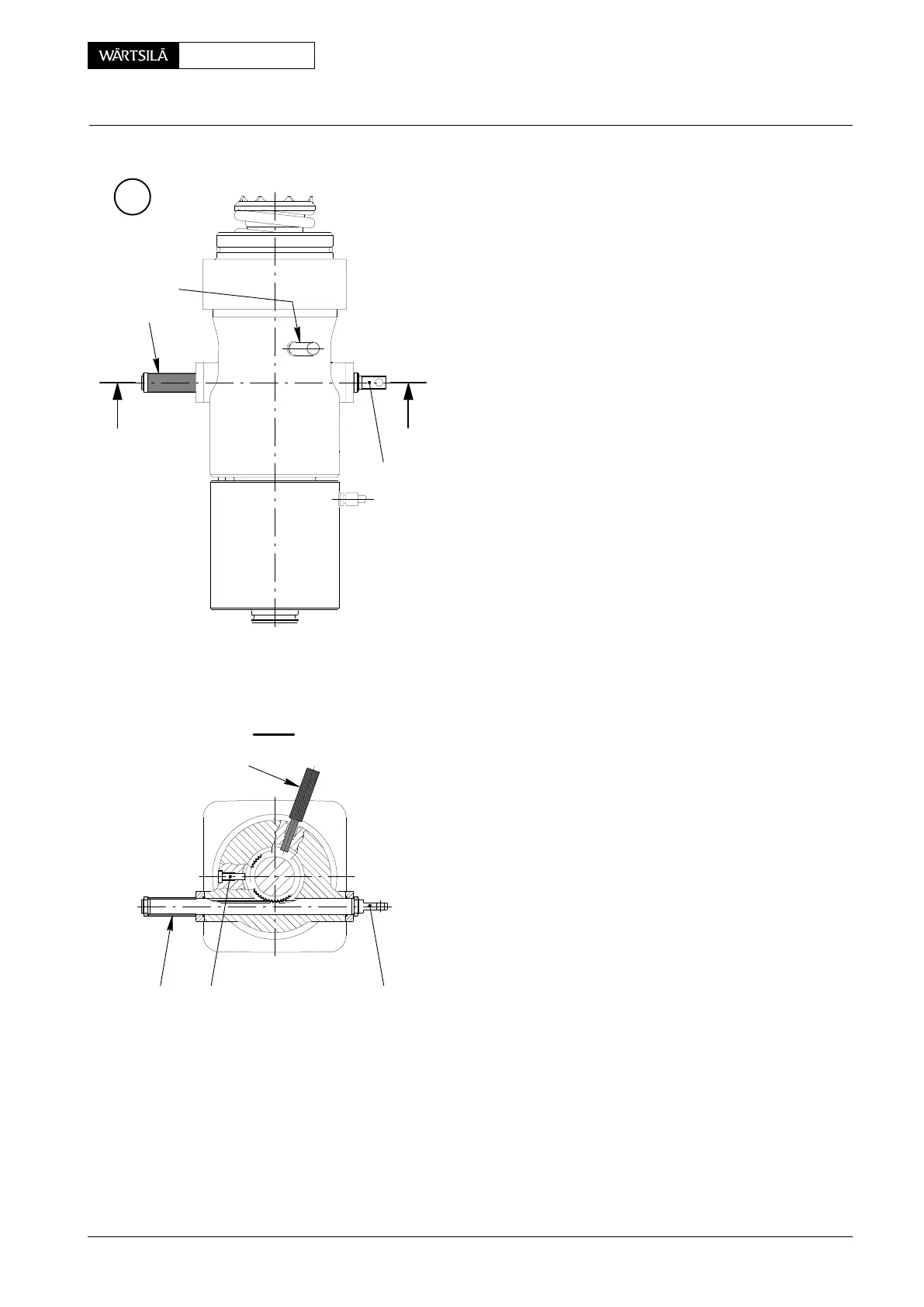

4.7 Checking the plunger position
⇒ Bring regulating rack 25 to the position shown in Fig.
’N’ and place spacer 94555.
⇒ Remove screw plug from the checking bore and in-
sert checking gauge 94556 in its place until the stop.
⇒ Remove spacer 94555 again and check whether
the regulating rack is blocked.
With blocked regulating rack the plunger is correctly
fitted.
⇒ After checking remove checking gauge, refit and
tighten screw plug with Cu-joint.
N
I I
I - I
94556
2094555 25
94555
008.657/00
008.658/00
94556
25
2013
Fuel Pump: Dismantling and Assembling
