Maintenance9223−1/A1
RT-flex58T-E
Winterthur Gas & Diesel Ltd.
18/ 22
8.7 Final fitting the crank angle sensor unit
⇒ Fit housing 46 with joint and fasten with screws 47 (Fig. ’V’).
⇒ Fitting of the crank angle sensor drive according to section 7.
⇒ Carry out final works according to paragraphs 3.4 and 9.1.
9. Checks
The periodical checks must be carried out according to Maintenance Schedule
0380−1 ’Crank angle sensor unit’.
9.1 Lubricating oil flow in the crank angle sensor drive
⇒ Start main lubricating oil pump and adjust bearing oil pressure.
⇒ Remove inspection cover 41.

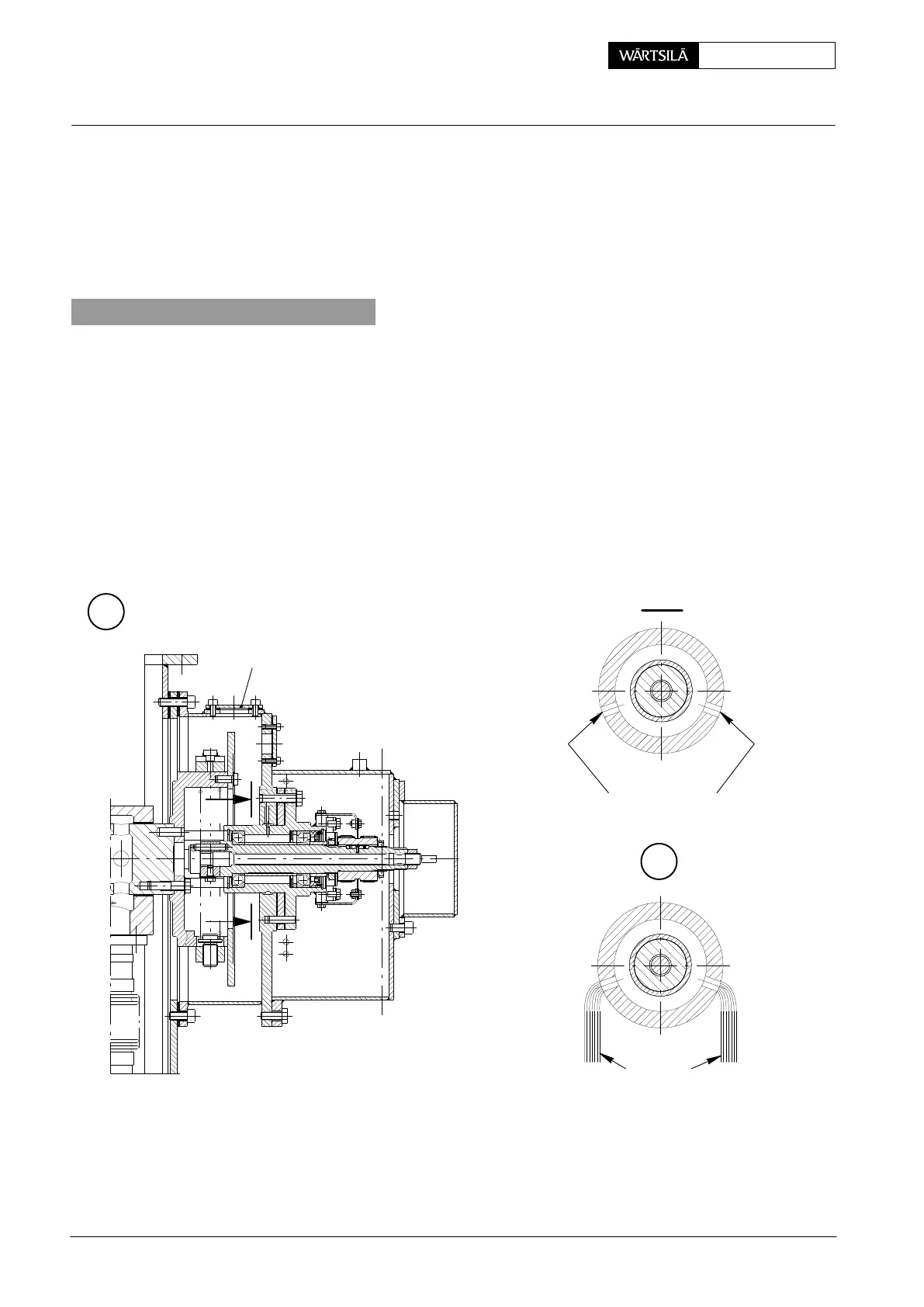

With correct oil flow at operating temperature an oil spray results according to Fig.
’B
1
’. However, the oil outlets should be filled up.
⇒ Refit inspection cover 41.
008.754/01
008.753/01
008.725/00
OIL SPRAY
41
I
I
A
1
OIL OUTLET
I - I
B
1
2013
Crank Angle Sensor Unit: Dismantling, Assembling and Adjusting
