Maintenance9403−5/A1
RT-flex58T-E
Winterthur Gas & Diesel Ltd.
8/ 37

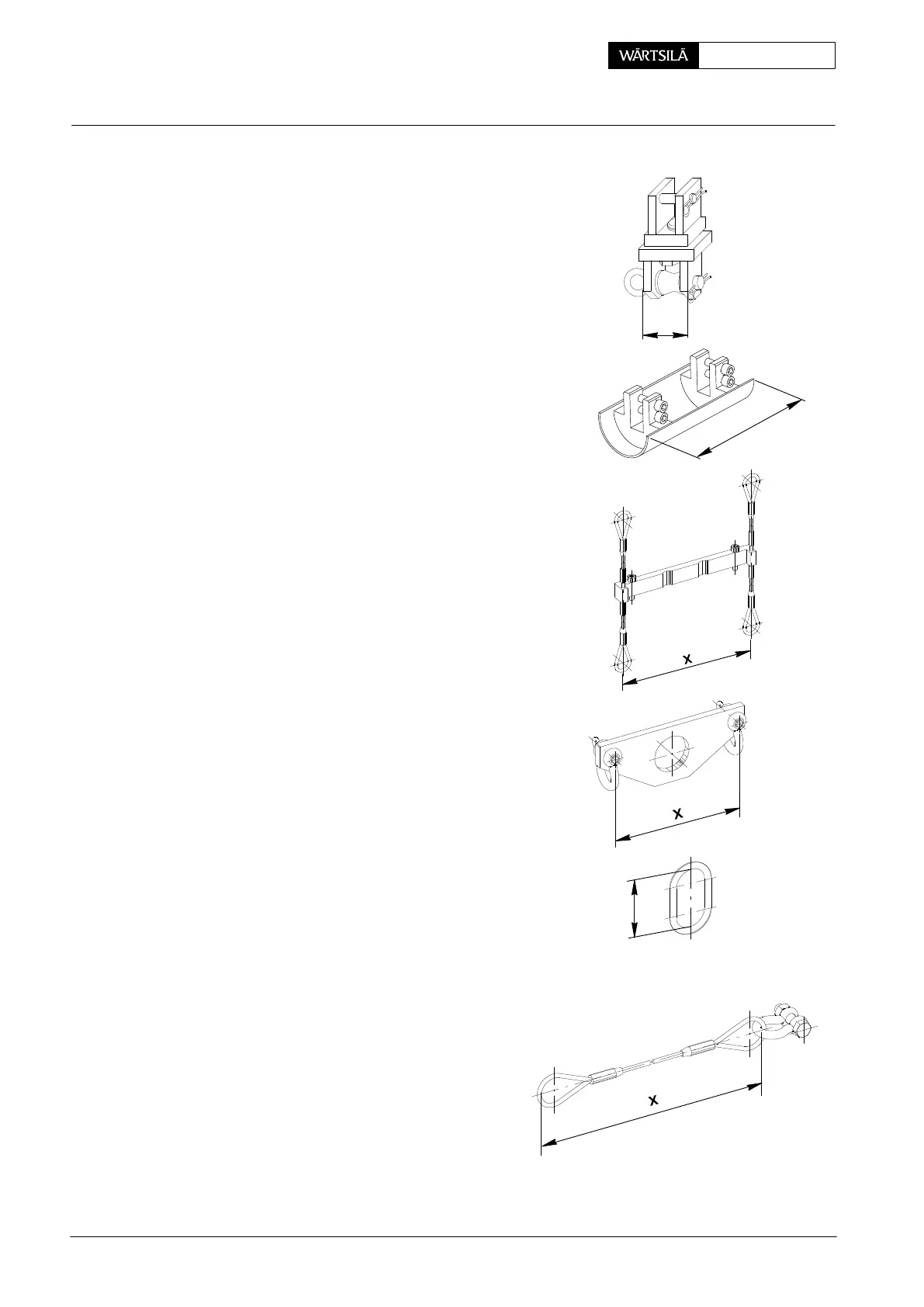

94117 1 Roller support
for removal and fitting of main bearing
X = 74 mm
X
002.788/98
GF 94117A 1 Deviation pipe
for removal and fitting of:
− main bearing cover, shell
− crosshead pin
X = 300 mm
WCH00265
X
94118
94118A
1
1
Turning-out device
for removal and fitting of
main bearing shell
X = 232 mm (for girder width 210 mm)
Turning-out device
for removal and fitting of
main bearing shell
X = 252 mm (for girder width 230 mm)
010.930/03
94119 1 Lifting yoke
for removal and fitting of
main bearing shell
X = 210 mm
005.934/00
94120 1 Eyelet (WLL 1500 kg)
for removal and fitting of
main bearing cover
X = 127 mm
002.785/98
X
94120B
94120C
94120E
94120F
94120G
94120I
Ropes with shackle (WLL 500 kg)
for removal and fitting of
main bearing cover and shell
1 Piece x = 500 mm.....
1 Piece x = 800 mm.....
1 Piece x = 1350 mm.....
1 Piece x = 1500 mm.....
1 Piece x = 1600 mm.....
Rope (without shackle)
1 Piece x = 1300 mm.....
005.932/00
2013 / V2
