TECHNICAL INFORMATION 4.1

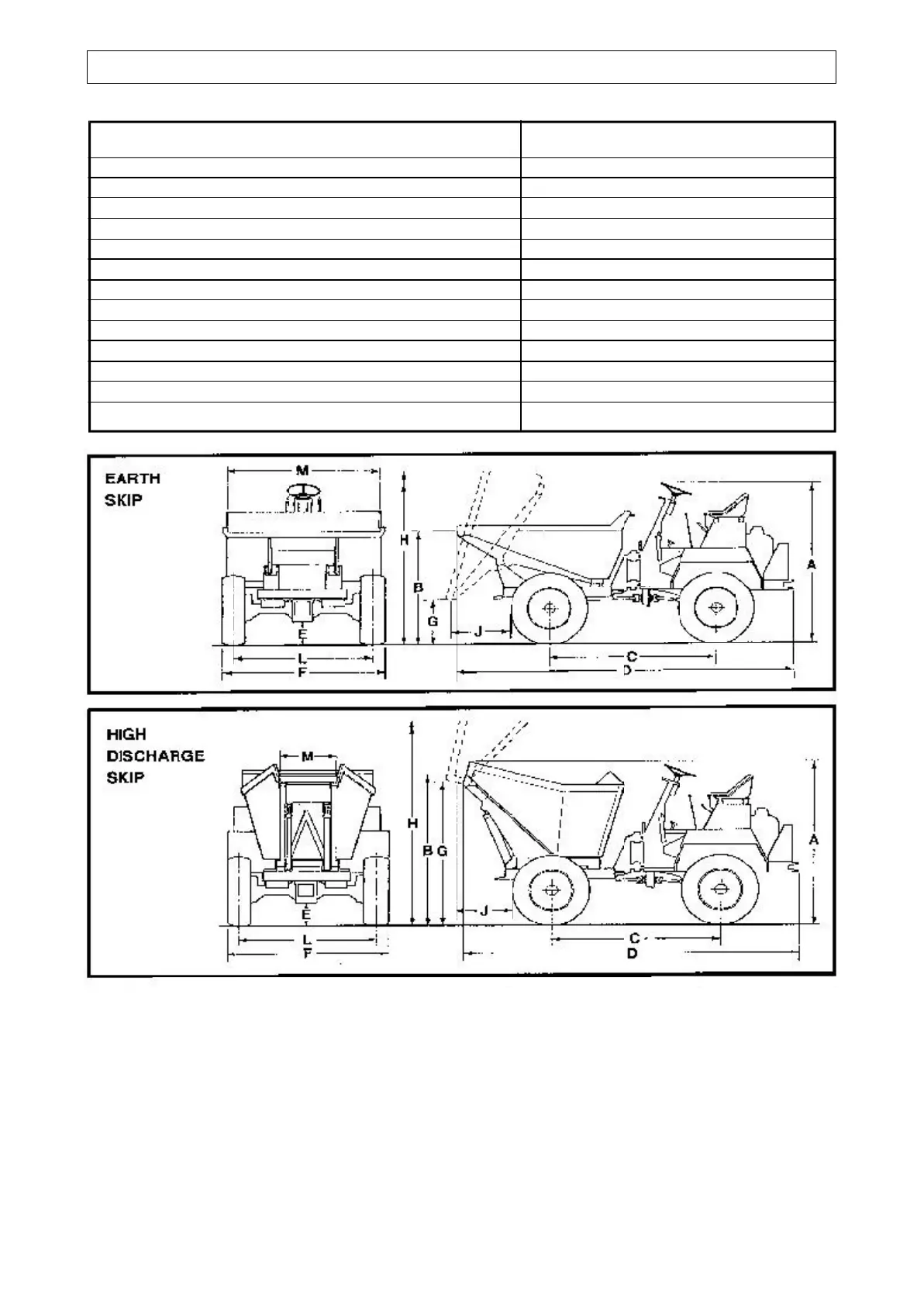

DIMENSIONS
Machine Model Earth skip High discharge
A Overall height 1.83 m 1.83 m
B Skip loading height 1.33 m 1.55 m
C Wheel base 1.79 m 1.79 m
D Overall length 3.55 m 3.27 m
E Ground clearance 0.20 m 0.20 m
F Overall width 1.76 m 1.76 m
G Skip discharge height 0.57 m 1.45 m
H Maximum skip height when tipped 2.31 m 2.73 m
J Skip discharge forward of tyres 0.56 m 0.32 m
L Track 1.53 m 1.53 m
M Skip discharge width 1.42 m 0.67 m
Rear axle articulation 0.30 m 0.30 m
Turning circle 7.45 m 7.45 m
