4.1A TECHNICAL INFORMATION

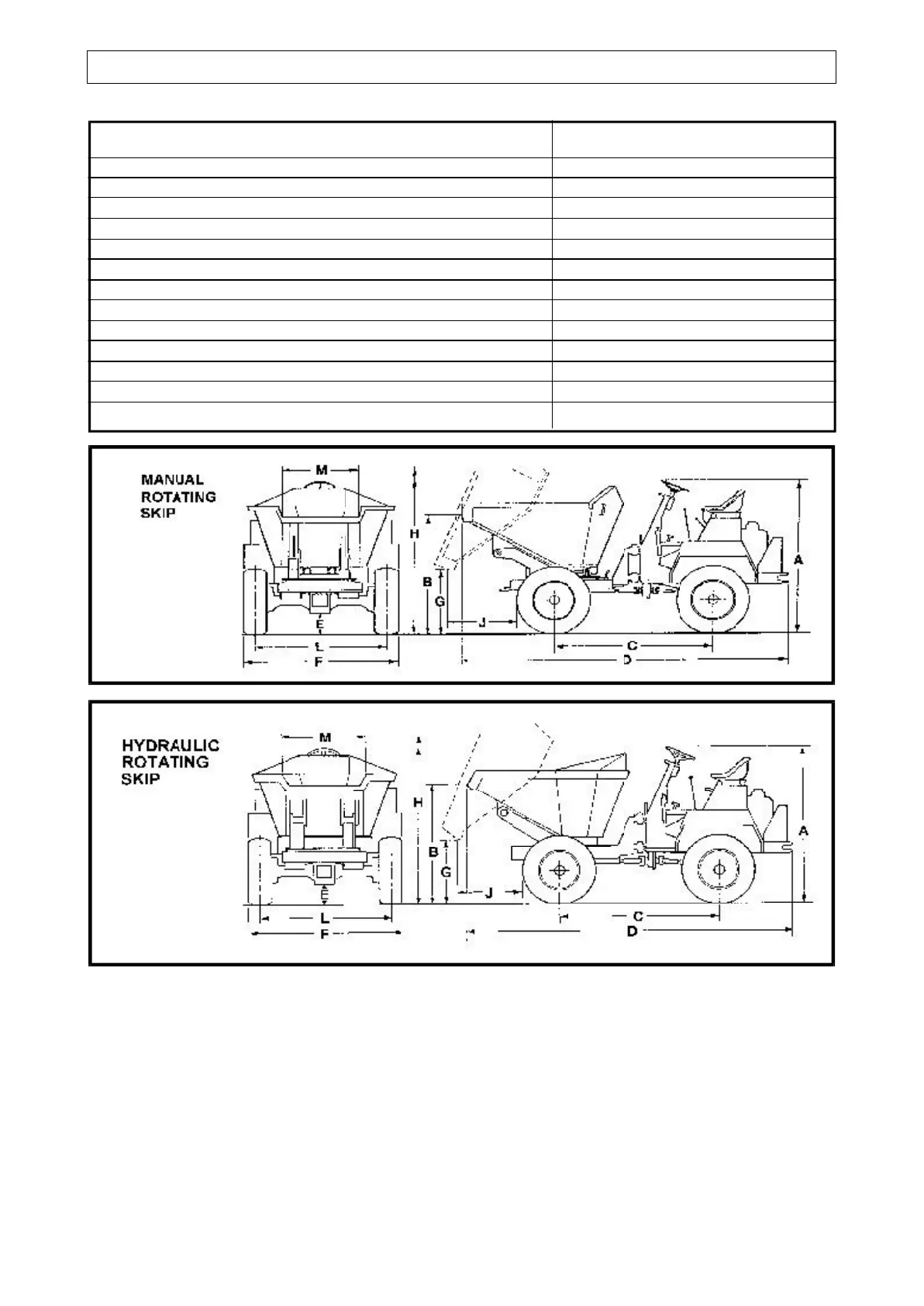

DIMENSIONS
Machine Model Manual rotating skip Hydraulic rotating skip
A Overall height 1.83 m 1.83 m
B Skip loading height 1.44 m 1.35 m
C Wheel base 1.79 m 2.10 m
D Overall length 3.71 m 3.67 m
E Ground clearance 0.20 m 0.20 m
F Overall width 1.76 m 1.76 m
G Skip discharge height 0.57 m 1.33 m
H Maximum skip height when tipped 2.48 m 2.77 m
J Skip discharge forward of tyres 0.71 m 0.30 m
L Track 1.53 m 1.53 m
M Skip discharge width 0.51 m or 1.07 m 1.40 m
Rear axle articulation 0.30 m 0.30 m
Turning circle 7.45 m 8.20 m
