IB70 Motherboard User Manual
15

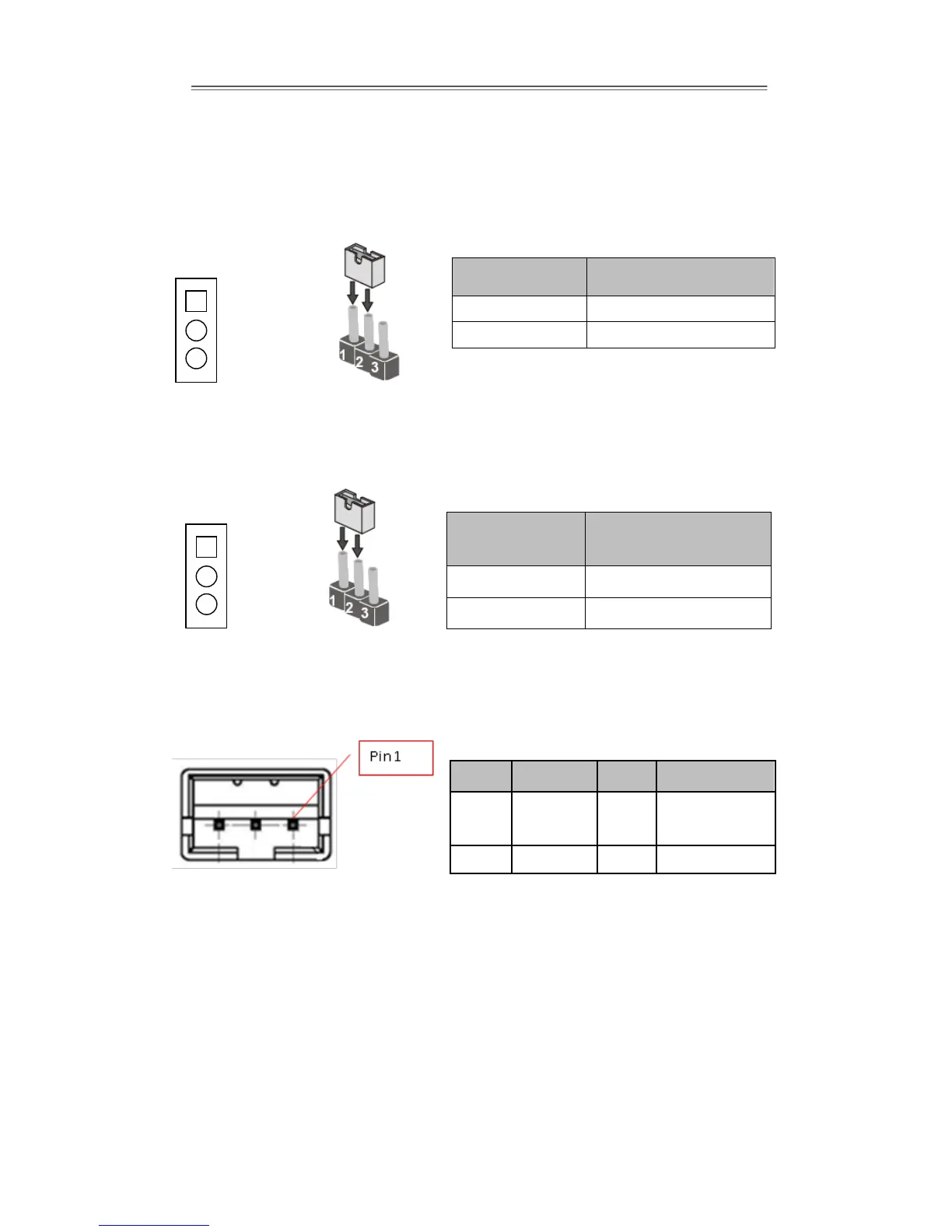

2.4.2 Setting Jumpers
JP1: Inverter Voltage Select
*Default
JP2: Inverter Enable Select
*Default
JP3: Backlight Control VR
Setting
Function
1-2*
5 V
2-3
12 V
Setting
Function
1-2*
Control to BLON
2-3
Normal (Always)
Pin №
Name
Pin №
Name
1
+5V
2
Black Light
Control
3
GND
3
2
1
3
2
1
