IB70 Motherboard User Manual
16

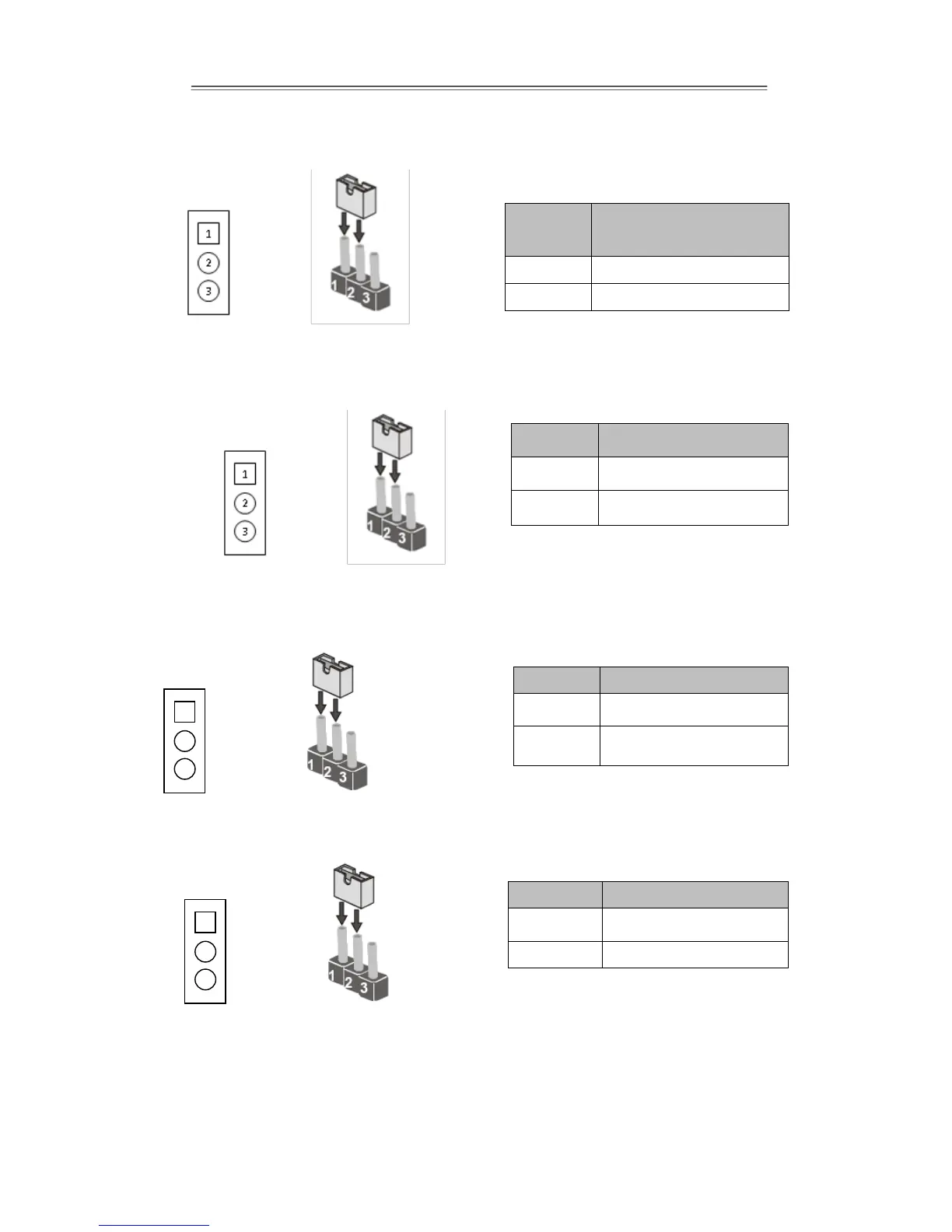

JP4: DC Mode Control Selector
*Default
JP5: From SoC Brightness PWM Voltage Selector
*Default
JP6: Brightness Control Selector
*Default
JP7: Brightness Control to VRD Selector
*Default
Setting
Function
1-2
VR knob Control to VRD
2-3*
VR knob Control to SBC
Setting
Function
1-2*
+ 3.3V
2-3
+ 5.0V
Setting
Function
1-2
Adjust by VR Knob
2-3*
PWM Mode
Setting
Function
1-2
WM to DC mode by
software
2-3*
VRD Control Mode
3
2
1
3
2
1
