IB70 Motherboard User Manual
31

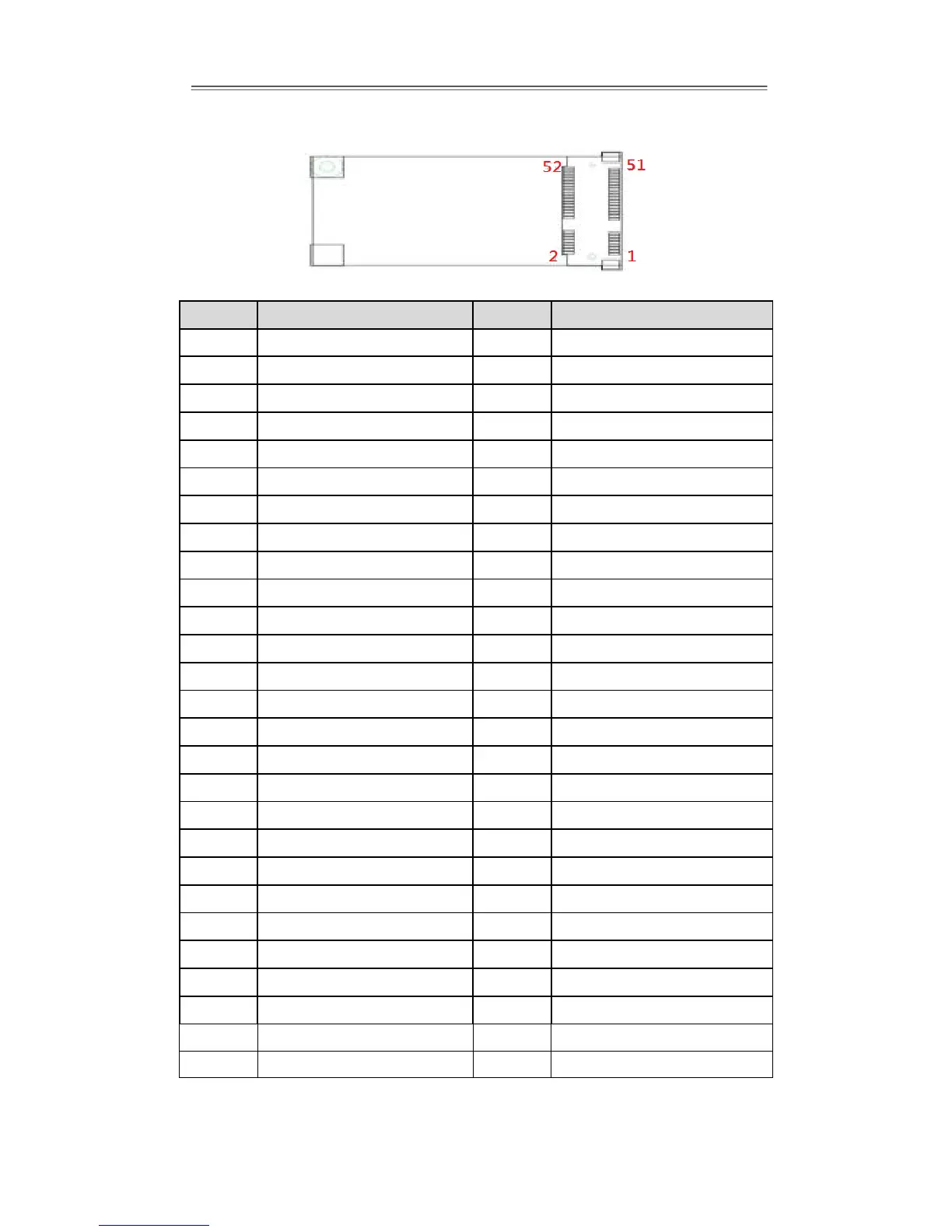

MINI PCIE2: WIFI
Pin №
Name
Pin №
Name
1
PCIE_WAKE#
2
3.3V
3
NC
4
GND
5
BT_EN
6
+1.5V
7
CLK_SLOT2_OE#
8
NC
9
GND
10
NC
11
CLK_PCIE_SLOT2_N
12
NC
13
CLK_PCIE_SLOT2_P
14
NC
15
GND
16
NC
17
NC
18
GND
19
NC
20
3G_EN
21
GND
22
PCIE_RESET
23
PCIE2_RXN2
24
+3.3V
25
PCIE2_RXP2
26
GND
27
GND
28
+1.5V
29
GND
30
SMB_CLK
31
PCIE2_TXN2
32
SMB_DATA
33
PCIE2_TXP2
34
GND
35
GND
36
USB_D-
37
GND
38
USB_D+
39
3.3V
40
GND
41
3.3V
42
NC
43
GND
44
NC
45
NC
46
NC
47
NC
48
+1.5 V
49
NC
50
GND
51
3.3V
52
3.3V
M1
GND
M2
GND
