IB70 Motherboard User Manual
32

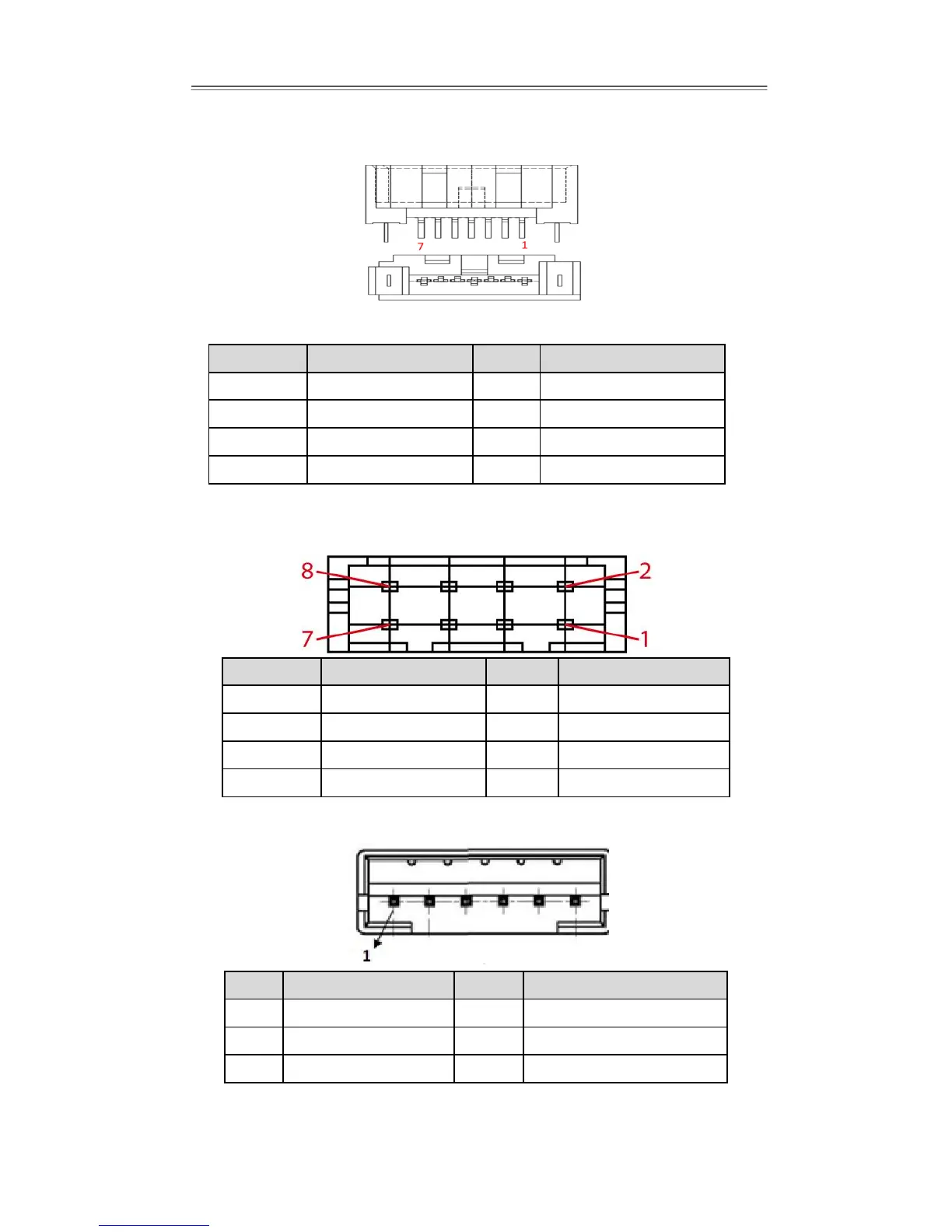

SATA1: SATA
SATA_PWR1: SATA Power
Pin №
Name
Pin №
Name
1
+12V
2
+12V
3
GND
4
GND
5
GND
6
GND
7
+5V
8
+5V
SIM1: Cable connector for SIM-100
Pin №
Name
Pin №
Name
1
GND
2
SATA_TXP
3
SATA_TXN
4
GND
5
SATA_RXN
6
SATA_RXP
7
GND
Pin №
Name
Pin №
Name
1
VREG_USIM
2
SIM_RESET
3
SIM_CLK
4
GND
5
SIM_VPP
6
SIM_DATA
