IB70 Motherboard User Manual
33

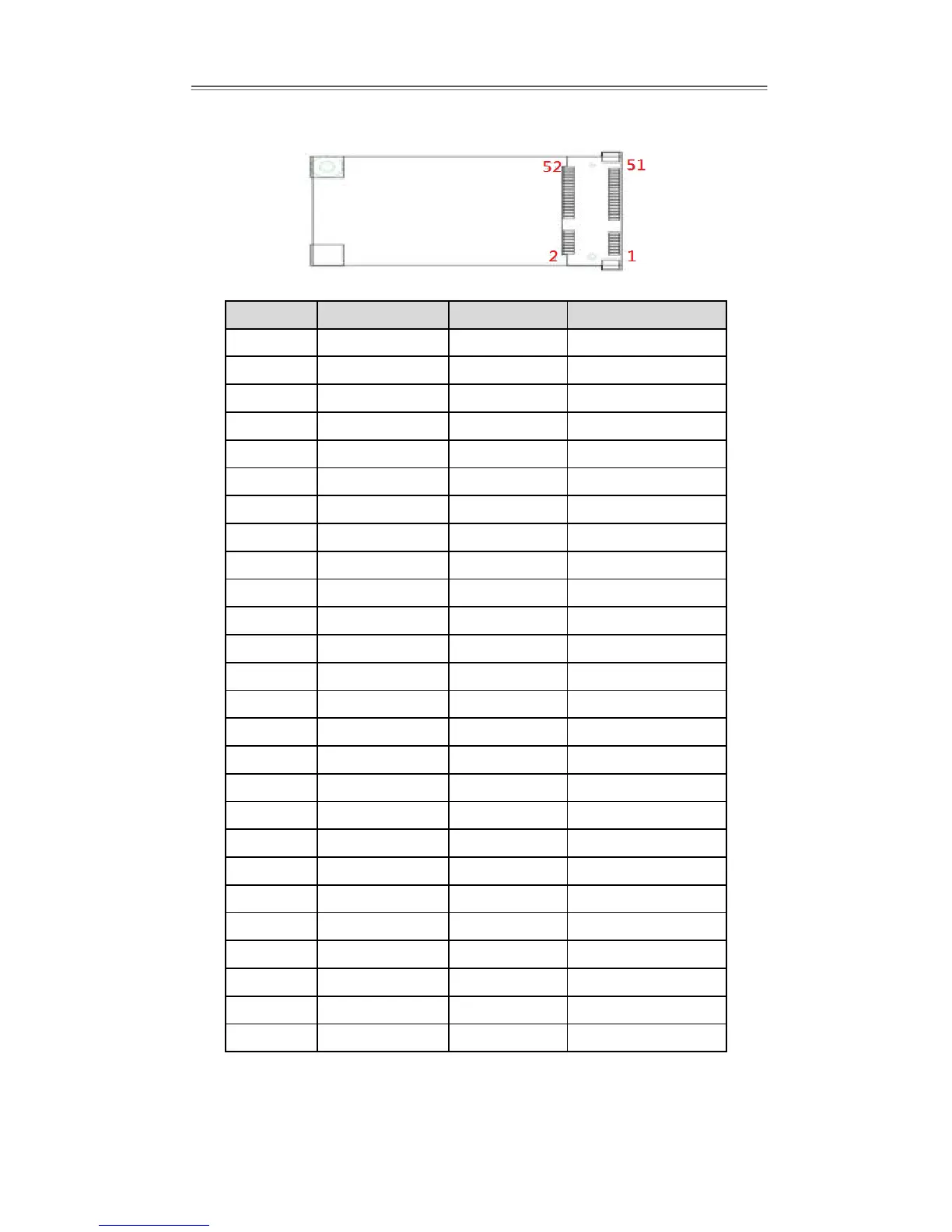

SSD1: mSATA
Pin №
Name
Pin №
Name
1
NC
2
+3.3V
3
NC
4
GND
5
NC
6
+1.5V
7
NC
8
NC
9
GND
10
NC
11
NC
12
NC
13
NC
14
NC
15
GND
16
NC
17
NC
18
GND
19
NC
20
NC
21
GND
22
NC
23
SATA_RXP
24
+3.3V
25
SATA_RXN
26
GND
27
GND
28
+1.5V
29
GND
30
SMB_Clock
31
SATA_TXN
32
SMB_Data
33
SATA_TXP
34
GND
35
GND
36
NC
37
GND
38
NC
39
+3.3V
40
GND
41
+3.3V
42
NC
43
GND
44
NC
45
NC
46
NC
47
NC
48
+1.5V
49
SSD_LED#
50
GND
51
NC
52
+3.3V
