IB70 Motherboard User Manual
34

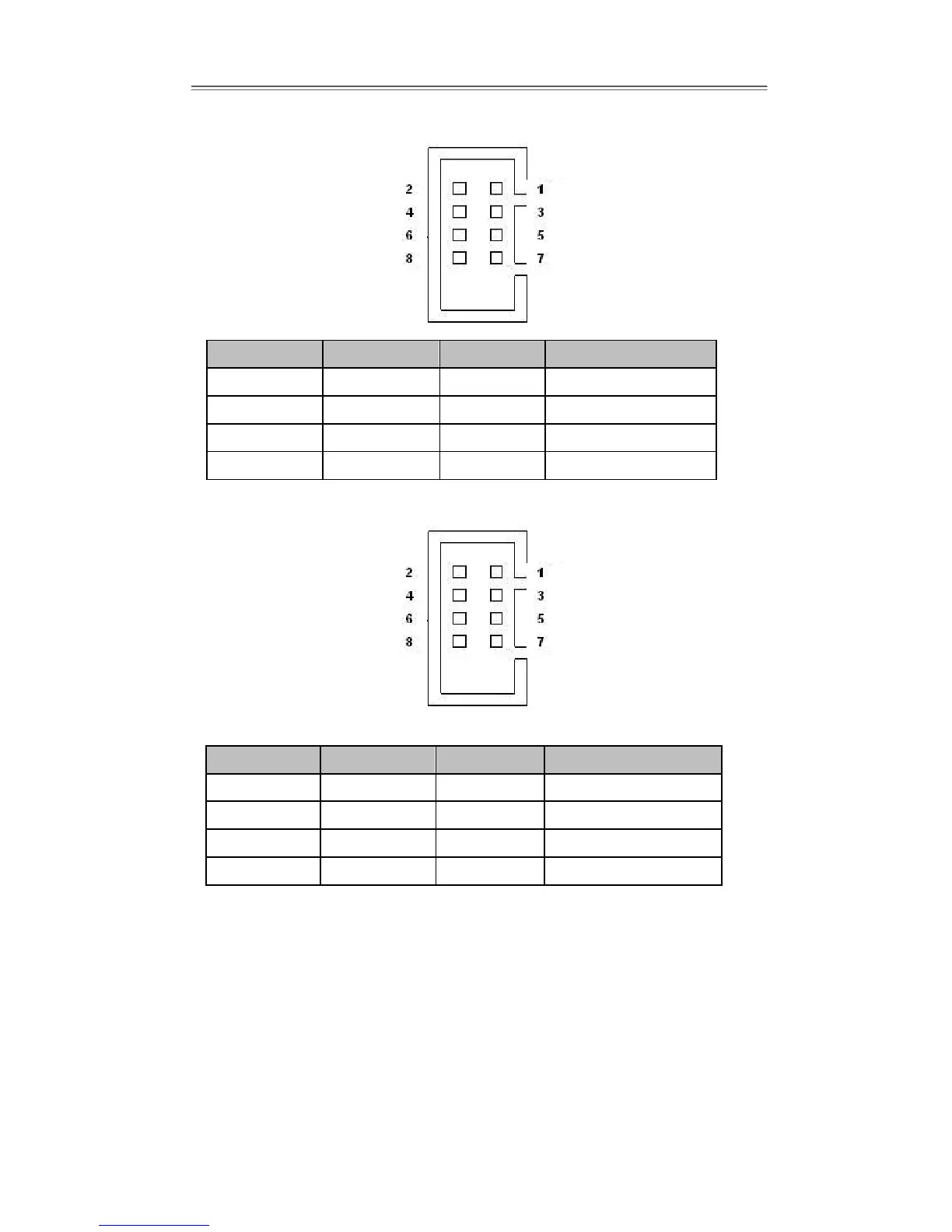

USB2: Internal USB2.0
USB3: Internal USB2.0
Pin №
Name
Pin №
Name
1
+5V
2
+5V
3
USB_D-
4
USB_D-
5
USB_D+
6
USB_D+
7
GND
8
GND
Pin №
Name
Pin №
Name
1
+5V
2
+5V
3
USB_D-
4
USB_D-
5
USB_D+
6
USB_D+
7
GND
8
GND
