SECTION 6 –
ELECTRICAL
6-6
Automatic Power Transfer Switch
Whenever the Generator is started, an
automatic power transfer system automatically
switches the household electrical system to the
Generator approximately 30 seconds after the
Generator is started. The 30 second delay allows
the Generator to start easily without the burden of
electrical loads.
The following label is located near the 120-
volt house circuit breaker panel and at the
Generator to warn you to disconnect specific
electrical connections before servicing the
Generator and storing the coach.
Generator Basic Operation
NOTE: If the GenSet Start or Stop switch is
momentarily pressed, the monitor panel
will automatically try to start or stop the
Generator. It will try 4 times (10 second
crank, 10 second rest).
To Start the Generator
Press and Hold the GenSet Start button until
you hear the Generator running smoothly, then
release.
To Stop the Generator
Press and Hold the GenSet Stop button until
you hear the Generator come to a full stop, then
release.
Generator Hourmeter
The Generator hourmeter registers the total
number of hours that the Generator has been
operated. Press the GenSet Meter button once to
get reading.
Refer to the hourmeter to determine when
periodic maintenance is due and to record
services which have been performed.
Do not plug the power cord into the
generator receptacle while the generator
is running. Electrical shock can cause
personal injury.

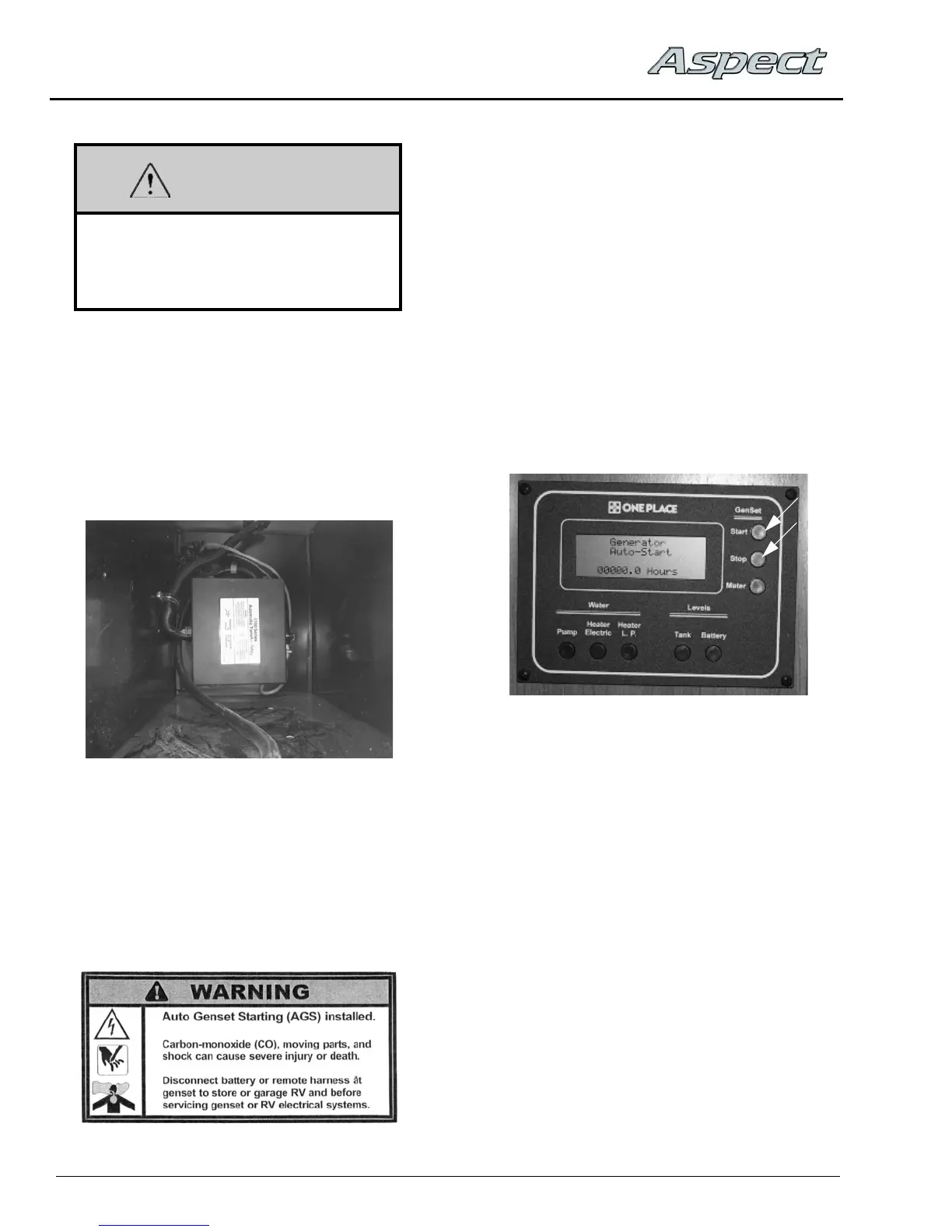

Automatic Power Transfer Box
(Located inside utility compartment)
-Typical installation shown
Generator Start/Stop Buttons
(Located on monitor panel)
-Typical View
