TV DIGITAL SATELLITE
SYSTEM WIRING
Your coach is pre-wired for installation of a
digital satellite TV system. Coaxial cable and
high definition component cable connections are
available to hook up your satellite receiver and
are located in the entertainment center cabinet.
A second connection may be included inside a
cabinet in the bedroom for the rear TV (if
equipped).
See your authorized Winnebago Industries
®
dealer for proper installation and sealing of roof
mounted components.
TV DIGITAL SATELLITE
SYSTEM – MANUAL
–If Equipped
The Digital Satellite Television System
allows you to receive TV programs directly from
satellite to your coach.
We recommend that you read the satellite dish
manual thoroughly to understand the system
completely before attempting any setups or
adjustments.
• The coach must be level before attempting to
adjust the antenna dish.
• There must be a clear “line of sight” to the
satellite. Mountains, buildings, trees,
telephone poles and other obstructions can all
block the satellite signal from reaching the
dish.
• Determine which TV you want to use (e.g.
BEDROOM for bedroom TV) and select
“SAT” from the Video Selection Box.

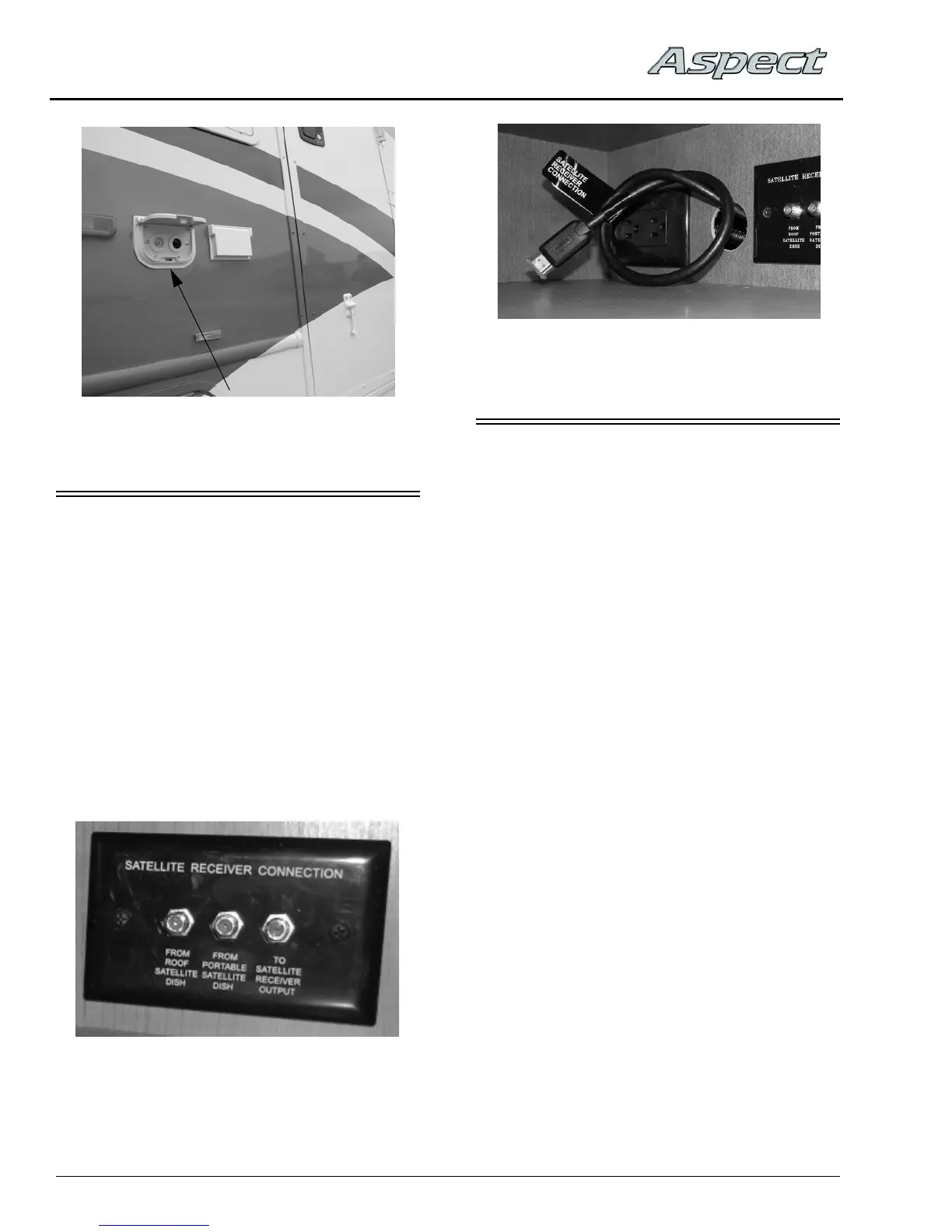

Exterior Cable TV / 12-Volt Connection
(Located near entrance door)
-Typical View
Interior Connection for Satellite Dish
(Located near entertainment center cabinet)
-Typical View
HDMI Cable
(Located near entertainment center cabinet)
-Typical View
