Connection diagram GS 630
46 English

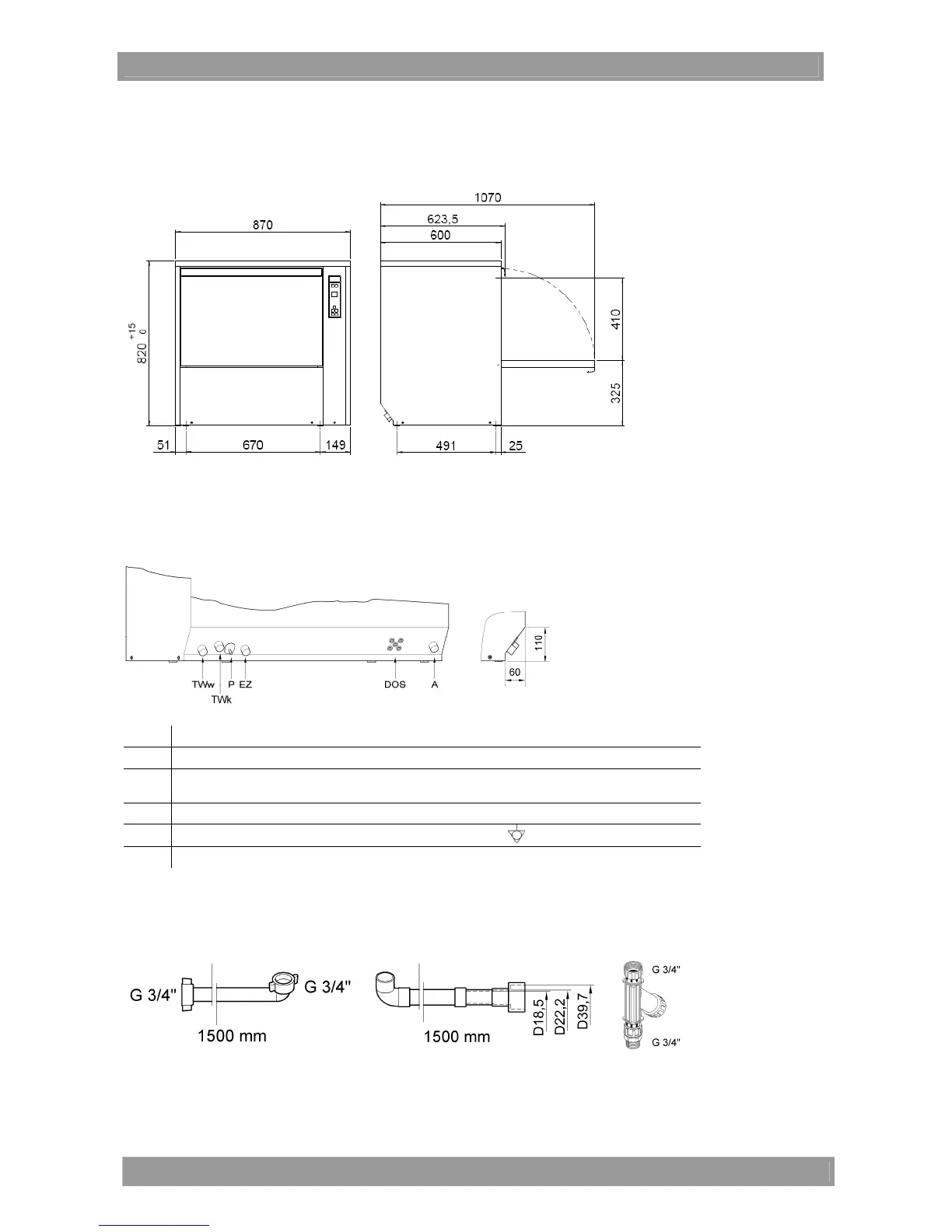

17 Connection diagram GS 630
Dimensions
The machine height decreases by 4 mm when the feet are turned in completely.
For niche dimensions for the installation of the machine into a counter, see page 48.
Position of the connections (rear view) Side view
DOS
Port for hoses (detergent / rinse aid / defoamer) and cables
TWw Drinking water connection (G ¾“, external thread)
TWk
Drinking water connection (G ¾“, external thread) (only in case of machines
with cold water pre- wash (optional)
EZ Electrical connection cable
P Connection for local equipotential bonding system ( )
A Waste water connection; drain pump installed
Accessories
Flexible supply hose;
Connect to point TWw / TWk
Flexible drain pipe;
connect to point A
Dirt trap;
Install it between the water shut-off
valve and the supply hose
Local requirements
See page 47
